OWP Series Electric Coolant Pump for Data Center GPU Array Liquid-cooled

# OWP-D-250LT-24-P38 High-Efficiency BLDC Coolant Pump: Specs, Uses & Advantages

The OWP-D-250LT-24-P38 is a industrial-grade brushless DC (BLDC) coolant pump engineered for high-performance thermal management. Built to withstand extreme conditions, it is a top choice for EVs, data centers, and industrial systems requiring reliable fluid circulation—addressing global demand for energy-efficient, long-lasting cooling solutions.

## Working Principle

This pump operates as a **single-stage centrifugal pump** with **magnetic force transmission** (shield pump structure), eliminating leakage risks and ensuring sealed performance. Its high-efficiency BLDC motor reduces power consumption while delivering consistent flow, supported by professional electromagnetic theory design for optimal energy use. Key protections include: constant flow control, reverse polarity protection, dry running protection, and over-voltage/current/load/temperature safeguards—preventing damage in harsh operations. PWM speed regulation allows flexible flow adjustment, adapting to dynamic cooling needs, while an IP67 waterproof rating (per EN60529) ensures dust and water resistance.

## Key Applications

The OWP-D-250LT-24-P38 is versatile across thermal management scenarios, including:

- Electric Vehicle (EV) systems: Motor cooling, controller cooling, battery thermal management, and high-power charging station cooling

- Data & computing: Immersion cooling, large-scale GPU cooling, and supercomputer cooling

- Industrial & energy: Fuel cell cooling, battery energy storage (BESS) cooling, glycol circulation boosting, and industrial cooling systems

- Telecommunications: Communication base station cooling

- Automotive: Turbocharger intercooler circulation and antifreeze circulation

## Core Advantages

What sets this pump apart from competitors:

1. **Higher efficiency**: 3-5% better motor efficiency (via professional electromagnetic verification) and optimized hydraulic performance (via simulation-based impeller/volute matching).

2. **Extreme durability**: Automotive-grade electronic components resist harsh environments; >20,000-hour service life (at rated voltage and 36℃ ambient temperature).

3. **Wide adaptability**: Handles media like 50-60% glycol-water mixtures, dielectric oil, and electronic fluorinated solutions; operates at -40℃ to +85℃ (medium/ambient temperature).

4. **Low noise & reliability**: ≤60dB noise levels for quiet operation, with SUS 304 stainless steel fasteners and PPA GF motor windings for corrosion resistance.

## Technical Specifications Table

| Parameter | Details |

|--------------------------|------------------------------------------|

| Model No. | OWP-D-250LT-24-P38 |

| Power Input | 24VDC (18-32VDC) |

| Rated Power | 240W |

| Rated Flow Rate | 2400L/H @ H=17M |

| Max Flow | 4800L/H |

| Max Lift Head | 20M |

| Medium | Glycol (50-60%)+water, dielectric oil, electronic fluorinated solution |

| Operating Temp Range | -40℃ to +85℃ (-40°F to +185°F) |

| Outlet Diameter | 38mm (1.5inch) |

| Speed Regulation | PWM |

| IP Grade | IP67 (EN60529) |

| Noise Level | ≤60dB |

| Service Life | >20000 hours (rated conditions) |

| Weight | 2200g |

| Connector Model | AMP282106-1 (matched plug: AMP282088-1) |

## Target Markets

Primary markets for the OWP-D-250LT-24-P38 include:

- Global EV manufacturers (passenger, commercial, and heavy-duty trucks)

- Battery energy storage system (BESS) providers

- Data center operators (hyperscale and enterprise)

- Industrial cooling equipment manufacturers

- Fuel cell vehicle (FCV) and hydrogen energy industries

- Telecommunication infrastructure suppliers

This pump meets the growing need for sustainable, high-reliability thermal management in electrified and digital industries.

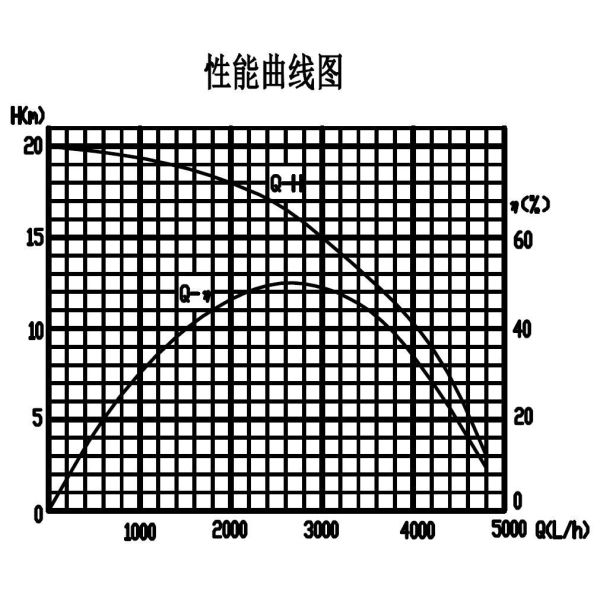

Performance Curve

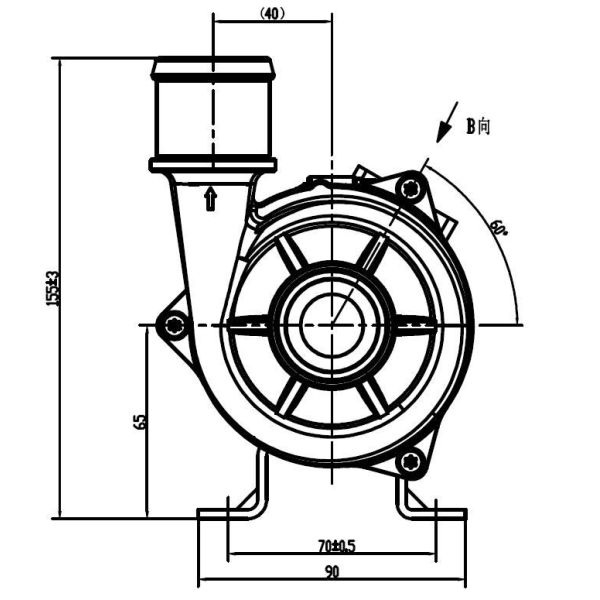

Overall Dimensions
