Pump Major Parameters

Model No.:OWPD240LT-24-F50

Power Input:24VDC(18-32VDC)

Rated power:240W

Rated Flow rate :2400L/H @ H=17M

Max Flow:5000L/H

Max Lift Head:20M

---------------------------------------------------------------------------

Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution

Medium temperature:

Working long hours guaranteed

-40℃ to +85℃ (-40°F to + 185°F)

Outlet diameter: 50.5mm(Flange)

Speed regulation:Yes

Fault Feedback signal:Yes

IP Grade:IP67

Noise control:≤60dB

Service life:＞20000hours

Weight: 2200g

Features

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection

◆Overload, over temperature protection

◆Single-stage Centrifugal pump

◆Magnetic force transmission (shield pump structure)

◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.

◆With wide range operating temperature

◆Speed controlling

Driving device (Including motor)

◆Driving electromagnet: nylon plastic capsulated magnet

◆Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

◆Waterproof based on IP67 rating (en60529)

◆Connector model: AMP282106-1 (Matched plug AMP282088-1)

◆Nozzle size: 50.5mm(Flange)

◆Motor winding frame :PPA GF

◆Pump housing: Aluminum

◆Bracket: Steel

◆Bracket hoop: Rubber

System pressure

-0.5-4 Bar ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%

Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)

Pump Applications

Medium: Glycol, mineral oil, fluorinated liquids, etc.

Common Liquid Cooling Methods:

1.Cold plate(direct contact with GPU/CPU heat sources)

2.Immersion cooling

Equipment:

1.High-Performance Servers

(AI training/interface servers, HPC servers, high-density general-purpose servers)

2.High-Density Blade Servers

(High-density computer rooms of large internet enterprises and cloud service providers)

3.High-Density Storage Servers/Arrays

(Cloud computing storage nodeds, enterprise-level SAN/NAS arrays)

4.All-Flash Arrays(AFA)

(Financial transactions, database acceleration)

5.Network Equipment High-Density Switches

(Spine-Leaf Architeture Switches)

6.High-End Routers/Firewalls

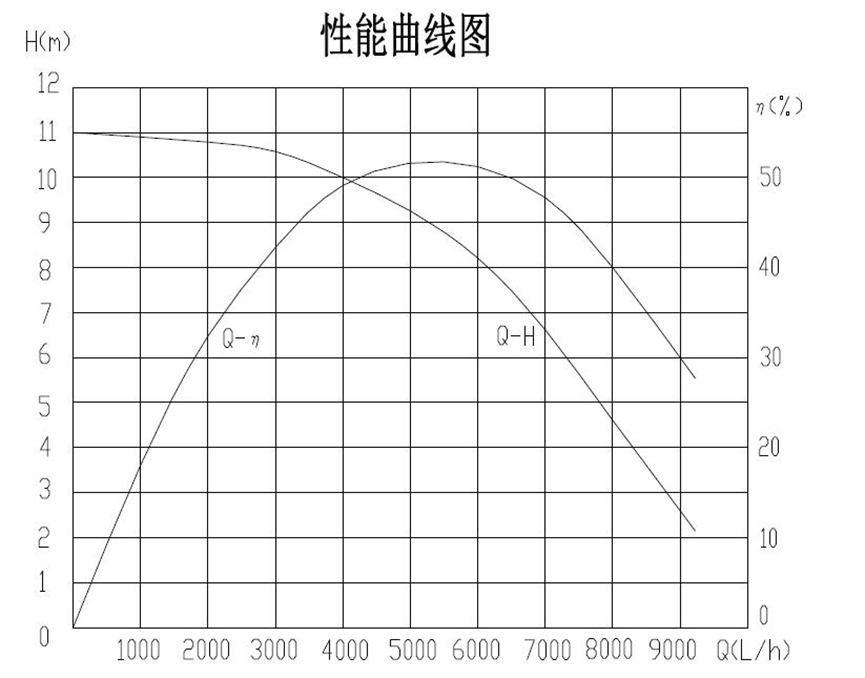

Performance

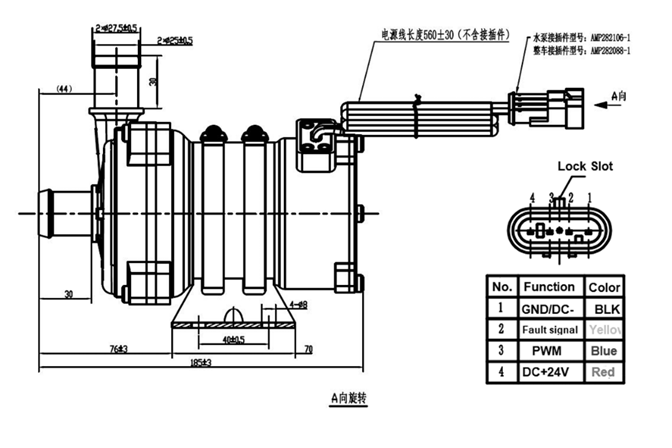

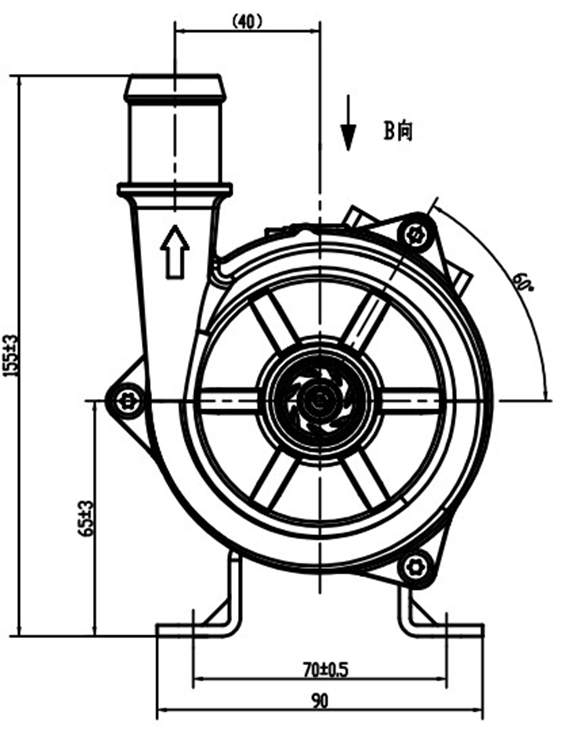

Pump overall size

Our clients come from 36 countires with high reputation in their fields.

Pump Advantages

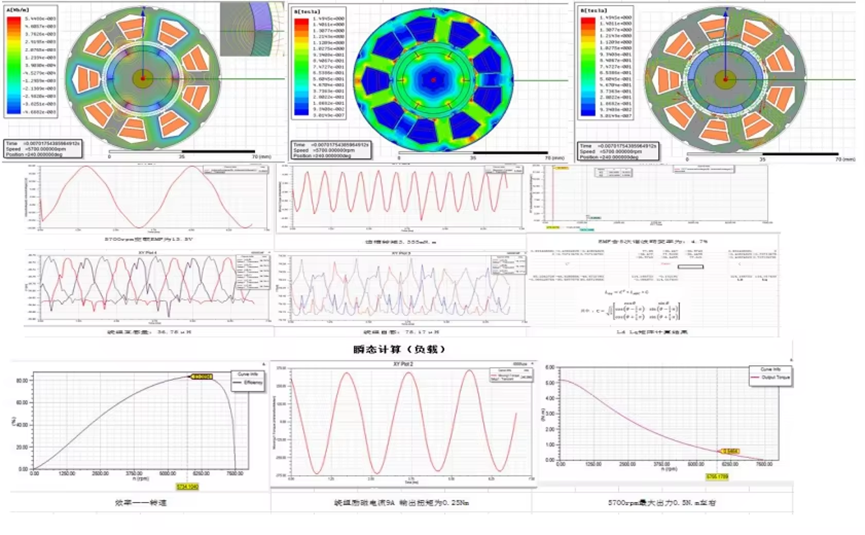

Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.

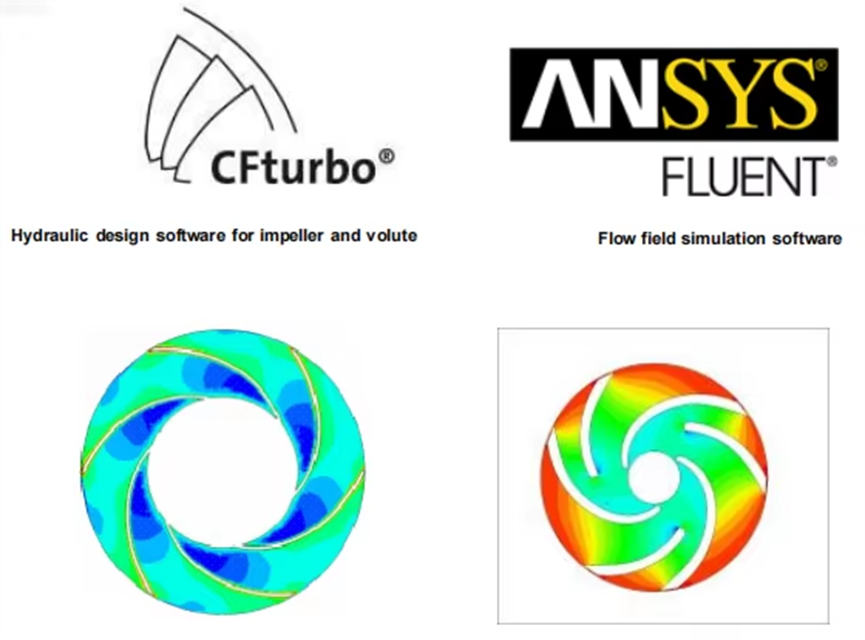

Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others
