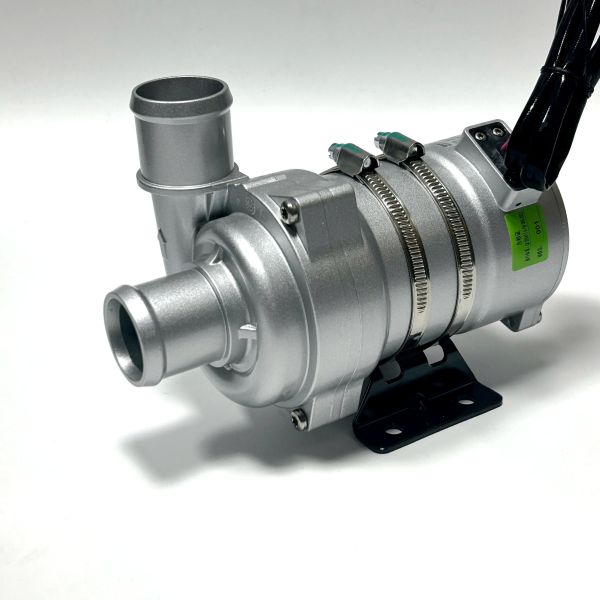

The OWP-BL43-300 Electric Coolant Pump is an advanced thermal management solution, engineered with cutting-edge features to deliver reliable, long-term performance. Its high-efficiency brushless DC motor, magnetic force transmission (shield pump structure), and comprehensive protection mechanisms—including reverse polarity protection, dry running protection, over-voltage/over-current protection, and overload/over-temperature protection—ensure stable operation. Equipped with constant flow control and PWM speed regulation, it stands out as a versatile, durable option for industrial cooling needs, with exceptional suitability for data center immersion cooling systems.

In modern data centers, the rapid expansion of cloud computing, artificial intelligence, and big data processing has led to servers generating unprecedented levels of heat. Traditional air-cooling systems often struggle to manage this heat efficiently—resulting in wasted energy, reduced server performance due to thermal throttling, and heightened risks of hardware failure. Immersion cooling, which submerges servers in a non-conductive, heat-absorbing coolant, has emerged as a game-changing solution to these challenges, and the OWP-BL43-300 pump serves as the critical backbone of this system, ensuring it operates at peak efficiency.

First, the pump’s robust flow capabilities are essential for maintaining consistent coolant circulation. With a maximum flow rate of 9000L/H and a rated flow rate of 6000L/H @ 8M head, it prevents stagnant coolant in immersion tanks— a common issue that creates hotspots around high-power components like CPUs and GPUs. These hotspots not only degrade server performance but also shorten hardware lifespan. By ensuring rapid, uniform coolant movement across every server component, the OWP-BL43-300 efficiently absorbs heat and transfers it to heat exchangers for dissipation. This continuous circulation keeps server temperatures within the optimal range (typically 35-45℃), eliminating thermal throttling and preserving maximum computing power.

Second, its wide operating temperature range (-40℃ to +85℃) makes it highly adaptable to the dynamic conditions of immersion cooling setups. Data centers often experience temperature fluctuations due to varying workloads—such as peak processing hours versus off-peak periods—or seasonal environmental changes. The pump’s ability to perform reliably in extreme cold and heat eliminates the risk of shutdowns caused by temperature swings, which could disrupt cooling systems and damage critical server hardware.

Additionally, the pump’s IP68 ingress protection rating is a non-negotiable advantage for immersion environments. Unlike standard pumps, which would fail quickly if exposed to liquid, the OWP-BL43-300’s fully sealed design prevents coolant from entering internal components—including the brushless motor and electronic controls—protecting them from corrosion and short circuits. This durability is vital for 24/7 data center operations, as pump failures would require costly downtime to repair or replace, disrupting client services and incurring financial losses.

The pump’s low noise level (≤60dB) also supports sustainable, compliant data center operations. Many data centers are located near urban or residential areas, where excessive noise can lead to regulatory non-compliance. The OWP-BL43-300’s quiet performance helps meet noise standards while creating a more manageable workspace for on-site technicians. Furthermore, its extended service life (over 20000 hours) reduces maintenance frequency—a key priority for data centers that rely on high uptime, as unscheduled maintenance can interrupt critical computing services.

Finally, the pump’s PWM speed control offers flexibility for optimizing energy use. During low-workload periods (e.g., nighttime), data center managers can reduce the pump’s speed to lower energy consumption, cutting operational costs. During peak hours, increasing the speed ensures cooling capacity matches heightened heat generation, balancing efficiency and performance. This adaptability makes the OWP-BL43-300 a cost-effective, future-ready choice for data centers looking to enhance both cooling effectiveness and sustainability.

The OWP-BL43-300 outperforms competing coolant pumps in three key areas, making it a top choice for data centers and industrial applications. First, its brushless DC motor is developed through professional electromagnetic theory design verification, delivering 3-5% higher efficiency than comparable pumps. This enhanced efficiency reduces energy consumption, lowering operational costs and supporting data centers’ sustainability goals. Second, the pump’s impeller and volute are optimized using professional hydraulic simulation software, ensuring the perfect component match for superior hydraulic efficiency. This optimization enhances coolant circulation speed and heat transfer, further improving cooling performance. Third, the use of automotive-grade electronic components enables the pump to withstand extreme harsh operating environments—including temperature fluctuations and prolonged coolant exposure—that would damage standard pumps. This rugged construction ensures consistent, reliable operation even in the most demanding immersion cooling setups. Combined with its comprehensive protection features and long service life, these advantages make the OWP-BL43-300 a high-performance, cost-effective solution for critical cooling needs.

Performance Curve

Oervall Size
