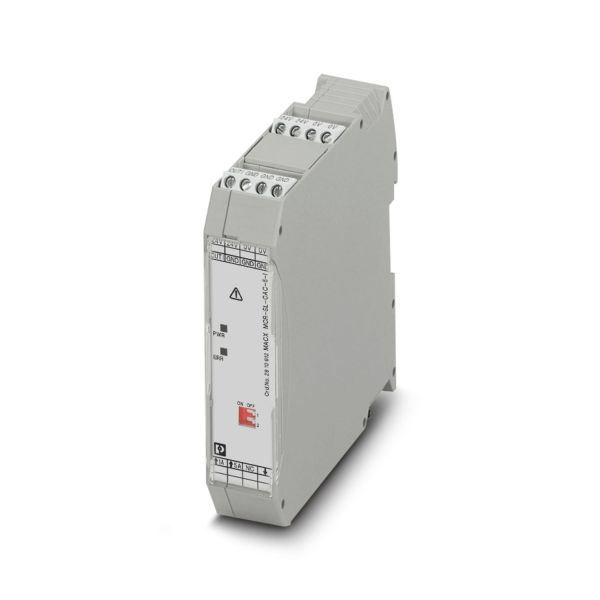

Phoenix Contact Original 2810612 MACX MCR-SL-CAC- 5-I - Current measuring transducer
Phoenix Contact Original 2810612 MACX MCR-SL-CAC- 5-I - Current measuring transducer
Phoenix Contact Original 2810612 MACX MCR-SL-CAC- 5-I - Current measuring transducer
Phoenix Contact Original 2810612 MACX MCR-SL-CAC- 5-I - Current measuring transducer
Specifications
Brand Name :
Phoenix Contact
Model Number :
MACX MCR-SL-CAC- 5-I
Certification :
UL,CSA,EAC...
Place of Origin :
de
MOQ :
1
Price :
$115-$155
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Product type :
Current measuring transducer
Product Name :
Power supply
Connection method :
Screw connection
Width :
22.5 mm
Height :
104 mm
Depth :
104 mm
Description
Phoenix Contact Original 2810612 MACX MCR-SL-CAC- 5-I - Current measuring transducer

Current measuring transducer for 1 A and 5 A AC, the output signal 0...20 mA or 4...20 mA, can be configured using a DIP switch with an operating mode indication through an LED

Specifications
Maximum power dissipation for nominal condition 1.2 W
Protective circuit Surge protection; 35 V suppressor diode
Step response (10-90%) ≤ 300 ms
200 ms
Maximum temperature coefficient < 0.02 %/K
Temperature coefficient, typical < 0.015 %/K
Maximum transmission error ≤ 0.5 % (of nominal range value under nominal conditions)
Reverse polarity protection yes
Rated insulation voltage 300 V AC (to earth)
Test voltage 4 kV AC (50 Hz, 60 s)
Test voltage 2 kV AC (50 Hz, 60 s)
Nominal supply voltage 24 V DC -20 % ... +25 %
Supply voltage range 19.2 V DC ... 30 V DC
Max. current consumption < 32 mA (at UB=24 V DC, IOUT=20 mA)
Power consumption < 0.9 W (at UB=24 V DC, IOUT=20 mA)
Configurable/programmable Via DIP switches
Input current range 0 A AC ... 1 A AC (configurable)
0 A AC ... 5 A AC (configurable)
Voltage input signal ≤ 300 V AC
Input impedance < 50 mΩ
Overload capacity 2 x IN (continuous)
Surge strength 20 x IN (1 s)
Nominal frequency fN 50 Hz
Frequency measuring range 45 Hz ... 65 Hz
Curve type Sine
