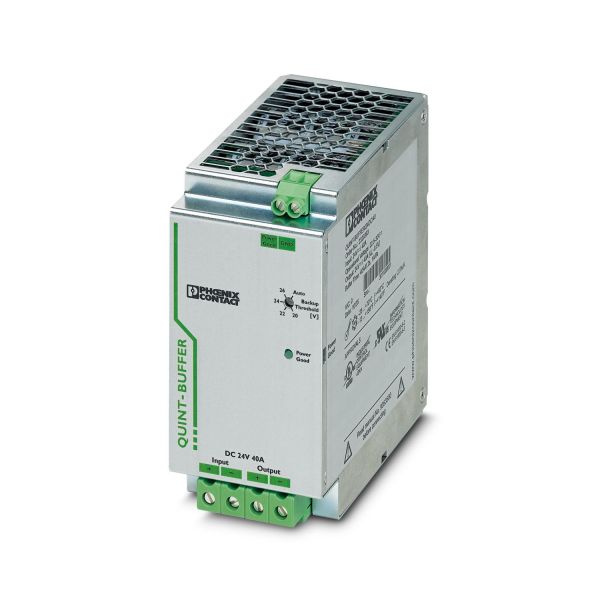

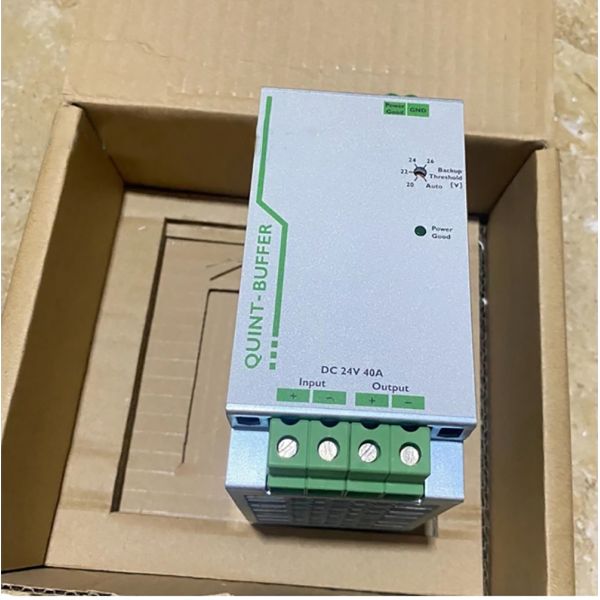

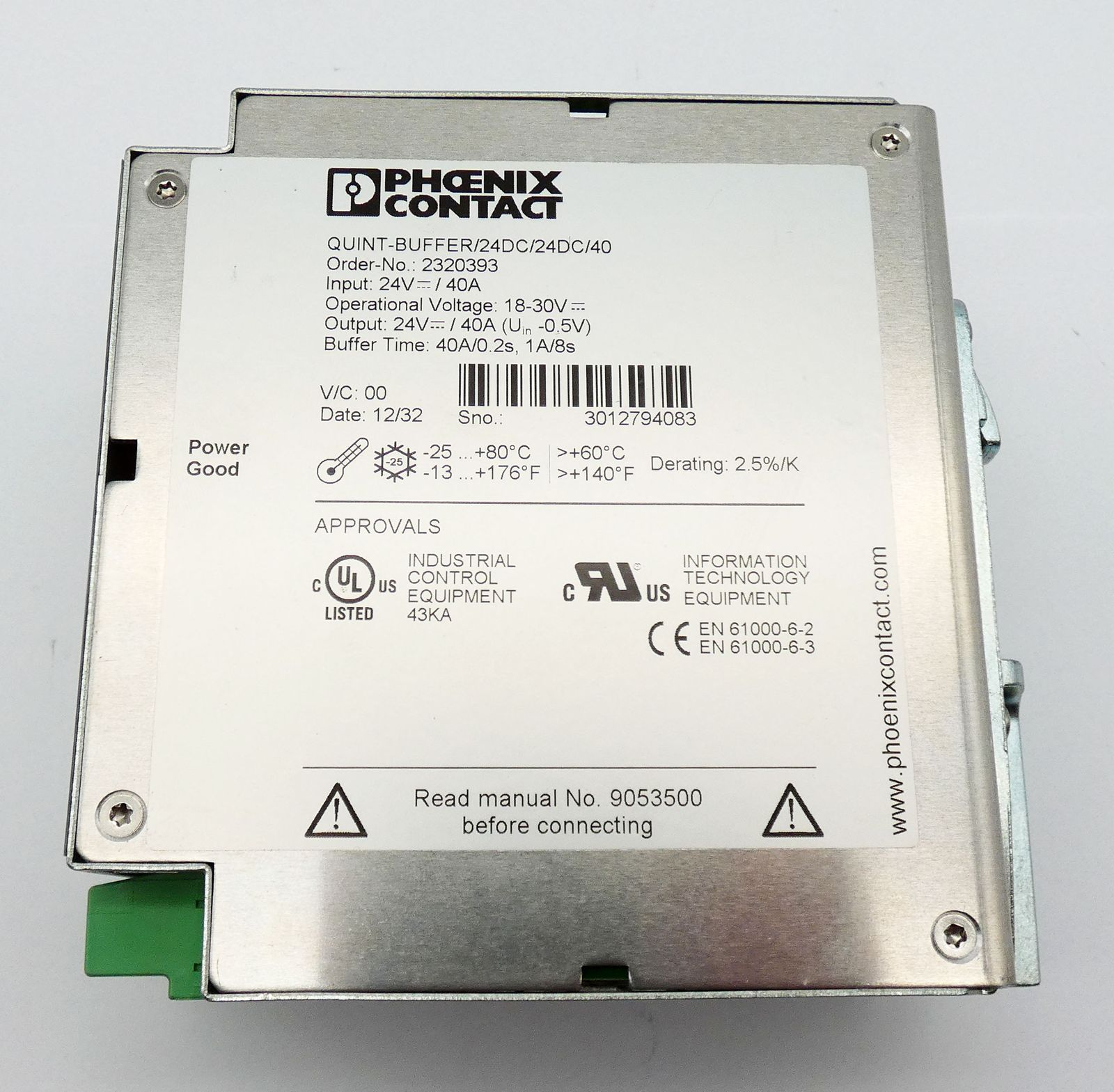

Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module
Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module
Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module
Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module
Specifications
Brand Name :
Phoenix Contact
Model Number :
QUINT-BUFFER/24DC/24DC/40
Certification :
UL,CSA,EAC...
Place of Origin :
CN
MOQ :
1
Price :
$200-$220
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Product Name :
Power supply
Product family :
Buffer module
input :
24 V DC
decoupled output :
24 V DC/40 A
Connection method :
Screw connection
Conductor cross-section, rigid min. :
0.5 mm²
Conductor cross-section, rigid max. :
16 mm²
Conductor cross-section flexible min. :
0.5 mm²
Description
Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module

QUINT buffer module with maintenance-free capacitor-based energy storage for DIN rail mounting, decoupled input: 24 V DC, decoupled output: 24 V DC/40 A, with integrated SFB (Selective Fuse Breaking) Technology, including mounted UTA 107 universal DIN rail adapter

Specifications
Input voltage 24 V DC
Input voltage range 18 V DC ... 30 V DC
Input voltage range DC 18 V DC ... 30 V DC
Voltage type of supply voltage DC
Buffer period 0.2 s (40 A)
8 s (1 A)
Current consumption 0.1 A (No-load)
0.7 A (charging process)
45 A (Conduction current)
Reverse polarity protection yes
Charging delay no
Fixed backup threshold < 20 V DC (< 22 V; < 24 V; < 26 V)
Variable connect threshold (UIN - 1 V)/0.1 s
Protective circuit Transient surge protection
Efficiency > 99 % (Mains operation, with charged energy storage)
Nominal output voltage 24 V DC (depending on the input voltage)
Nominal output current (IN) 40 A
Output current limit 45 A (According to current limitation of the power supply connected upstream)
Selective Fuse Breaking (ISFB) 120 A (12 ms)
Derating 60 °C ... 80 °C (2.5 %/K)
Output power max. 960 W
Power loss nominal load max. 8 W
Power dissipation battery operation 48 W
Power dissipation 8 W (Normal operation)
48 W (buffer mode)
Protective circuit Transient surge protection
Connection in parallel yes, for increasing the buffer time and for redundancy
Connection in series no
Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module Phoenix Contact 2320393 Original Brand New QUINT-BUFFER/24DC/24DC/40 - Buffer module
