2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner
2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner
2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner
2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner
Specifications
Brand Name :
Phoenix Contact
Model Number :
MACX MCR-UI-UI-UP-NC
Certification :
UL,CSA,EAC...
Place of Origin :
DE
MOQ :
1
Price :
$200-230
Payment Terms :
T/T
Supply Ability :
800000
Delivery Time :
3-5work days
Packaging Details :
carton box
Packing unit :
50 pcs
Minimum order quantity :
50 pcs
Weight per piece (including packing) :
193.3 g
Brand :
Phoenix Contact
Product type :
Multi-conductor terminal block
Country of origin :
DE
Product family :
PT
Width :
12.5 mm
Height :
112.5 mm
Depth :
113.7 mm
Description

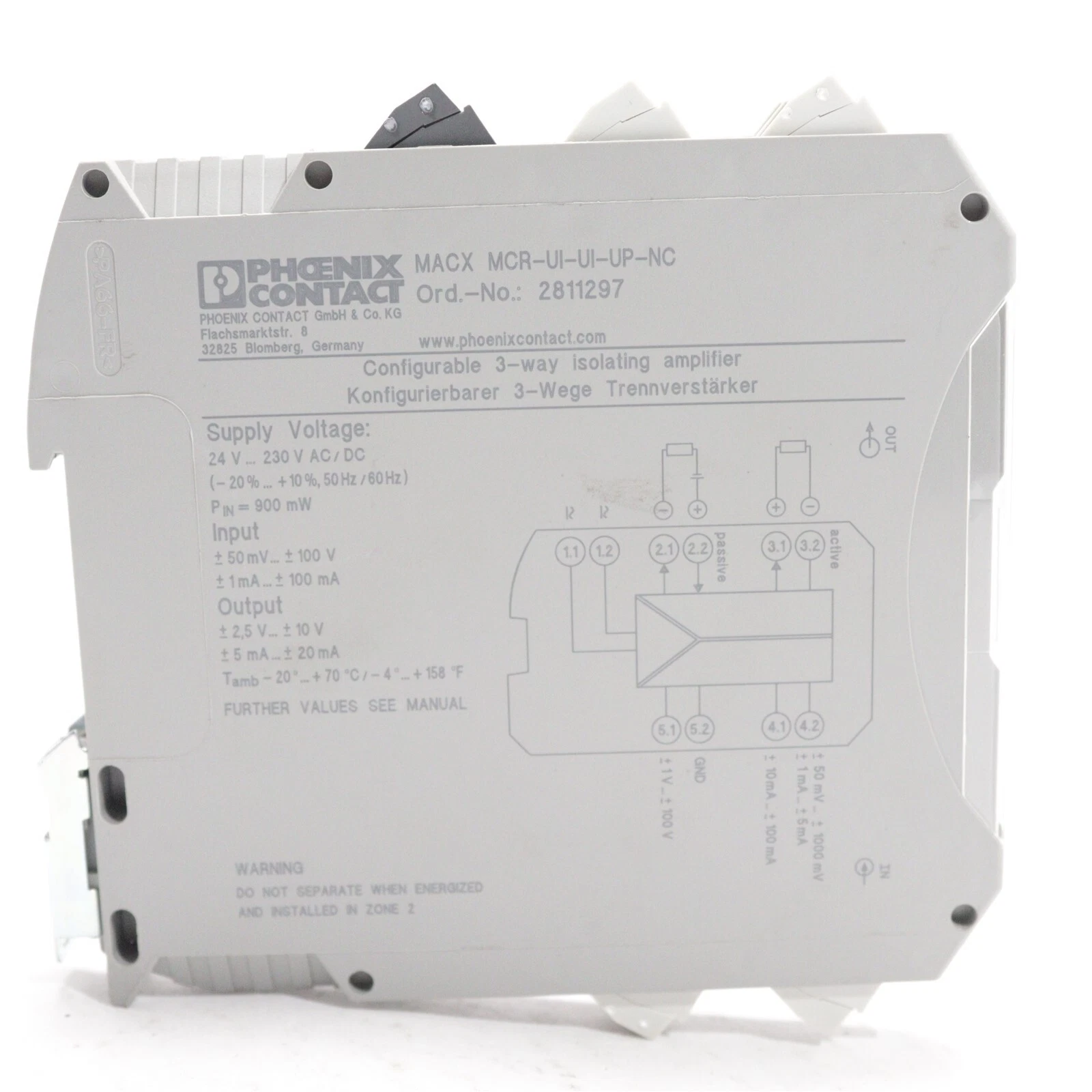

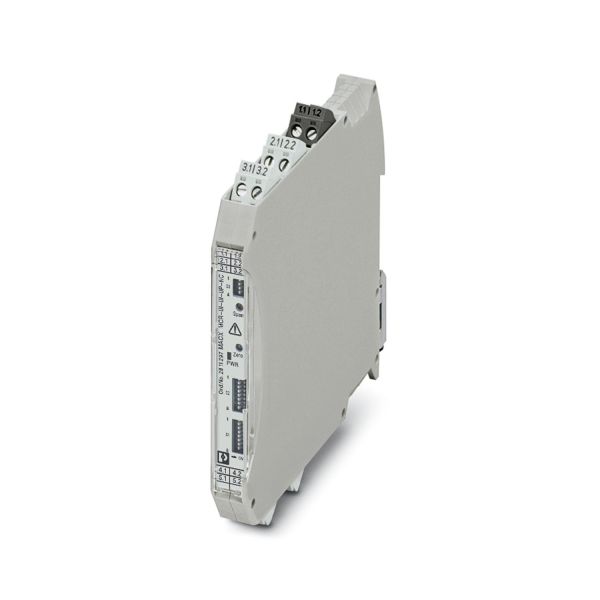

2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner

Isolating amplifier with safe electrical isolation and wide-range power supply (24 V ... 230 V AC/DC). DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), screw connection, SIL.

Specifications
Product type Input signal conditioner
Product family MACX Analog
No. of channels 1
Alignment span ± 4 %
Alignment zero ± 4 %
Electrical isolation between input and output yes
Limit frequency (3 dB) 10 kHz (Can be switched to 30 Hz)
Maximum power dissipation for nominal condition < 0.9 W (20 mA)
Protective circuit Transient protection
Step response (10-90%) 35 µs (10 kHz)
11 ms (30 Hz)
Maximum temperature coefficient 0.0075 %/K
Maximum transmission error ≤ 0.1 % (Compared to the final value)
Test voltage 2.5 kV AC (50 Hz, 60 s)
Overvoltage category II
Pollution degree 2
Standards/regulations IEC/EN 61010-1
Rated insulation voltage 300 Vrms
Insulation Safe isolation
Nominal supply voltage range 24 V AC/DC ... 230 V AC/DC -20 % ... +10 % (50/60 Hz)
Supply voltage range 19.2 V AC/DC ... 253 V AC/DC (50/60 Hz)
Power dissipation < 0.8 W (at 24 V DC / 20 mA)
< 0.9 W (At 230 V AC / 20 mA)

2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner

COMPANY PROFILE
2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner
WHY CHOOSE US?

2811297 Phoenix Contact Original Relay Terminal Connector MACX MCR-UI-UI-UP-NC - Input signal conditioner

•Original&New •Fast delivery •Best price&Low MOQ •Professionalafter-sales service

FAQ

1. who are we?

We are based in NanJing City, JiangSu Province China, Start from 2018,sell to Mid East,Southeast Asia,North America,Domestic Market,South Asia,Eastern Asia,,Africa,. There are total about 11-50 people in our office.

2. how can we guarantee quality?

All of goods are from Original Brand New Phoenix Contact, and Provide Video-call, Picture confirmation before shipment. Always final Inspection before shipment;

3.what can you buy from us?

Terminal blocks/Relay/Power Supply....

4. why should you buy from us not from other suppliers?

Professional in instruments over 10 year. Covering many famous brands such as Phoenix Contact/Weidmuller/WAGO..... Cusutomers all over the world,south east of Asia,Middle East.....

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,Credit Card,PayPal,

Shipment:We can ship these goods to you by sea &air,DHL,UPS,FEDEX,TNT.......
  1. It will takes about 20-25days if by sea.
  2. It will takes about 5-7days if by air.
  3. By DHL,UPS,FEDEX,TNT,It will takes about 4-6 working days except festival and holiday.
