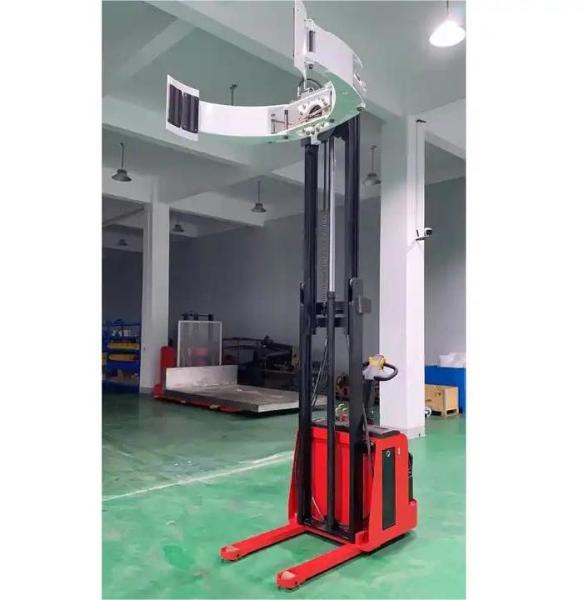

Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp
Specifications
Brand Name :
KAD
Model Number :
SW -B-BJ-07
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄7300-＄7500 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Product name :
Clamp electric stacker
Load weight :
500-1500kg
Load height :
1500-3000mm/customized
Load Center :
500mm
Turning radius :
1520mm
Clamping diameter range :
400-1500mm
Battery Capacity :
24V/210Ah
Color :
Green/Red/Yellow/Customized
Description
Product Description

Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp

The Full Electric Clamp Electric Stacker boasts zero-emission electric power, promoting sustainability and cleanliness in any workspace. The clamp design provides unparalleled load security, ensuring safe and stable material handling. The stacker's advanced control system ensures precise and efficient lifting, enhancing overall productivity. Its low-maintenance design and durable electric components minimize downtime and maintenance costs. Additionally, its compact and agile construction allows for seamless navigation in confined spaces, optimizing space utilization.

Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp

Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp

Rotating 180 360 degrees Full Electric Clamp Electric Stacker 1000kg 1500mm with Paper Roll Clamp

Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

Specification
Rated load
kg
500/1000/1500
Max height of clamp
mm
1500/3000/customized
Min height of clamp
mm
100
Load center
mm
500
Operation way
Electric moving, lifting, rotating, graping
Turning radius
mm
1520
Aisle width
mm
2500
Length
mm
1900
Width
mm
810
Height
mm
1900
Mast
1-stage/2 stage
Adjustable extent of clamp
mm
700-1200
Rotation angle
°
90/180/360
Running speed (load/unload)
km/h
4.3/4.5
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
(load/unload)
%
5/8
Braking mode
Electronic brake
Tyres,material
Pu
Hydraulic motor
kw
2.5kw
Battery
v/ah
24/210Ah
Charger
v/a
24v/30
Weight
kg
1000

Advantages of Electric Paper Roll Stacker over Ordinary Clamping Stacker

Whether it is living paper, office paper or printing paper, it wants to be made into the corresponding paper products, the necessary link is the original paper roll handling and processing. In this process, there is a tool that will inevitably be used paper roll clamps. The shape of the paper roll is cylindrical, to move it, generally use a forklift to carry out, and it is clear that only the forklift can only take the pallet to solve the ordinary handling of paper rolls, and it is difficult to complete other operational needs.

However, the advantages of paper roll clamps lie in the fact that they can be used for paper rolls alone to complete the operation without being limited by the pallet. Simply put, palletless handling is possible. Paper roll clamps are able to carry out efficient, safe, non-destructive handling and stacking operations for paper rolls, and can clamp paper rolls for continuous 360-degree rotation, which is convenient for paper roll exchange operations. Widely used in papermaking, carton, packaging, printing, port and other industries for all kinds of paper rolls for palletless handling and stacking.
