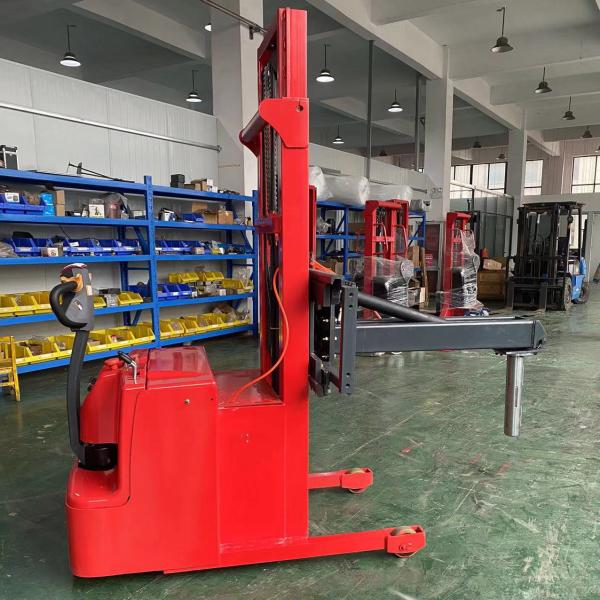

1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll
Specifications
Brand Name :
KAD
Model Number :
BM050CG-16
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄7600-＄8200 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Product name :
paper roll stacker
Load capacity :
100-1000kg
Load height :
1000-4500mm
Load center :
500mm
Operation way :
Electric moving,lifting,sealing
Battery :
24V/210A
Description

1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll

Product Application

A paper roll stacker offers numerous advantages in paper handling. Firstly, it ensures efficient and organized stacking of paper rolls, minimizing the risk of damage or collapse. Secondly, its automated features significantly reduce the need for manual labor, improving productivity and reducing the potential for human error. Additionally, the stacker's precise mechanism guarantees consistent and accurate stacking, optimizing space utilization and improving overall workflow.

1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll

1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll

1000kg 1000mm-4500mm Roll-Up Paper Handling Lifter with paper reel clamp insert paper roll

Main Features

1.All-electric film paper roll up axis rotary loading car for mechanical special design, expansion axis can be set for the built-in battery power electro-hydraulic drive, easy to insert the film paper roll into the center of the shaft hole, fork up the horizontal horizontal or vertical rolls, rotate so that the vertical into horizontal or horizontal put into the vertical.

2.The length, outer width or inner width of the two bottom legs can be customized according to the outer diameter of the customer's rolls and the way of placing with front leg type or short leg type or no bottom leg structure, convenient to enter and exit all kinds of pallets, machines or directly put on the ground of the roll work.
3. It can be equipped with optional camera to monitor the position of the shaft center. Side shift function can also be added.
4.Applicable to paper making, tape, film, aluminum foil, chemical industry, printing, weaving and other industries, saving labor costs and improving work efficiency.
5.The design function is: electric push walk, electric lift, electric fork roll, electric rotate, automatic loose tube.
Specification
Power source
Battery
Rated load
kg
700kg/customized
Load center
mm
500
Operation way
Standing operation,electric lifting,electric gripper,electric rotating,electric moving
Turning radius
mm
1050
Aisle width
mm
1900
Length
mm
1500
Width
mm
760
Height
mm
2100/customized
Mast
1-stage mast
Adjustable extent of clamp
mm
200~1250
Max height of forks
mm
1500
Min height of forks
mm
200
Rotation angle
°
90°(left and right)/360 degree
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
％
3,5
Braking mode
Wheel brake
Tyres material
Nylon
Load wheel dimensions
mm
85*80,2pcs
Steering wheel dimensions
mm
180*50,2pcs
Hydraulic motor
kw
24v/2.2kw
Battery
v/ah
24/210
Weight
kg
1100

Differences between roll turner and clamp stackers in terms of Design and Different clamping method

Roll turners and roll clamps are both types of material handling equipment used in industrial settings, particularly in the handling of rolls of materials like paper, textiles, or metal. While both serve the general purpose of manipulating rolls, they have distinct functionalities and applications. Here's a breakdown of the key differences:

1. **Design:**

- **Roll Turner:** Typically equipped with mechanisms for rotating the roll, and the design may allow for precise positioning of the roll during the turning process.

- **Roll Clamp:** Equipped with clamping arms or mechanisms designed to securely grip and support the roll during lifting and transportation.

2. **Different clamping method**

Clamping method: Roll turner is a method of fixing the roll core by expanding it, thereby lifting and rotating the paper roll. It will not harm the core of the roll, but it will damage the outer packaging of the roll. The clamp stacker is taken from the outside of the roll, which is prone to compression and deformation, but will not damage the outer packaging.
