LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
Specifications
Brand Name :
Hannstar
Model Number :
HSD103KPW2-A10
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass
Brightness :
925ccd/m2
Resolution :
800*480pixels
contrast ratio :
1000:1
color :
16.7M
Working life :
20k hours
connector :
40P
Touch panel :
without
working voltage :
3.3v
Description

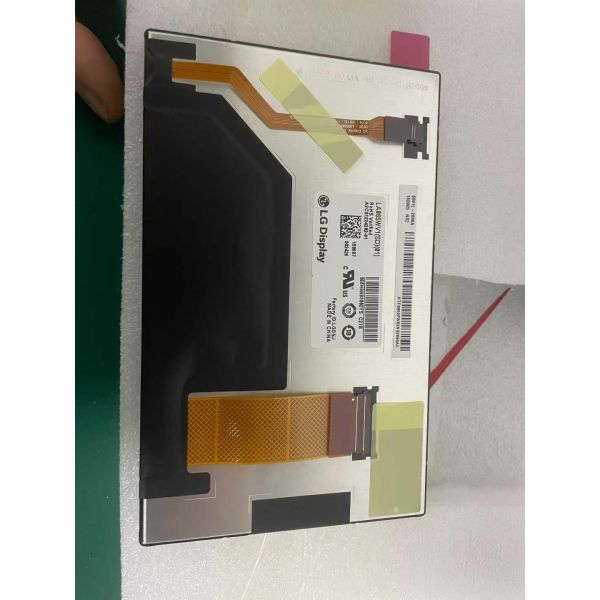

LG 6.5-Inch Car LCD Display Panel
Model: LA065WV1-SD01 (Alias: LA065WV1 (SD)(01))
Product Overview
This 6.5-inch diagonal a-Si TFT-LCD display panel from LG Display features an integrated WLED backlight system and is designed for automotive applications. The panel operates in extreme temperature conditions from -40°C to 85°C and withstands vibration levels up to 3.0G (29.4 m/s²).
Key Features
  • High brightness: 925 cd/m² (Typical)
  • Wide viewing angles: 89/89/89/89 (CR≥10)
  • IPS technology with normally black display
  • sRGB color gamut with 86% NTSC coverage
  • Wide temperature operation range
  • Hard coating surface (3H hardness)
Technical Specifications
Diagonal Size 6.5 inches
Resolution 800(RGB)*480 (WVGA), 143 PPI
Active Area 141.6(W) * 84.96(H) mm
Outline Dimensions 158(W) * 98.6(H) * 11.7(D) mm
Contrast Ratio 1000:1 (Typical)
Response Time 30ms (Max., Tr+Td)
Display Colors 16.7 million
Backlight 8S3P WLED, 10,000 hours lifetime
Signal Interface Parallel RGB (1 channel, 6-bit), 40-pin FPC
Input Voltage 3.3V (Typical)
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 95°C
Panel Weight 155g (Typical) / 165g (Maximum)
Application
Primary application: Automotive Display Systems
LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector
Important Note: This model entered mass production in Q4 2014 and is now discontinued. For current production status and latest specifications, please contact LG Display or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
