Specifications
Brand Name :
BOE
Model Number :
AV174WUM-N10
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1200*920pixels
style :
LCM
brightness :
800 CCD M2
color :
16.7M
contrast ratio :
1000 :1
working life :
20K Hours
connector :
30pin
Description

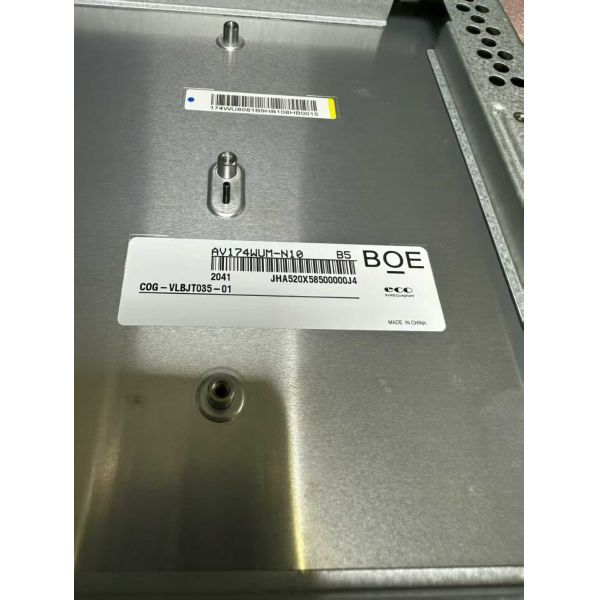

BOE 17.4" LCD Panel AV174WUM-N10
30-pin 16.7M Color Car LCD Display with outdoor high brightness screen
Product Overview
The AV174WUM-N10 (Alias: COG-VLBJT035-01) is a 17.4-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system with LED driver and no touch screen. This industrial-grade display operates in extreme temperatures from -40°C to 85°C and is designed for demanding applications including outdoor high brightness environments and automotive displays.
Key Features
  • 17.4-inch WUXGA display with 1200*1920 resolution
  • High brightness: 800 cd/m² (Typical)
  • Wide operating temperature: -40°C to 85°C
  • 16.7 million colors with 71% NTSC color gamut
  • LVDS interface with 30-pin connector
  • 75Hz refresh rate for smooth performance
  • ADS technology with normally black display mode
Technical Specifications
Brand BOE
Model P/N AV174WUM-N10
Diagonal Size 17.4"
Panel Type a-Si TFT-LCD, LCM
Resolution 1200*1920 (RGB), WUXGA, 130PPI
Active Area 234(W) * 374.4(H) mm
Outline Size 250.8(W) * 386.8(H) * 19.1(D) mm
Brightness 800 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Viewing Angle 85/85/85/85 (Typ.) (CR≥10)
Display Mode ADS, Normally Black, Transmissive
Response Time 40ms (Max.) (Tr+Td)
Display Colors 16.7M, 71% NTSC
Lamp Type 12S6P WLED, With LED Driver
Frequency 75Hz
Touch Screen Without
Signal Interface LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage 5.0V (Typ.)
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 90°C
Product Images
BOE 17.4 inch Car LCD Display with 800 cd/m² Brightness and 30pin Connector for Outdoor High Brightness Applications BOE 17.4 inch Car LCD Display with 800 cd/m² Brightness and 30pin Connector for Outdoor High Brightness Applications BOE 17.4 inch Car LCD Display with 800 cd/m² Brightness and 30pin Connector for Outdoor High Brightness Applications
Production Information
Mass production began in Q3 2020 and the model is currently in production. For the latest production status and specification details, we recommend contacting BOE or their authorized agents directly.
