Specifications
Brand Name :
Sharp
Model Number :
LQ038Q5DR01
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
$56
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
2000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
320*240pixels
style :
LCD 40PIN
brightness :
450CCD M2
color :
262K
contrast ratio :
100 :1
working life :
20K Hours
touch panel :
without touch
Description
Sharp 3.8-inch Automotive LCD Display
Model: LQ038Q5DR01 | 320*240 Pixels | 450 cd/m² | 40-pin Car LCD Panel
Product Overview

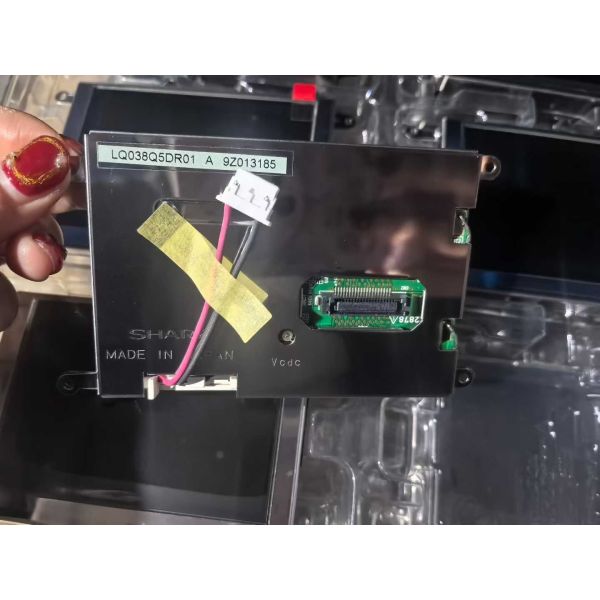

The Sharp LQ038Q5DR01 is a 3.8-inch diagonal a-Si TFT-LCD display panel designed specifically for automotive applications. This display features an integrated CCFL backlight system and is engineered to withstand harsh automotive environments with wide operating temperature ranges and vibration resistance.
Key Features
  • Wide operating temperature range (-30°C to 85°C)
  • 3G vibration resistance (2.9G / 28.4 m/s²)
  • 180° reverse viewing capability
  • Matte surface with antiglare and antireflection treatment
  • High brightness 450 cd/m² luminance
  • Automotive-grade reliability
Technical Specifications
BrandSharp
Model NumberLQ038Q5DR01 (Alias: LQ038Q5DR01T, LQ038Q5DR01A)
Diagonal Size3.8 inches
Panel Typea-Si TFT-LCD, LCM
Resolution320(RGB)*240 (QVGA) - 106 PPI
Active Area78.72(W) * 53.64(H) mm
Outline Dimensions117.6 * 69.45 * 13.75 mm (H*V*D)
Luminance450 cd/m² (Typical)
Contrast Ratio100:1 (Minimum)
Viewing Angle65/65/40/65 (Typical, CR≥5)
Response Time30/50 ms (Typical, Tr/Td)
Optimal Viewing6 o'clock direction
Color Depth262K colors
Backlight1 CCFL, 20K hours lifespan, No Driver
Weight135g (Maximum)
Refresh Rate60Hz
TouchscreenWithout touch screen
Signal InterfaceParallel RGB (1 channel, 6-bit), 40-pin connector
Operating Voltage3.3V (Typical)
Environmental Specifications
Operating Temperature-30°C to 85°C
Storage Temperature-40°C to 95°C
Vibration Resistance2.9G (28.4 m/s²)
Important Notice: This model entered mass production in Q2 2000 with last shipment in Q1 2013 and is now discontinued. We strongly recommend contacting Sharp or their authorized distributors for the latest production status and specifications before considering this model for new product designs.
