Specifications
Brand Name :
TIANMA
Model Number :
TM101DDHG01
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1024*600
style :
40PIN IPS
brightness :
800 CD/M2
color :
16.7M
contrast ratio :
600 :1
working life :
30k hours without driver
Description

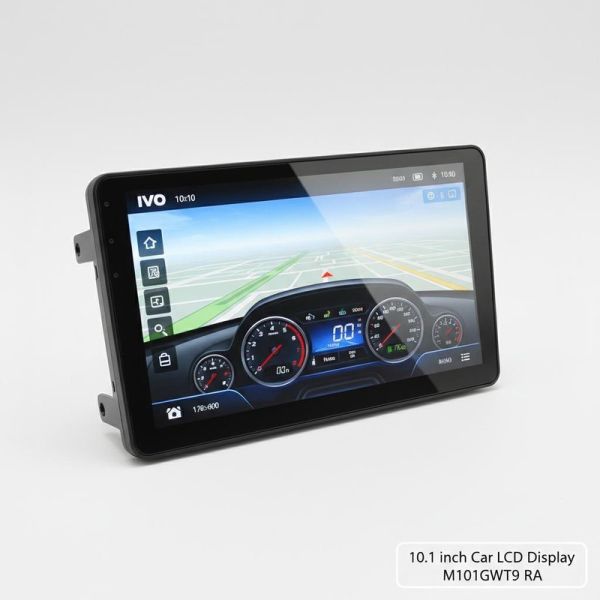

IVO 10.1 inch Car LCD Display M101GWT9 RA
High-brightness 10.1-inch automotive TFT-LCD display with 1024×600 resolution, designed for outdoor and automotive applications with wide temperature operation and vibration resistance.
IVO 10.1 inch Car LCD Display with 1024*600 Pixels 800 CD/M2 Brightness and 40PIN IPS for Automotive Applications
Product Overview
InfoVision Optoelectronics Kunshan Co., Ltd. (IVO) M101GWT9 RA is a 10.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This model features wide operating temperature range (-30°C to 85°C), high vibration resistance (2.9G), and outdoor high brightness capabilities. Recommended for automotive displays and outdoor high-brightness applications.
Key Specifications
Brand: IVO
Model: M101GWT9 RA
Diagonal Size: 10.1 inch
Display Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×600 (WSVGA)
Pixel Structure: RGB Vertical Stripe
Active Area: 222.72 × 125.28 mm
Physical Size: 238.6 × 148.05 × 10.8 mm
Weight: 330g (Max.)
Surface Coating: Antiglare
Brightness: 800 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.)
View Direction: 12 o'clock
Response Time: 25 ms (Typ.)
Viewing Angle: 70/70/70/50 (CR≥10)
Operating Mode: TN, Normally White, Transmissive
Color Support: 16.7M, 50% NTSC
Power Consumption: 8.14W (Typ.)
Backlight: 9S3P WLED, 30K hrs
Frame Rate: 60Hz
Touch Panel: Without
Interface & Power
Interface Type LVDS (1 ch, 8-bit), 40 pins FPC
Power Supply 3.3/3.3V (Typ.)(VDD/VDDA)
Environmental Specifications
Operating Temperature -30°C to 85°C
Storage Temperature -40°C to 95°C
Vibration Resistance 2.9G (28.4 m/s²)
Application Notes
This display model entered mass production in Q4 2019 and is currently in production. For the latest production status and detailed specifications, please contact IVO or their authorized distributors directly.
