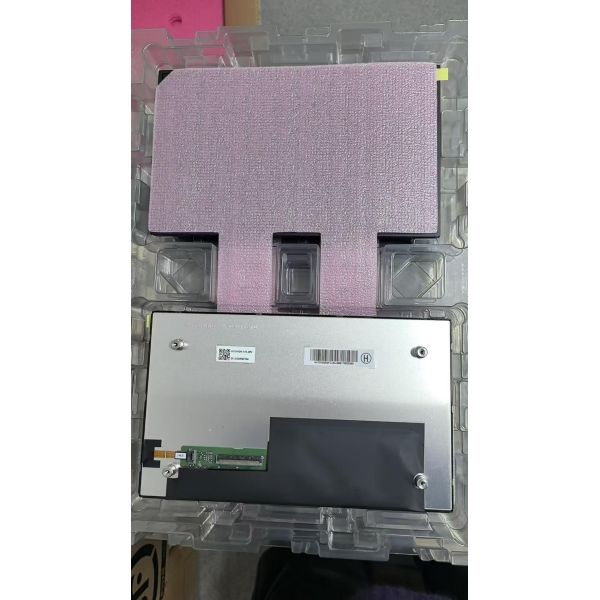

BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
Specifications
Brand Name :
BOE
Model Number :
AV101HDM-N10-28P2
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1280*720pixels
style :
LCM
brightness :
1000 CCD M2
color :
16.7M
contrast ratio :
1000 :1
working life :
50K Hours
connector :
60pin
Description
BOE 10.1-inch Car LCD Display
High-brightness 1280*720 pixel automotive display with 1000 cd/m² brightness and 60-pin connector, designed for outdoor high-brightness applications.
Product Overview
The AV101HDM-N10-28P2 is a 10.1-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system. This display operates within a wide temperature range of -30°C to 85°C and is engineered for demanding automotive and outdoor environments.
Key Features
  • 10.1-inch diagonal display with 1280*720 resolution
  • Ultra-high brightness: 1000 cd/m² typical
  • Wide operating temperature: -30°C to 85°C
  • WLED backlight with 50,000+ hour lifespan
  • LVDS interface with 60-pin connector
  • sRGB color gamut with 86% NTSC coverage
  • Designed for automotive and outdoor applications
Technical Specifications
Model NumberAV101HDM-N10-28P2
Panel Typea-Si TFT-LCD, LCM
Resolution1280(RGB)*720 (WXGA), 145 PPI
Active Area223.68*125.82 mm
Brightness1000 cd/m² (Typical)
Contrast Ratio1000:1 (Typical)
Viewing Angle85/85/85/85 (CR≥10)
Response Time30 ms maximum (Tr+Td)
InterfaceLVDS (1 channel, 8-bit), 60-pin connector
Power Supply3.3V typical
Operating Temperature-30°C to 85°C
Storage Temperature-40°C to 90°C
Touch PanelWithout touch screen
Application Areas
This high-brightness display is specifically designed for outdoor high-brightness applications and automotive display systems where visibility in direct sunlight is critical.
Note: Production status and specifications are subject to change. Please contact BOE or their authorized agents for the latest production and specification details before integrating this display into your products.
