8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
Specifications
Package :
Original industrial packing
Model Number :
NV080WUM-N61
Quality :
Brand new Original
Brand Name :
TIANMA
brightness :
435 CD/M2
MOQ :
10pcs
Delivery Time :
4-5 working day
style :
45PIN IPS
Place of Origin :
China
Packaging Details :
Industrial packing
color :
16.7M
Price :
Negotiation
resolution :
1200*1920
Certification :
Rohs,CE,FCC
contrast ratio :
1200 :1
Payment Terms :
T/T,W,Western Union,MoneyGram
working life :
15k hours without driver
Supply Ability :
3000pcs per week
Description
8-inch BOE LCD Display NV080WUM-N61 with 1200×1920 Resolution WLED 45PIN IPS for Tablet PC and PAD
Product Overview

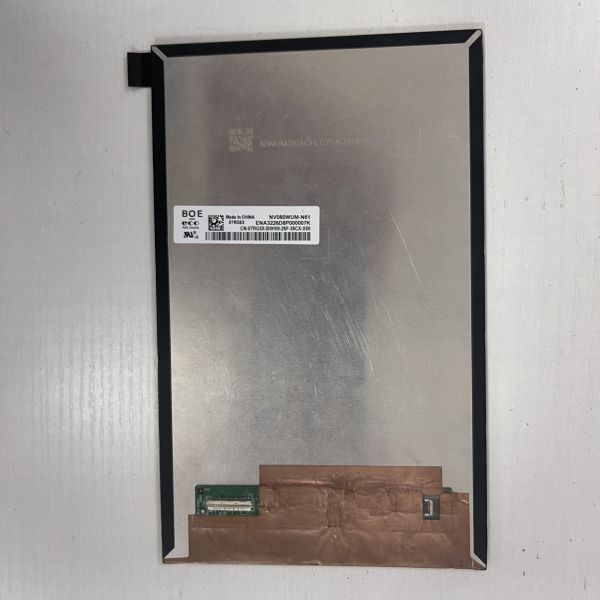

NV080WUM-N61 is a 8.0-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system without backlight driver or touch screen. This display is optimized for Pad and Tablet applications with sRGB color support and portrait orientation.

8inch BOE LCD Display NV080WUM-N61 with 1200*1920 Resolution 45PIN IPS and 435 CD/M2 Brightness for Tablet PC
Technical Specifications
Manufacturer BOE Model Name NV080WUM-N61
Display Size 8.0" Panel Type a-Si TFT-LCD, LCM
Resolution 1200(RGB)×1920, WUXGA, 10:16 Dot Layout RGB Vertical Stripe
Display Area 107.64(W)×172.224(H) mm Panel Weight 95.0g (Max.)
Outline Size 113.14(W)×182.424(H)×3.68(D) mm Surface Hard coating (2H)
Brightness 435 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode HADS, Normally Black, Transmissive
View Direction Symmetry Response Time 30 (Typ.)(Tr+Td) mm
Display Colors 16.7M, 100% sRGB Touch Screen Without
Power Usage 2.36/2.47W (Typ./Max.) Light Source 9S3P WLED, 15K hrs, Without Driver
Frequency 60Hz Interface MIPI (4 data lanes), 45 pins Connector
Input Voltage 3.3V (Typ.) Application Pad & Tablet
Operating Temperature 0 ~ 50 °C Storage Temperature -20 ~ 60 °C
Production Information

Mass production began in Q3 2021, and the model is currently in production. Specification data was first recorded on October 24, 2022, with the latest update on September 1, 2023.

Important Note: For integration into your products, we strongly recommend contacting BOE or their authorized agents to obtain the latest production status and specification details. The information provided here is for reference only and should not be used as the sole basis for decision-making.
