LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
Specifications
MOQ :
10pcs
Delivery Time :
4-5 working day
Resolution :
240*357pixels
connector :
40P
Price :
Negotiation
contrast ratio :
400:1
Packaging Details :
Industrial packing
Touch panel :
without
Model Number :
LB048Q01-TD01
Package :
Original industrial packing
Supply Ability :
3000pcs per week
Working life :
20k hours
Payment Terms :
T/T,W,Western Union,MoneyGram
color :
262K
Brand Name :
LG
Quality :
Brand new Original
Certification :
Rohs,CE,FCC
material :
glass
Place of Origin :
China
Brightness :
400ccd/m2
Description

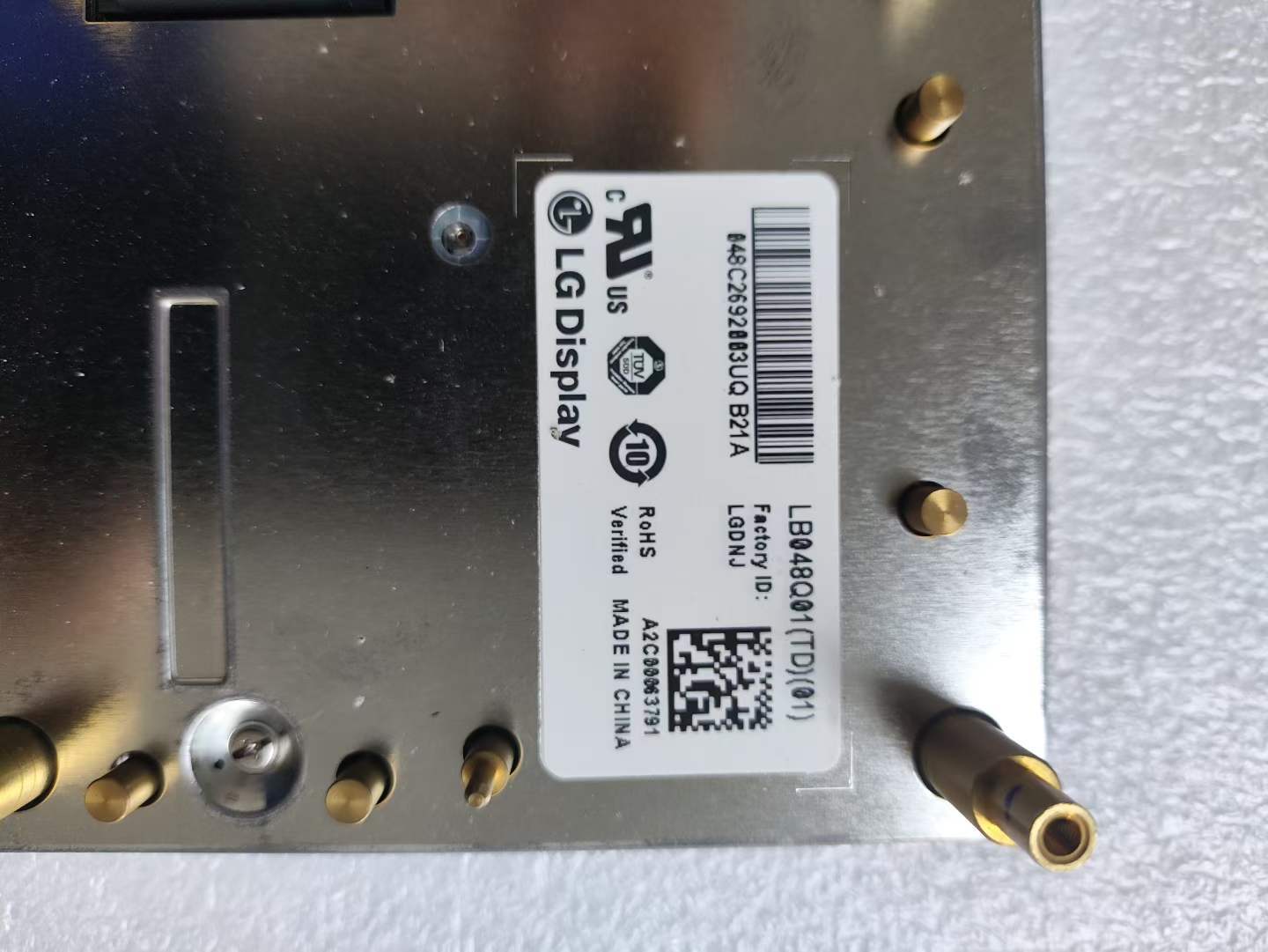

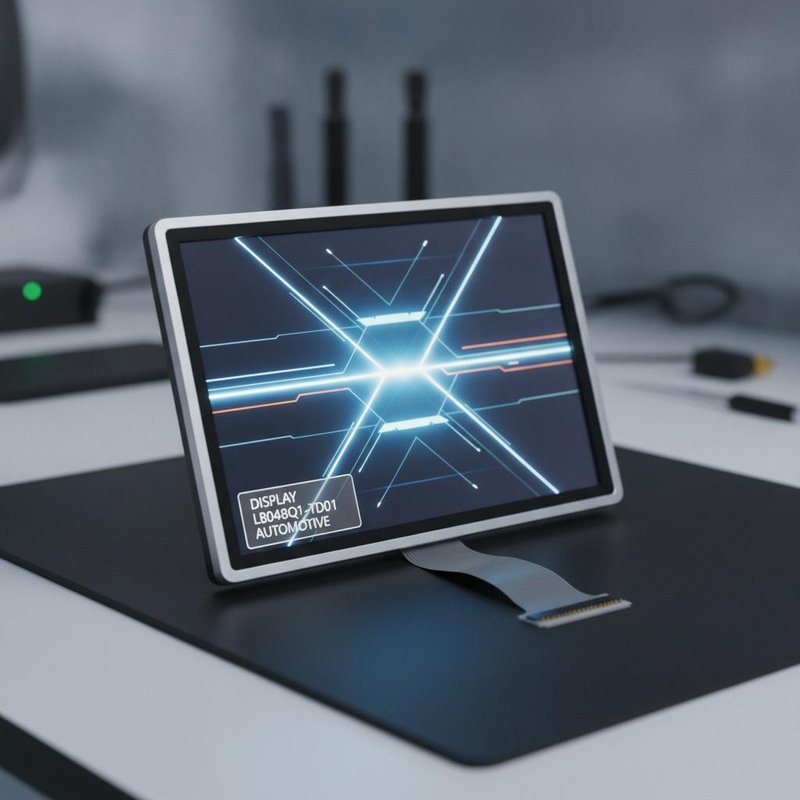

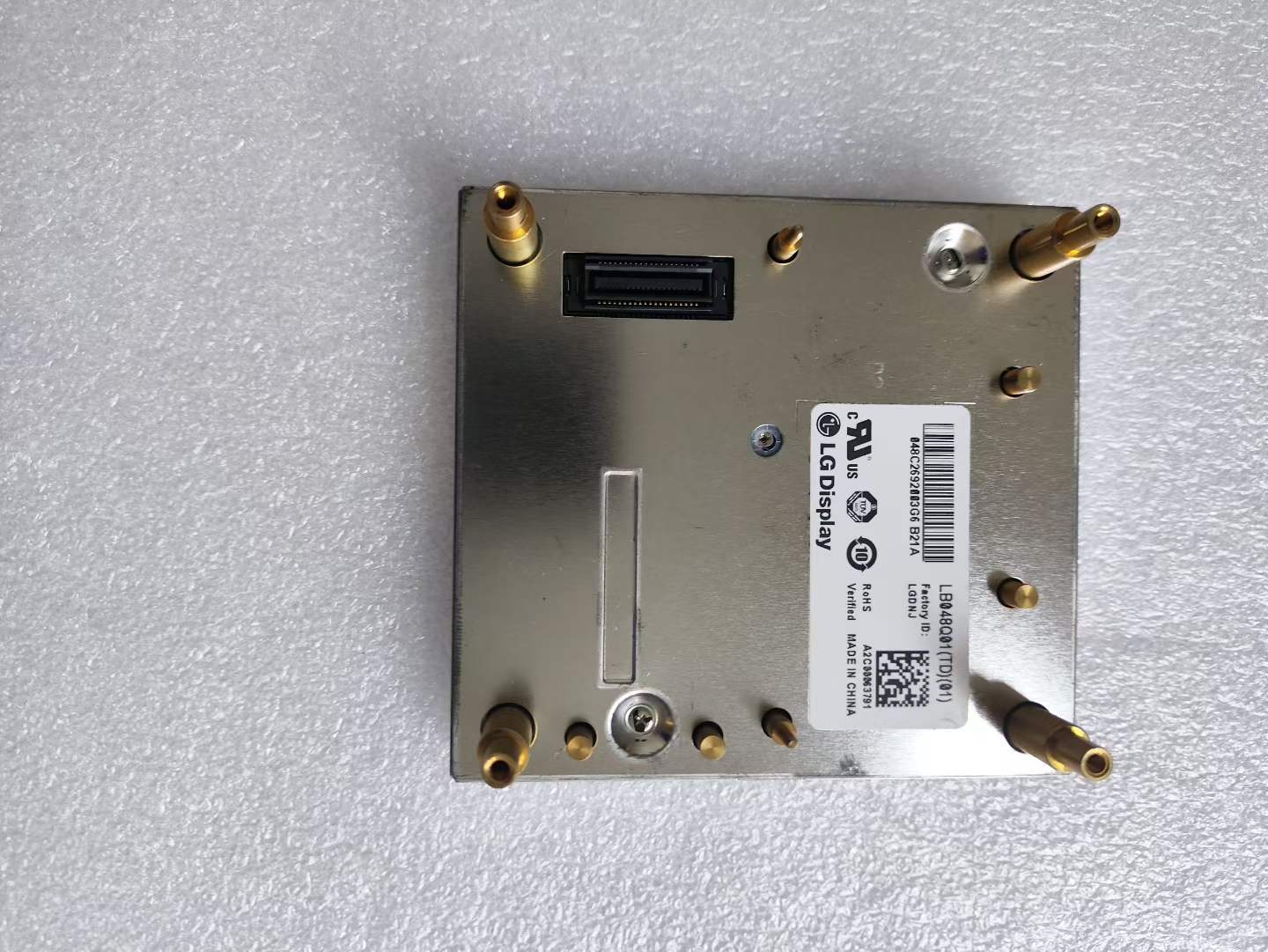

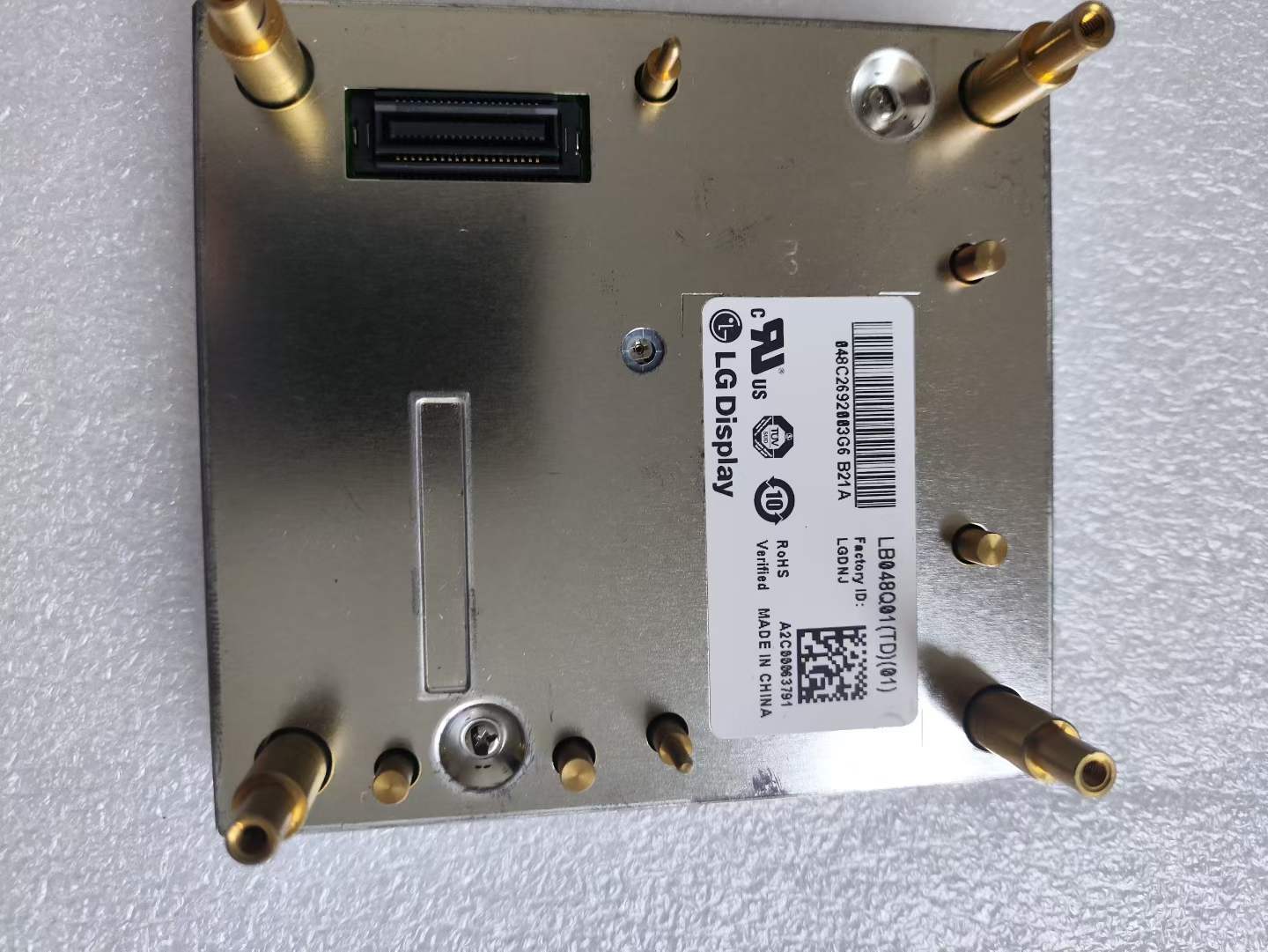

LG 4.8-Inch Car LCD Display LB048Q01-TD01
High-brightness 4.8-inch automotive LCD display with 400 cd/m² luminance and 240 × 257 resolution, featuring a 40-pin square screen interface.
Product Overview
The LB048Q01-TD01 is a 4.8-inch diagonal a-Si TFT-LCD display panel from LG Display Co., Ltd. This portrait-type display features an integral WLED backlight system and is designed for wide temperature operation. It's particularly suited for automotive display applications and square display formats.
Note: This model entered mass production in Q1 2009 and is currently discontinued. For integration into future products, contact LG Display or their agent for the latest production and specification details.
LG 4.8Inch Car LCD Display with 400 cd/m² Luminance 240 × 257 Pixel Number and 40PIN Connector for Automotive
Technical Specifications
Manufacturer LG Display
Model Name LB048Q01-TD01
Display Size 4.8 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 240(RGB)×257, 1:1
Pixel Structure RGB Vertical Stripe
Display Area 83.016(W)×88.922(H) mm
Panel Weight 195/200g (Typ./Max.)
Outline Size 93.1(W)×100.8(H)×34.4(D) mm
Brightness 400 cd/m² (Typ.)
Contrast Ratio 610:1 (Typ.) (TM)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
View Direction 6 o'clock
Response Time 16/16 (Max.)(Tr/Td) ms
Display Colors 262K, 63% NTSC
Application Automotive Display
Frequency 60Hz
Touch Screen Without
Light Source 2S3P WLED, 20K hrs, Without Driver
Interface Parallel RGB (1 ch, 6-bit), 40 pins Connector
Input Voltage 3.3V (Typ.)
Operating Temperature -40 ~ 85 °C
Storage Temperature -40 ~ 95 °C
Vibration 3.0G (29.4 m/s²)
The production status information provided is for reference only and should not be used as the basis for user decision-making. Always verify current specifications with the manufacturer.
