Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Hannstar 10.4 Inch Car LCD Display with 1024*768 Pixels and 600CD/M2 Brightness
Specifications
Brand Name :
Hannstar
Model Number :
HSD104IXN1-A00
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.2m colors
model :
XGA
style :
wide screen high resolution 1024*768Pixels
brightness :
600cd
connector :
60
contrast ratio :
900:1
working time :
30k hours
Description

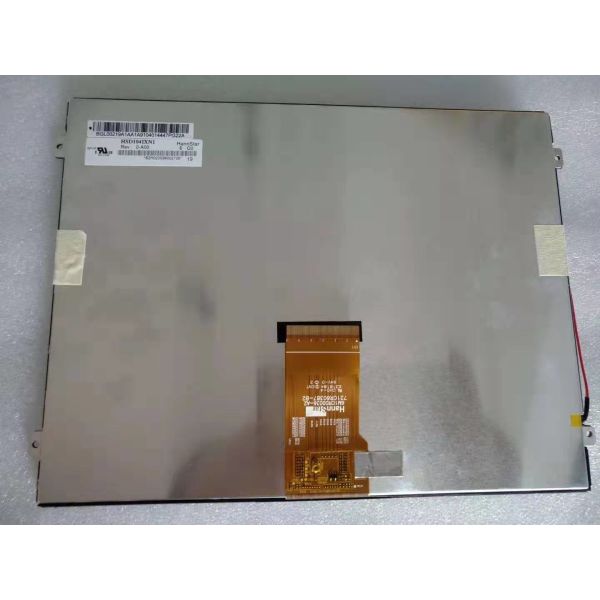

Hannstar 10.4 Inch Car LCD Display
Model: HSD104IXN1-A00 | Resolution: 1024*768 Pixels | Brightness: 600 cd/m² | 60-Pin Interface
Product Overview
The Hannstar HSD104IXN1-A00 is a 10.4-inch diagonal TFT-LCD display panel designed specifically for automotive applications. This high-brightness panel features IPS Pro technology with excellent viewing angles and robust environmental specifications suitable for vehicle environments.
Technical Specifications
Panel BrandHannStar
Panel ModelHSD104IXN1-A00
Panel Size10.4 inches
Panel Typea-Si TFT-LCD, LCM
Resolution1024(RGB)*768 (XGA)
Pixel FormatRGB Vertical Stripe
Display Area211.2mm * 158.4mm
Bezel Opening213.2mm * 160.4mm
Outline Size236mm * 174.3mm * 7mm
Surface TreatmentAntiglare, Hard coating (3H)
Brightness600 cd/m² (Typical)
Contrast Ratio900:1 (Typical)
Viewing Angle85/85/85/85 (CR≥10)
Display ModeIPS Pro, Normally Black, Transmissive
Best ViewSymmetry
Response Time30ms (Typical, Tr+Td)
Display Colors262K/16.2M, 70% NTSC
Backlight4S8P WLED, 30K hours, Without Driver
Refresh Rate60Hz
Touch ScreenWithout
Panel Weight316g (Typical)
Signal InterfaceLVDS (1 ch, 6/8-bit), 60 pins, FPC
Input Voltage3.3/12.1/23/10V (DVDD/AVDD/VGH/VGL)
Operating Temperature-20°C to 70°C
Storage Temperature-30°C to 80°C
Key Features
  • High brightness 600 cd/m² for excellent visibility in various lighting conditions
  • IPS Pro technology with wide 85/85/85/85 viewing angles
  • Robust construction with antiglare hard coating (3H) surface
  • WLED backlight system with 30,000-hour lifespan
  • Automotive-grade temperature range operation
  • LVDS interface with 60-pin FPC connector
Application
This display panel is specifically designed for automotive display applications, providing reliable performance in vehicle environments with its wide temperature range and durable construction.
Quality Assurance
All LCD models include one-year quality warranty and undergo comprehensive testing before delivery to ensure optimal performance and reliability.
