10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
Specifications
Brand Name :
innolux
Model Number :
DJ103IA-03B
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass
Brightness :
800ccd/m2
Resolution :
1920*720pixels
contrast ratio :
1000:1
color :
16.7M
Working life :
20k hours
connector :
50P
Touch panel :
without
working voltage :
3.3v
Description
Car LCD Display DJ103IA-03B - 10.3 inch TFT LCD Panel
The Innolux DJ103IA-03B is a 10.3-inch automotive TFT-LCD display panel featuring high brightness, wide viewing angles, and 1920×720 pixel resolution. Designed specifically for automotive applications, this display offers reliable performance in demanding environments.
Key Features
  • 10.3-inch diagonal a-Si TFT-LCD display
  • High brightness: 800 cd/m² typical
  • Resolution: 1920(RGB)×720 pixels (200 PPI)
  • Wide viewing angle: 85/85/85/85 (CR≥10)
  • Wide operating temperature: -30°C to 85°C
  • LVDS interface with 50-pin connector
  • 3.3V power supply
  • Antiglare surface treatment
Technical Specifications
Brand Innolux
Model Number DJ103IA-03B
Diagonal Size 10.3 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×720 (200 PPI)
Active Area 243.648(W) × 91.368(H) mm
Brightness 800 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Response Time 15/10 ms (Typical, Tr/Td)
Viewing Angle 85/85/85/85 (CR≥10)
Operating Mode AAS, Normally Black, Transmissive
Color Support 16.7M colors, 85% NTSC
Backlight WLED, 20K hours lifespan
Interface LVDS (2 ch, 8-bit), 50-pin connector
Power Supply 3.3V (Typical)
Operating Temperature -30°C to 85°C
Storage Temperature -40°C to 90°C
Vibration Resistance 1.5G (14.7 m/s²) maximum
Weight 380g (Maximum)

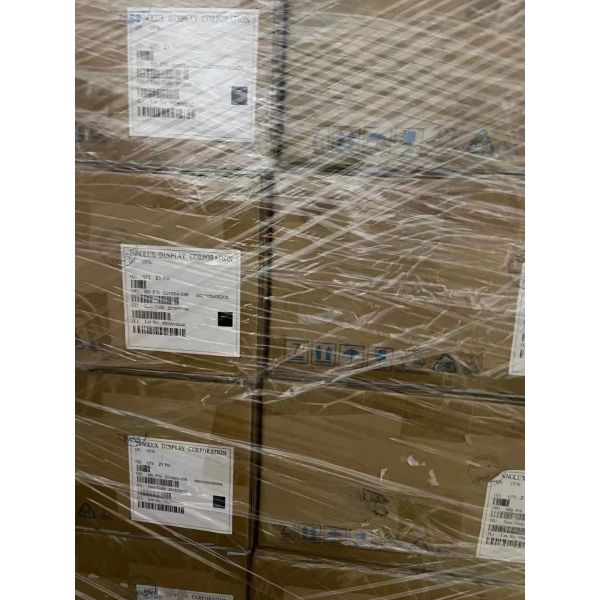

Product Image
10.3 inch Car LCD Display DJ103IA-03B with 1920 by 720 Pixels Resolution and 800 cd/m² Brightness for Automotive Applications
Important Note: This model entered mass production in Q2 2016 and is now discontinued. For integration into future products, we strongly recommend contacting Innolux or their distributor for the latest production status and specifications. The information provided is for reference only and should not be used as the sole basis for decision-making.
