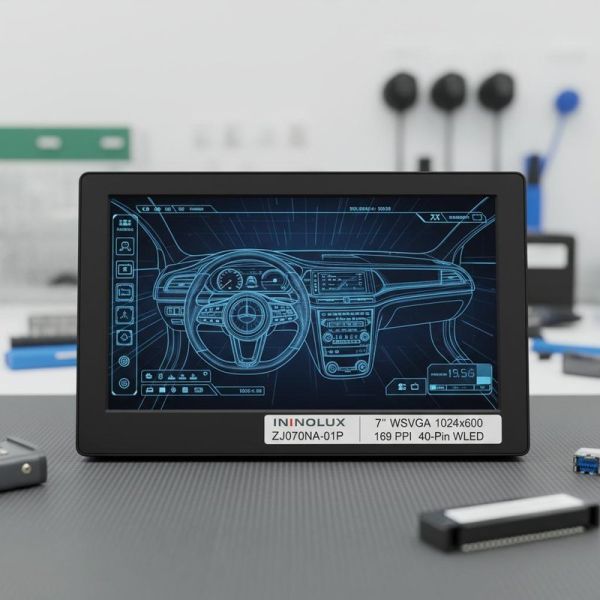

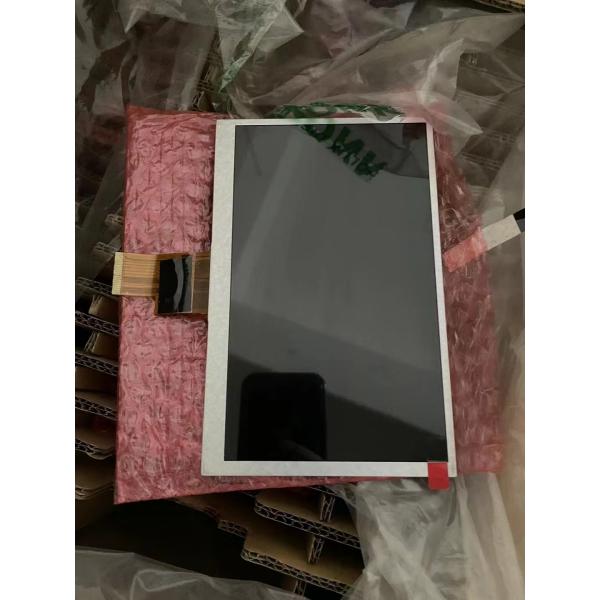

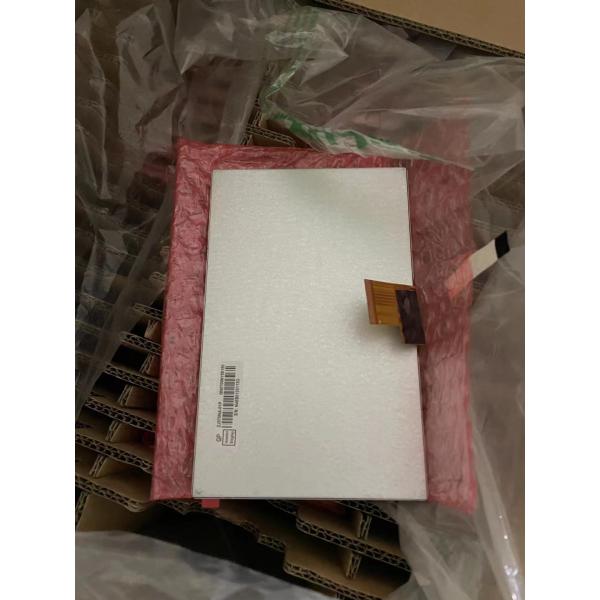

Innolux ZJ070NA-01P 7-inch Automotive LCD Display
The Innolux ZJ070NA-01P is a 7.0-inch diagonal WSVGA TFT-LCD display panel designed specifically for automotive display systems. This display features a 1024(RGB)*600 resolution with 169 PPI density, 500 cd/m² brightness, and wide operating temperature range of -30°C to 80°C, making it ideal for demanding automotive environments.
Key Specifications
| Brand | Innolux |
| Model Number | ZJ070NA-01P |
| Diagonal Size | 7.0 inches |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)*600 (WSVGA), 169 PPI |
| Active Area | 153.6mm * 90mm |
| Brightness | 500 cd/m² (Typical) |
| Contrast Ratio | 700:1 (Typical) |
| Viewing Angle | 75/75/70/75 (CR≥10) |
| Response Time | 10/15 ms (Tr/Td) |
| Display Colors | 262K/16.7M, 70% NTSC |
| Backlight | WLED, 15K hours lifespan |
| Signal Interface | LVDS (1 channel, 6/8-bit), 40-pin FPC |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
Physical Dimensions
Outline Size: 165.75mm (W) * 105.39mm (H) * 5.1mm (D)
Bezel Opening: 156.4mm (W) * 92.8mm (H)
Panel Weight: 156g
Surface: Glare (Haze 0%)
Electrical Specifications
Input Voltage: 3.3V/11.0V/20.0V/-6.8V (DVDD/AVDD/VGH/VHL)
Refresh Rate: 60Hz
Touch Screen: Without touch screen
Important Note: This model entered mass production in Q2 2013 and is currently discontinued. For integration into future products, we strongly recommend contacting Innolux or their authorized distributors for the latest production status and specifications. The information provided is for reference only and should not be used as the sole basis for decision-making.
