Digital Label Roll-to-Roll Finish Machine with 60 bags/min Speed and 120-450mm Bag Width for Digital Foil Stamping
Digital Label Roll-to-Roll Finish Machine with 60 bags/min Speed and 120-450mm Bag Width for Digital Foil Stamping
Digital Label Roll-to-Roll Finish Machine with 60 bags/min Speed and 120-450mm Bag Width for Digital Foil Stamping
Digital Label Roll-to-Roll Finish Machine with 60 bags/min Speed and 120-450mm Bag Width for Digital Foil Stamping
Specifications
Brand Name :
Ecoographix
Model Number :
ECOO-KL
Certification :
ISO9000, ISO20001, CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 SET PER YEAR
Delivery Time :
30 DAYS
Packaging Details :
Wooden case with enough protective layers
Speed :
60 bags/min
Bag width :
120-450mm
Bottom width :
50-170mm
Sheet Width :
750-1260mm
Sheet Length :
460-800mm
Machine size(W*L*H) :
191*1651*246 cm
Power :
28 kw
HS code :
8441200000
Application :
Shopping bag, package bag, food bag
Description

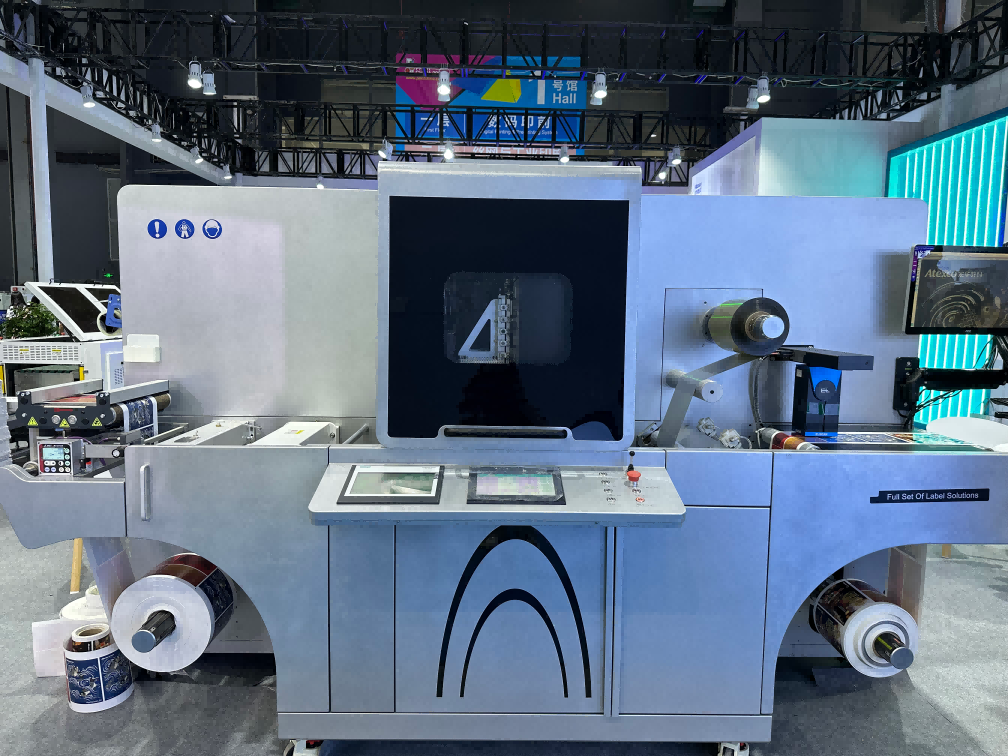

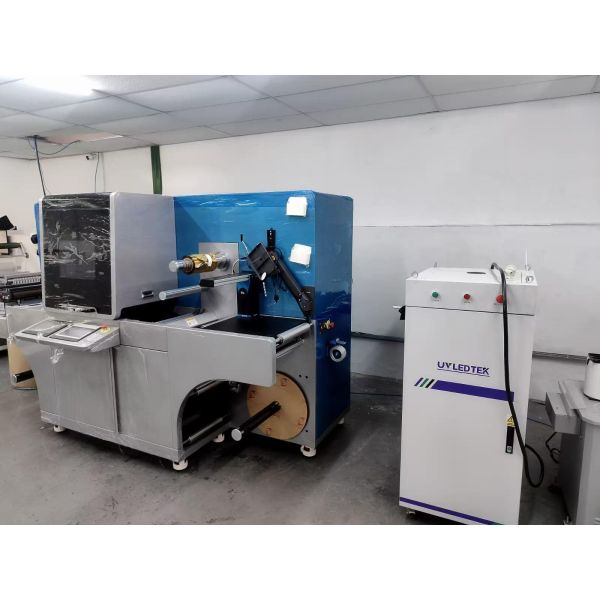

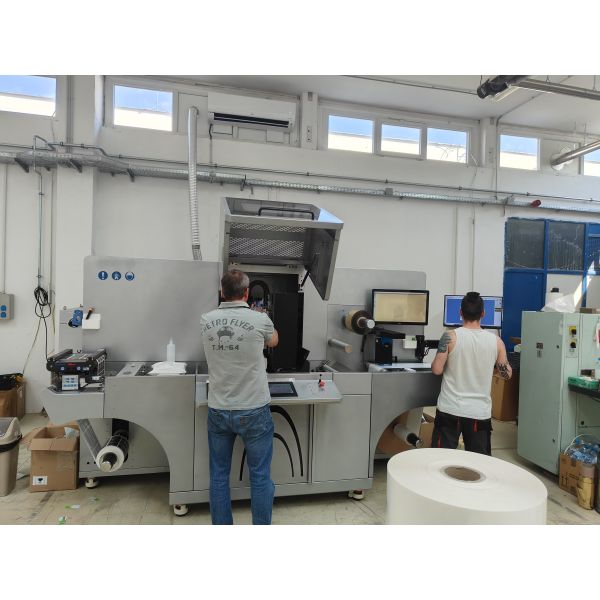

Digital Label Roll-to-Roll Finish Machine
Product Overview
The EcooSpark digital finishing system integrates multiple digital enhancement processes including digital foil stamping, digital varnish application, and 3D crystal bright effects without requiring plates. Designed to work seamlessly with traditional printing, digital printing, and other post-processing operations, this equipment enables unlimited label embellishment designs. It offers high efficiency, low operational costs, and significant value addition, supporting customization from small batch orders to long production runs.
H.S. Code: 8443322900
CE certificate or equivalent certification available
Outstanding Features
  • Fully digital workflow with fast setup times and quick job turnover
  • Unlimited embellishment design capabilities with variable data printing management
  • Immediate prior calculation of varnishing consumption
  • Modular design with optional laminating or flexo coating capabilities
Digital Label Roll-to-Roll Finish Machine with 60 bags/min Speed and 120-450mm Bag Width for Digital Foil Stamping
Technical Specifications
Parameter Ecoospark 330 Ecoospark 288
Printing Technology UV Piezo DoD (drop on demand) inkjet
Resolution 360×360 dpi, up to 1440×360 dpi
Printing Speed 10-60 m/min (depending on polymer layer thickness)
Variable Image System PDF, optimized PDF, optional barcode system
Supported Image Standards PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing Image Width 330mm × 10m (Length) 288mm × 10m (Length)
Polymer WB-DS-Clear Polymer
Polymer Layer Thickness 10-200 microns
Ink Curing Inter UV-LED Pre-curing / Full curing by UV-LED
Unwinder Diameter Max. 700mm, Core 76mm
Rewinder Diameter Max. 700mm, Core 76mm
Substrates Thickness 30-400 microns
Substrates Width Max 330mm Max 288mm
Machine Dimensions (L×H×W) 3500mm × 1900mm × 1800mm
Operating Environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical Requirements Voltage: 3×380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps
Weight 3000kg 2700kg
System Components
Unwinding and Pre-treatment Units
Automatic web guide system for deviation correction, dedusting unit to remove printing material dust, and corona treatment system.
Control Systems
Mitsubishi electric control server with touch screen (imported from Japan) for label roll processing control. control server with touch screen (imported from Germany) for manual adjustment after automatic registration.
Inkjet Printing Unit
KM1024i printing heads with built-in auto wash system for extended head life. Normal working life: 2 years.
Camera Inspection System
ELSCAN scanning camera and screen for real-time printing performance monitoring. Supports narrow web applications up to 580mm width with 100×75mm field of view. Features patented "dualView" technology with 2×5 megapixel cameras for superior image quality and color representation. Includes crossbeam with manual or motorized camera positioning and comprehensive scan functions for controlled web monitoring.
Software Control
Global Inkjet Solution (GIS) software with inkjet control and main board. As the exclusive Chinese manufacturer using GIS technology, we provide English-originated software that delivers fine detail quality, robust performance, and user-friendly operation, proven by customer satisfaction.
Power and Electrical Systems
Omron power supply and Schneider electric mechanisms for reliable operation.
Core Patent Technology
This digital label finishing machine incorporates proprietary patented technologies that enable advanced digital foil stamping and varnishing capabilities without traditional plate requirements.
