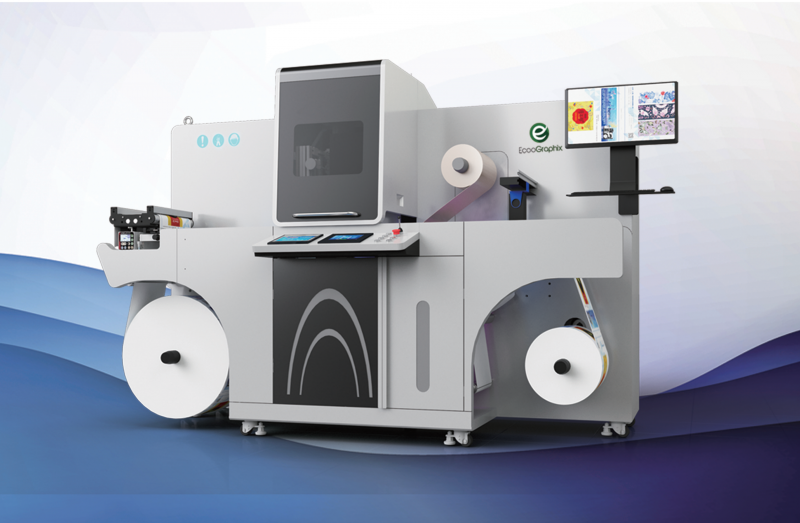

Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Specifications
Brand Name :
EcooGraphix
Model Number :
EcooSpark
Certification :
CE; ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets Per Year
Packaging Details :
Standard Exporting Wooden Box
Delivery Time :
30 DAYS
Product name :
Inkjet Digital Printer
Polymer Layer Thickness :
From 10 up to 250 Microns
Printing Speed :
6m/Min - 50m/Min(Depend on Polymer Layer Thickness
Substrates Thickness :
30-400 Micro
Substrates Width :
Max 330mm
Curing Method :
Inter UV-LED Pre-Curing/Full Curing by UV-LED
Printing Image Width :
288mm (Extendable to 330 mm)
Polymer :
Wb-Ds-Clear Polymer
Substrate :
Offset, Digital, Plastics, Laminated and coated substrates
Resolution :
360*360 Dpi, up to 1440*360 Dpi
Specification :
3500mm*1900mm*1800mm (LxHxW)
Description

Label Embellishment Machine Inkjet Digital Printer Foil Stamping And Spot UV Varnishing

Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping

Model: EcooSpark

Product Description


Introduction Of EcooSpark

EcooGraphix's newly developed EcooSpark digital printing machine realizes synergistic processes such as

digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, etc., without the need for plate making.

lt can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment thatcreates new profit points for users, and is a digital efficiency-enhancing printing machine.

Applications: Wine Labels, Cosmetic Labels, Luxury labels and so on.

Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping

Features:

-Sturdy structure (double wall panel design); Thick and thin materials, stability, mature platform
-High stability; Good material applicability; No heating required
-LED UV+water cooling roller; Suitable for ordinary cold foil; High quality-details, sharp edges:
-Less heat, higher stability; Patented technology-better detail performance
-Multi-process completed at one time; Customizable
Specification

Model: EcooSpark

Printing Technology: UV Piezo DoD-inkjet

Resolution: 360*360dpi, up to 1440*360 dpi

Printing speed: 6m/min - 50m/min(depend on polymer layer thickness)

Variable Image system: PDF, Optimized PDF, Optional barcode system

Supported image standards: PDF, PDF/VT, TIFF, JPEG, BMP & other data base files

Substrates: Offset, Digital, Plastics, Laminated and Coated Substrates

Printing image width: 288mm (extendable to 330 mm)

Polymer: WB-DS-Clear Polymer

Polymer layer thickness: From 10 up to 250 microns

Ink curing: Inter UV-LED Pre-curing/ Full curing by UV-LED

Unwinder diameter: Max. 700mm, Core 76mm

Rewinder diameter: Max. 700mm, Core 76mm

Substrates thickness: 30-400 micro

Substrates width: Max. 330mm Press with Foil station

Machine dimensions (LxHxW): 3500mm x 1900mm x 1800mm

Operating environment: Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity

Electrical requirements: Voltage: 3x380, ±5% 3 phases +G+N; Frequency: 50/60 Hz;

Current: Avg. 58.6 Amps 23KW Weight: 2800kg

Model EcooSpark
Printing Technology UV Piezo DoD-inkjet
Resolution up to 1080*360 dpi
Printing speed 6m/min - 30m/min(depend on polymer layer thickness)
Variable Image system PDF, optimized PDF, Optional barcode system
Supported image standards PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing image width 280mm (extendable to 320 mm)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 180 microns
Ink curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micro
Substrates width 330mm
Press with Foil station dimensions (LxHxW) 3500mmx1900mmx1800mm
Operating environment Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3x380, ±5% 3 phases+G+N Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production
Weight 2800kg
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Advantage

EcooSpark enhancement printing machine mainly has the following advantages:

Cost efficiency: There is no need for plate making, the setup time is shorter, and it also has the cost advantage ofundertaking end user orders.

Higher quality: High shining surface finish, can be repeatedly stacked, with variable foiling technology, etc, which canbe comparable to the traditional post-press process in the production process, and the registration accuracy is muchhigher than that of traditional printing technology. The "raise effect" or "embossing" effect is achieved by superimposedink lavers, and different heights can be stacked at the same time on the surface of the same substrate.

Environment Friendly: ln addition to the short setup time, this is also manifested in terms of simpler operation and
VDP design.

Multi-process: High turnover rate, controllable and adjustable, reduce waste, foiling, convex foiling, spot varnishreverse varnish, Braille and other processes can be completed at one time. Using a piezoelectric inkiet head, a speciadigital UV varnish"la special formulation of transparent UV ink) is sprayed onto the substrate on demand to achieve spotvarnish, and the scope and shape of the varnishes are variable. At the same time, the highlight and matte effects can beachieved in a single printing.
Regardless of whether the previous process is offset printing, gravure printing, flexographic printing or other printingEcooSpark can fully digitally realize spot varnish, cold foiling, embossing and other digital enhancement processes, withhigh efficiency, low cost, high added value and other advantages, can help enterprises quickly complete extremelyshort to medium length orders, instantly achieve the unigue visual effect of printing. In addition, the equipment can alsocooperate with traditional printing, digital printing and other post press processes to issue encounter by other processproblems, so as to find new profit growth points for printing enterprises.

Effect of different thickness of foiling line on BOPP PP PET Art Coated paper
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Effect of different type of fonts
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping
Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping

Foiling Workflow

Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping

Producing And Packaging

Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping

Label Embellishments Inkjet Digital Printer With UV Varnish And Foil Stamping

FAQ

1. What are the postpress effects achieved by this machine?
Cold foil stamping, Spot UV varnishing, 3D shining and embossing.


2. Can this model do color printing?
No. If you need a hybrid label printing machine which can do both printing and postpress printing, you can consider our other models. Please consult our sales.

3. How about the lead time and payment term?
We need 45 days to produce this machine.
Normally our payment term is 30% deposit and 60% balance before shipment and 10% after installation.

4. How about the installation and operation training?
Our senior will fly to your location to do installation and training. It takes about 2 weeks. The service is free of charge but we will need the buyer to take the round trip freight and local hotel and meal cost.

5. Can you do the sample as we required?
Yes, we can sample your artwork on your specified printing substrate and then courier to you. and also shoted the printing procedure for your reference.

6. Is the machine printing white?
No. This is not a color printing machine. It is more like a varnish-jet postpress machine.

7. Is the machine all digital?
Yes, all postpress procedures are digital, without any blanket or flexo plate.
