Specifications
Place of Origin :
China
Brand Name :
DUHM
Model Number :
WBC-5.6H-B /P(B)
MOQ :
10
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
25-30 Working Days
Payment Terms :
T/T，L/C AT SIGHT
Supply Ability :
800 SETS/DAY
After-sales Service Provided :
Free spare parts
Warranty :
1 Year
Operating Language :
English
Application :
Garage, Household
Power Source :
Electric
App-Controlled :
Yes
logo/pattern :
Silk screen printing, Laser Printing
Type :
Air Source Heat Pump
Installation :
Freestanding
Storage / Tankless :
Instant / Tankless
Housing Material :
Metal, Galvanized Steel with Powder coated
Use :
Bathroom
Product Name :
R410A Hot Water Heater
Refrigerant :
R410A
Heating Source :
Air to Water Heat Pump
Function :
Domestic Hot Water
Heating Capacity(A20/15℃,W 15/55℃) :
5.56 kW
Compressor :
Rotary
Power Supply :
220~240V/1/50Hz/
Operating Ambient Temperature :
-10°C~45°C
Hot Water Volume :
120 L/H
Description

Domestic Hot Water Function Air to Water R410A Heat Pump Water Heater Wrmepumpe 5.6kw

120 L/H Hot Water Function Air to Water Heat Pump R410A Water Heater Wrmepumpe 5.6kw
120 L/H Hot Water Function Air to Water Heat Pump R410A Water Heater Wrmepumpe 5.6kw
120 L/H Hot Water Function Air to Water Heat Pump R410A Water Heater Wrmepumpe 5.6kw

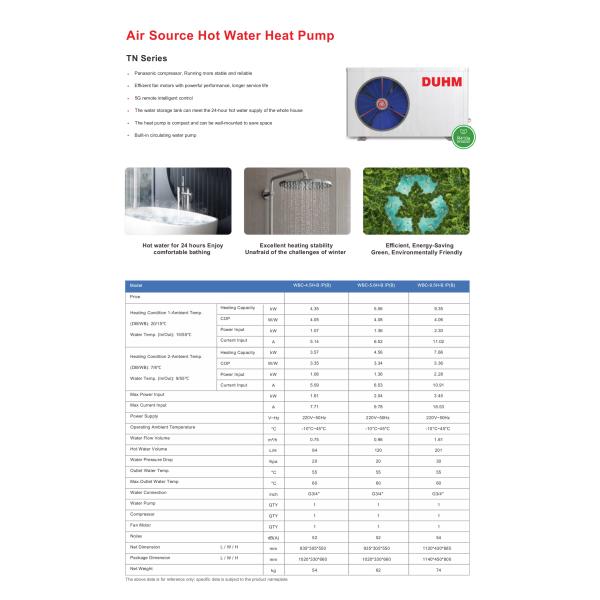

Model
WBC-4.5H-B /P(B)
WBC-5.6H-B /P(B)
WBC-9.5H-B
Heating Condition 1-Ambient Temp. (DB/WB): 20/15℃, Water Temp. (In/Out): 15/55℃
Heating capacity
kW
4.35
5.56
9.25
COP
W/W
4.05
4.08
4.08
Power input
kW
1.07
1.36
2.27
Current input
A
5.14
6.52
10.85
Heating Condition 2-Ambient Temp. (DB/WB): 7/6℃, Water Temp. (In/Out): 9/55℃
Heating capacity
kW
3.57
4.56
7.71
COP
W/W
3.35
3.34
3.2
Power input
kW
1.06
1.36
2.41
Current input
A
5.09
6.53
11.53
Max power input
kW
1.61
2.04
3.40
Max current input
A
7.71
9.78
16.27
Power supply
V~HZ
220V~50Hz
220V~50Hz
220V ~ 50Hz
Operating ambient temperature
°C
-10°C~45°C
-10°C~45°C
-10°C~45°C
Water Flow Volume
m³/h
0.75
0.96
1.59
Hot Water Volume
L/H
94
120
199
Water Pressure Drop
Kpa
20
20
40
Outlet Water Temp.
°C
55
55
55
Max.Outlet Water Temp.
°C
60
60
60
Water Connection
inch
G3/4"
G3/4"
G1"(DN25)
Water pump
qty
1
1
0
Compressor
qty
1
1
1
Fan motor
qty
1
1
1
Noise
dB(A)
52
52
52
Net dimension
L / W / H
mm
935*305*550
935*305*550
1120*430*690
Package dimension
L / W / H
mm
1020*330*660
1020*330*660
1200*480*810
Net weight
kg
54
62
77
