4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
Specifications
Brand Name :
Leiman
Model Number :
PLZJ-2A
Place of Origin :
China
MOQ :
1 set
Price :
$13500/ set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets/month
Delivery Time :
25-30 days
Packaging Details :
EXPORT STANDARD WOODEN CARTON
Product Name :
PLZJ-2A 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps
Available ID of The End Cap :
50–110 mm
Max. End Caps Output :
4 pcs/time
Speed :
45 pcs/min
Viscosity of Glue :
≤50000 cP
Glue kind :
PVC (high temp.solidified adhesive)
Power Supply :
220/50 V/Hz
Conveyor Motor Power :
2 kW
Working Air Pressure :
0.6 MPa
Pump Air Pressure :
0.45 MPa
M/C Weight :
600 kg
M/C Size (L × W × H) :
1700 × 1600 × 1600 mm
Description

PLZJ-2A 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps

Full-Auto End Cap Gluing Machine for 50–110 mm End Caps

  • The action of end caps loading and gluing can be regulated easily by computer control ,so it is coordinate and work normally.
  • This machine has the function of evenly gluing on the end cap of the filter.
  • This machine has excellent characteristics such as high efficiency and easy operation.
  • Adopts import gluing pump guarantee for accurately gluing.
  • Specially equipped the gluing tanks which make gluing much more evenly.

PLZJ-2A Full-Auto End Cap Gluing Machine for 50–110 mm End Caps

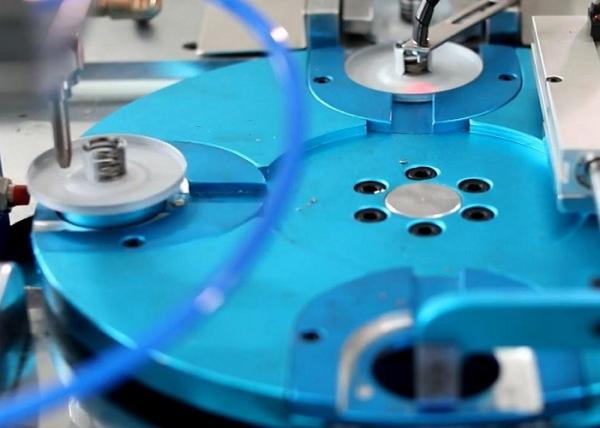

The PLZJ-2A machine is used to glue the filter element end caps.

Product Name PLZJ-2A 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps
Available ID of The End Cap 50–110 mm
Max. End Caps Output 4 pcs/time
Speed 45 pcs/min
Viscosity of Glue ≤50000 cP
Glue kind PVC (high temp.solidified adhesive)
Power Supply 220/50 V/Hz
Conveyor Motor Power 2 kW
Working Air Pressure 0.6 MPa
Pump Air Pressure 0.45 MPa
M/C Weight 600 kg
Key Words 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps

4 pcs/time End Cap Gluing Machine for 50–110 mm End Caps

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
