Oil Filter Performance Filter Testing Equipment 3.7kw
Oil Filter Performance Filter Testing Equipment 3.7kw
Specifications
Brand Name :
PLM
Model Number :
PLXN-50
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 13000/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 SETS PER 30 DAYS
Delivery Time :
20 DAYS AFTER DEPOSIT
Packaging Details :
EXPORT STANDARD WOOD CARTON
Product name :
Oil Filter Performance Tester Fuel And Oil Filter Making Machine
Test flow :
5L/ min-50L/min
Flow precision :
1grade
pressure precision :
0.5grade
Applicable industry :
Manufacturing Plant
Core components :
Engine
Warranty :
1 year
Video factory inspection :
Provided
Description

Oil Filter Performance Tester Fuel And Oil Filter Making Machine

Oil Filter Performance Tester Fuel And Oil Filter Making Machine General description

It is used to test: differential pressure/flow properties, bypass element property, by valve response pressure, filter element blocking life, filter element high-pressure resistance loss, high-oil-temperature resistance.

Oil Filter Performance Tester Fuel And Oil Filter Making Machine Features

1 Measure test flow through high-precise ellipse gear flow meter.
2 Use precise pressure gauge to measure the pressure when oil in and out.
3 The working table uses stainless steel, and the pipelines and couplers use rust preventing material.
4 To test filter’s blocking life, impurity substance is mixed evenly with impurity affix system.

5 Test criterions: JB/T6725-93, ISO4548

Oil Filter Performance Tester Fuel And Oil Filter Making Machine Specification

Test flow

 5L/ min-50L/min

Flow precision

 1grade

Temperature control

 normal temperature-100°

Main motor power

 3.7Kw

oil tank

 stainless steel, capacity:50L

Supply voltage

 380V/50HZ
M/C weight 500kg
Size of the main machine

2000*1100*1885mm /600*575*1620mm ( L*W*H)

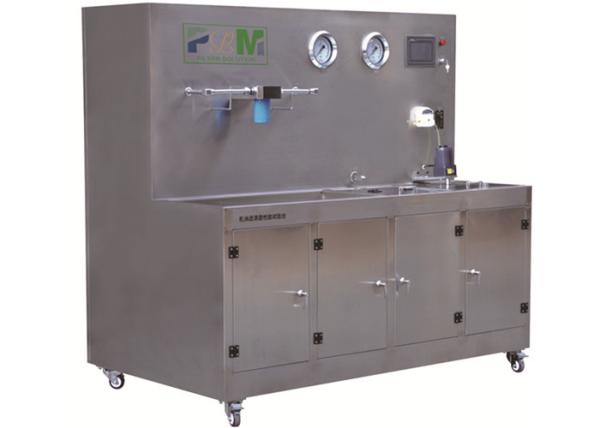

Oil Filter Performance Tester Fuel And Oil Filter Making Machine Photo

Oil Filter Performance Filter Testing Equipment 3.7kw
