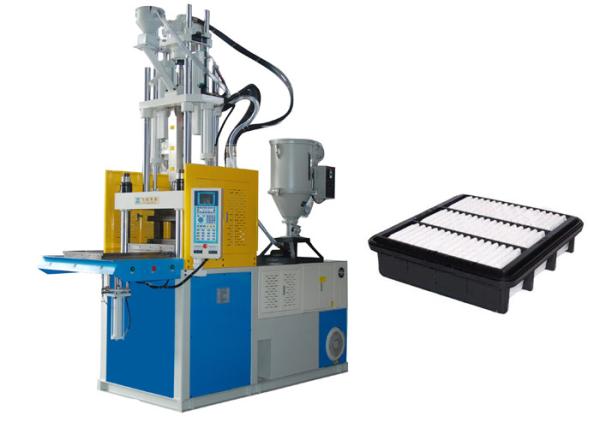

PLKS-1500 Air Filter Manufacturing Equipment 150T Blue Injection Machine
PLKS-1500 Air Filter Manufacturing Equipment 150T Blue Injection Machine
PLKS-1500 Air Filter Manufacturing Equipment 150T Blue Injection Machine
PLKS-1500 Air Filter Manufacturing Equipment 150T Blue Injection Machine
Specifications
Brand Name :
PLM
Model Number :
PLKS-1500
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD42000-48000/SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10 SETS PER MONTH
Delivery Time :
30DAYS
Packaging Details :
STANDARD EXPORT WOOD CARTON
Product name :
Full-Auto 150T Blue Injection Machine PLKS-1500 Air Filter Making Machine
Material :
Steel metal
Max hydraulic pressure :
13.7KG/c㎡
Electric power :
18.5KW
Total wattage :
31KW
Color :
blue or green
Application :
Plastic penal air filter production
Machine size :
3.3*1.3*3.5m
Machine Weight :
7.5T
Warrantee :
1year
Description

Full-Auto 150T Blue Injection Machine PLKS-1500 Air Filter Making Machine

Application: Plastic penal air filter injection making machine

Futures and advantages:

1. Firstly high-speed closing then shift to low pressure slowly closing the mold, emergency open of molds when clamping is abnormal, protect the molds.
2. With multi-stage temperature control system, accurate adjustment of multi-stage injection pressure & injection speed, non-stage adjustment of back injection pressure, suitable for plasticizing
3. High L/D ratio, widely applied in industrial engineering plastic productions.
4. Customerized service for auxiliary equipment controlled through a computer to achieve automatic production, is available.
5. Double-cylinder injection system, punch powerfully and smoothly.
6. Faults shown on-screen automatically, easy trouble clearing, and simple maintenance.

　 MODEL UNIT PLKS-1500
Injection Unit Screw Diameter mm 50 55 　 60
Maximum Injection Pressure kg/cm2 1918 1554 1284
Theoretical Shot Volume cm3 432 522 622
Maximum Shot Weight(PS) g/oz 393 475 　 566
Injection Rate cm3/sec 302 365 　 435
Screw Speed r/min 0-185　
Injection Rate mm 220
Nozzle Retraction Stroke mm 315
Number of Tenperature Control / 4
Clamping Unit Clamping Force ton 1470(150)
Space Between Tie-Bere mm 650*620
Minimum Mold Thickness mm 260(360)
Opening Stroke mm 300
Open Daylight mm 560(660)
Max.Mold Weight kg /
Ejetor Force ton 39.2(4)
Ejetor Stoke mm 110
Electric Unit Max.Hydaulic presssure kg/cm2 13.7(140)
Pump Output l/min 116
Oil Tank Capatity l 425
Electric Power kw 18.5
Berrel Heation Power kw 12.5
Total wattage kw 31
Others Machine dimension(Approx.) m 3.1*1.3*3.5
Machine Weight(Approx.) kg 2500
Shipping Measurements(LxWxH) m 　
Shipping Weight kg 7500
