Ec Backward Curved Centrifugal Blower For Yacht Cabin Indoor Air Exchange System
Ec Backward Curved Centrifugal Blower For Yacht Cabin Indoor Air Exchange System
Ec Backward Curved Centrifugal Blower For Yacht Cabin Indoor Air Exchange System
Ec Backward Curved Centrifugal Blower For Yacht Cabin Indoor Air Exchange System
Specifications
Model :
LD175C-230D3-00
Brand Name :
OFAN
Model Number :
LD175C-230D3-00
Certification :
ce ccc
Place of Origin :
china
MOQ :
1
Price :
USD1-100 PCS
Payment Terms :
D/P, D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000PCS15days
Delivery Time :
5-8 work days
Packaging Details :
45*45*24
Air Flow 2 :
375CFM
Frequency :
50/60HZ
Air Flow 1 :
630m³/h
Name :
Direct Driven Centrifugal Fan
Power :
82W
Other Name :
Hvac Fans And Blowers
Rated Current :
0.65A
Rated Speed :
3650RPM
Air Pressure :
50.8mmH2O
Rated Voltage :
230V
Operatation Voltage :
200-277V
Description

Ec Backward Curved Centrifugal Blower For Yacht Cabin Indoor Air Exchange System

Direct Driven Centrifugal Fan advantage

High efficiency, energy saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc. We have cost advantage, technological advantage and substantial experience. So you can take the same cost purchase more better goods, or spend less for the same product.

Direct Driven Centrifugal Fan Details

  1. Type of protection: IP44
  2. Insulation: Class B
  3. Bearing: Ball bearing
  4. Direction of rotation: Anticlockwise, see on the leads
  5. Mode of operation: Continuous operation(S1)
  6. Operation Temperature:-25℃~+60℃

What’s so special about an EC fan?

EC fans are generally recognised as being the latest thing in energy efficient air movement technology, but what is an EC fan and what makes it so special?

Although OFAN, the market leader in EC technology, is a China company, EC has nothing to do with the Asia Community! In this case, EC stands for Electronically Commutated which basically means it is a fan with a brushless DC motor

Direct Driven Centrifugal Fan Parameters

Name: Direct Driven Centrifugal Fan Model: LD175C-230D3-00
Rated Voltage: 230V Operatation Voltage: 200-277V
Frequency: 50/60HZ Rated Current: 0.65A
Power: 82W Rated Speed: 3650RPM
Air Flow 1: 630m³/h Air Flow 2: 375CFM
Air Pressure: 50.8mmH2O Other Name: Hvac Fans And Blowers

The reasons that make us the ideal partner:

1. Our systems expertise. As experts in advanced motor technology, electronics and aerodynamics, we provide system solutions from a single source.

2. Our spirit of invention. Our 60 engineers and technicians will develop a solution that precisely fits your needs.

3. Our lead in technology. Our OFAN EC technology is setting standards worldwide. And our lead is your competitive advantage.

4. Proximity to our customers. At 20 sales offices worldwide.

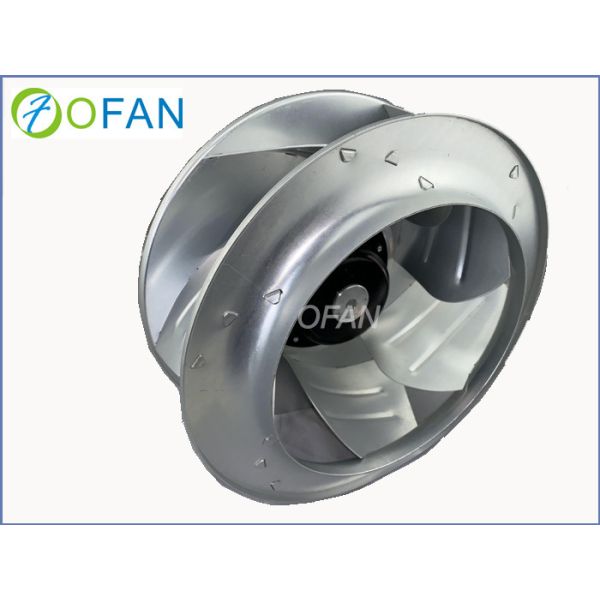

Direct Driven Centrifugal Fan Pictures

Ec Backward Curved Centrifugal Blower For Yacht Cabin Indoor Air Exchange System
