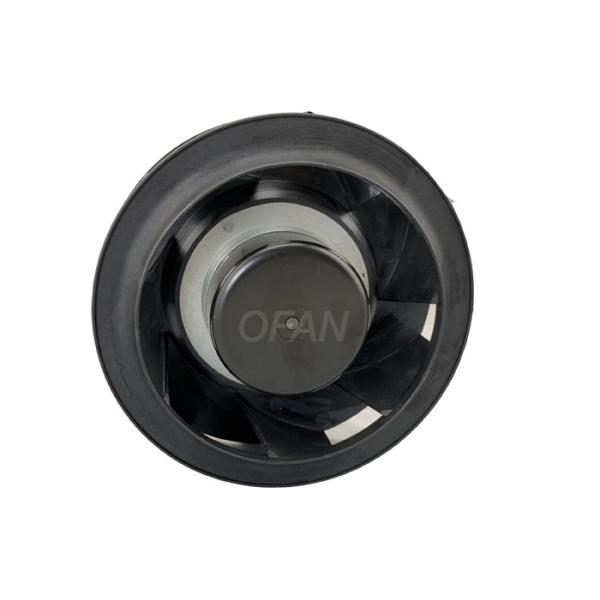

175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System
175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System
175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System
175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System
175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System
175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System
Specifications
Power input :
82W
Rated Speed :
3650RPM
Frequency :
50/60HZ
Brand Name :
OFAN
Model Number :
LD175C-230D3-00
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
10000PCS 15days
Packaging Details :
Simple packing
Current drwa :
0.65A
Air Flow :
660m³/h
Nominal voltage :
220V
Description

175mm PA66 EC Centrifugal Fan For Fresh Air Air Purification System

EC Motor – Principle
With an EC motor the electronic circuitry stands in lieu of the traditional mechanical commutation meaning the right amount is being supplied in the right direction at exactly the right time providing precise motor control

Type

Nominal voltage

(VAC)

Frequency

(HZ)

 Speed

Power imput

(w)

Current draw

(A)

Sound pressure

(dB)

Perm.amb.temp
LD175C-230D3-00 220 50/60 3650 82 0.65 68 -25~+60

Energy savings : Minimum power consumption & better efficiency than AC equivalent.
Control : 100% speed controllable, not frequency dependant. Can be set-up for constant airflow or constant pressure applications, 0-10VDC or PWM control signal.

Compact configuration, convenient installation and credible running

Pressure high, airflow stable

Little noise, energy saving and highly active

Several speed rang, adapt to both frequency conversion and voltage transformation, speed changing active

if the fans doesn't work well, what shall I do ?

If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
If after one year, we will supply you the right parts to replace at low price.

What about delivery date?

Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days
