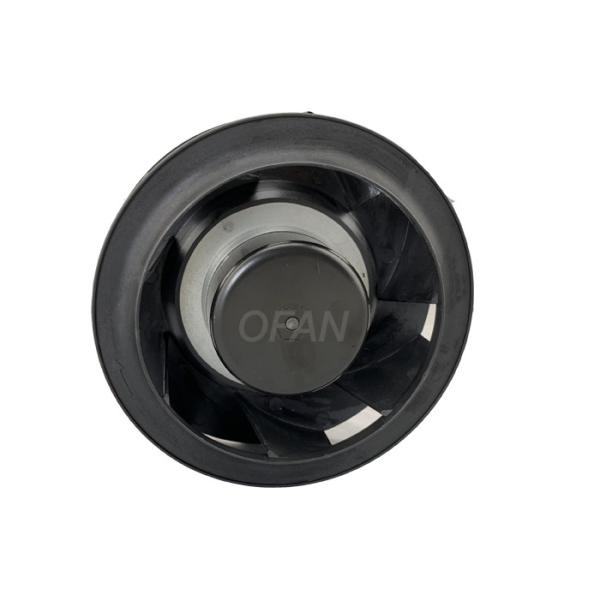

Compact Dc External Rotor Blower For Nail Salon Dust Extraction Device
Compact Dc External Rotor Blower For Nail Salon Dust Extraction Device
Specifications
Model :
LD190N-24D3-01
Rated Speed :
3000RPM
Air Flow :
580m³/h
Brand Name :
OFAN
Model Number :
LD190N-24D3-01
Certification :
CE ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000PCS
Delivery Time :
30 working days after receive the buyer's advance payment
Packaging Details :
Standard Packing
Name :
Backward Curved DC Centrifugal Fan
Operation Voltage :
16-32DC
Rated Current :
2.4A
Application :
Electronic Cabinet Cooling
Rated Voltage :
24v
Description

Compact Dc External Rotor Blower For Nail Salon Dust Extraction Device

DC Centrifugal Fan Introduction

Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only improved the technology of motor but also greatly enhance mechanical reliability of motor operation and increase the service life

2. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics

DC Centrifugal Fan Parameters

Name: Backward Curved DC Centrifugal Fan Model: LD190N-24D3-01
Rated Voltage: 24v Operation Voltage: 16-32DC
Rated Speed: 3000RPM Rated Current: 2.4A
Air Flow: 580m³/h Application: Electronic Cabinet Cooling

DC Centrifugal Fan Specifications:

  1. Direction of rotation: Anticlockwise, see on the leads
  2. Insulation Class:F
  3. Bearing: Ball bearing
  4. Protection Type: IP42
  5. Product Confirmed to Standard: LVD EN 60950-1 EMC EN 61000-6-3, EN 61000-4-2 EN 61000-4-3
  6. Operating Temperature:-25℃~+60℃
  7. Weight:1.33kg

DC Backward Curved Impellers Details

Compact Dc External Rotor Blower For Nail Salon Dust Extraction Device
