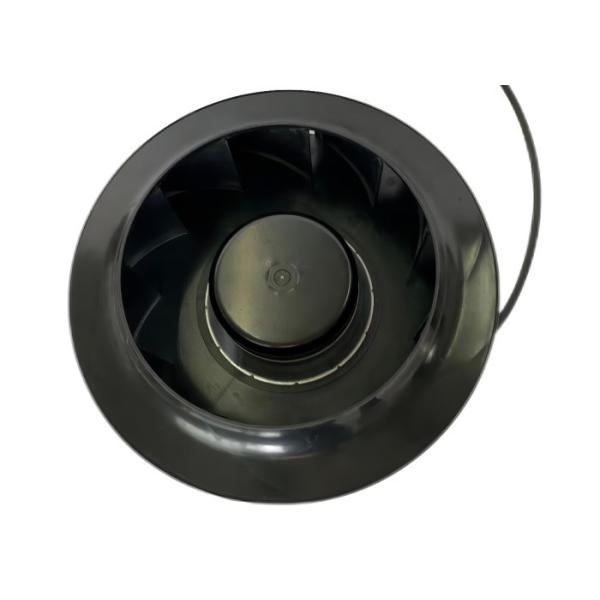

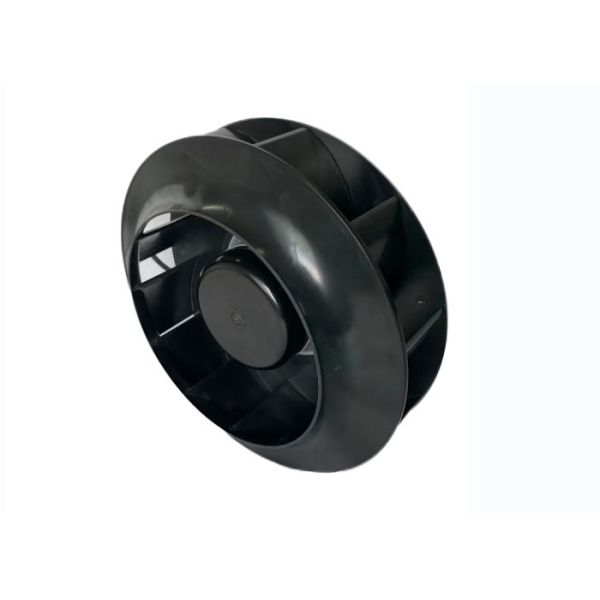

24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System
24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System
24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System
24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System
24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System
24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System
Specifications
Structure :
Compact
Rated Speed :
2600RPM
Name :
Centrifugal Industrial Fans
Air Flow :
1350m³/h
Air Pressure :
58.4mmH2O
Rated Voltage :
24v
Rated Current :
5A
Operation Voltage :
16-32DC
Brand Name :
OFAN
Model Number :
LD250N-24D3-00
Certification :
CE ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
10000PCS
Delivery Time :
30 working days after receive the buyer's advance payment
Packaging Details :
Standard Packing
Description

24V Dc External Rotor Centrifugal Blower For RV Camper Van Ventilation System

Centrifugal Industrial Fans Application :

  • Electronic cabinet cooling
  • EC fan array
  • Clean room modules
  • Heat exchangers
  • Air filtration
  • HVAC
  • Medical appliances
  • Plastic extrusion
  • Fume hoods
  • Pharmaceutical equipment
  • Semiconductor industry
  • drying systems
  • aeration applications

Centrifugal Industrial Fans Specifications:

  1. Impeller Material: Metal Sheet
  2. Technical Features: Control input 0-10VDC/PWM, tach output, Locked-rotor protection, reverse polarity, Current limited, soft start.
  3. Direction of rotation: Anticlockwise, see on the leads
  4. Insulation Class:F
  5. Bearing: Ball bearing
  6. Protection Type: IP42

Centrifugal Industrial Fans Parameters

Name: Centrifugal Industrial Fans Structure: Compact
Rated Voltage: 24v Operation Voltage: 16-32DC
Rated Speed: 2600RPM Rated Current: 5A
Air Flow: 1350m³/h Air Pressure: 58.4mmH2O
