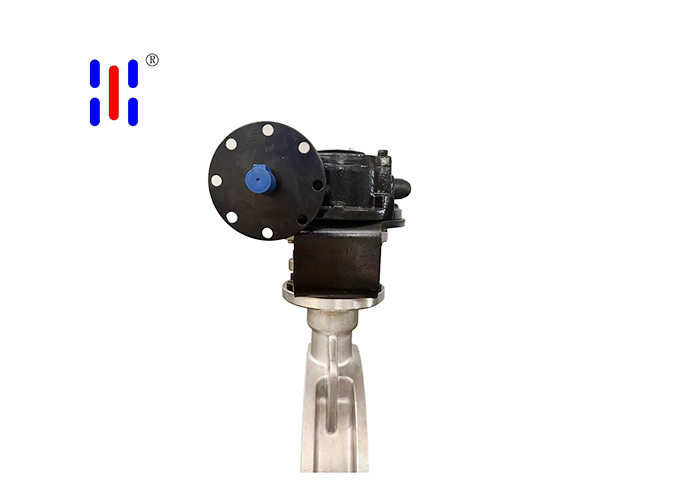

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply
Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply
Specifications
Supply Ability :
1000pcs/Mon
Design Standard :
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527
Model Number :
D373W-150LB-P
MOQ :
1
Delivery Time :
20 days
Stem packing :
PTFE,EPDM,WCB,SS,Graphite,Hard treatment(Stellite,Cr),Low leakage,Lip seal,etc.
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Size :
DN50-DN1600
Pressure :
150LB-2500LB
Price :
100USD
Operator :
Manual,Pneumatic,Hydraulic,Electric
Connection :
Wafer，flange，lug，Butt-welded
Brand Name :
YuGong
Certification :
CE,API 607,API 609，ISO,TS,EAC
Place of Origin :
China
Packaging Details :
Select the appropriate wooden crate based on the valve's design
Description

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Product Features

Fully constructed of 304 stainless steel for complete rust resistance; 12-inch large bore for unobstructed flow; precise 150LB pressure rating. The one-piece body with an integrated sealing surface ensures complete material uniformity. Leveraging the inherent rust-resistant properties of pure 304 stainless steel, it provides a highly efficient, manual, zero-leakage shut-off solution for clean, low-to-medium pressure pipelines in environments with mild corrosion and no particulate scouring.


Product Advantages

● The first and second eccentricities allow the butterfly disc to disengage from the seat as soon as it opens, while the third eccentric conical seal generates the final wedging force. This significantly reduces scraping on the sealing surfaces, ensuring that torque does not increase even after thousands of cycles.
● The self-locking characteristic of the worm gear allows the butterfly disc to remain precisely at any opening position without the need for an external brake, enabling stepless flow regulation.
● The sealing pair consists of precision-matched 304 stainless steel components with rigid all-metal engagement, eliminating seal contamination and ensuring a service life equal to that of the pipeline.


Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

ISO 15848



Product detail

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply





Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.


About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Our Workshop

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply

Triple Offset Butterfly Valve Wafer 150LB 304 SS 6 Inch for Water Supply


F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. one-year warranty toproducts.
