Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS
Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS
Specifications
Brand Name :
YuGong
Model Number :
LTD372F-150LB-R
Certification :
CE,API 607,API 609，ISO,TS,EAC
Place of Origin :
China
MOQ :
1
Price :
100USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/Mon
Delivery Time :
20 days
Packaging Details :
Select the appropriate wooden crate based on the valve's design
Body Material :
WCB,LCB,CF8,CF3,2205,2507,904L,etc.
Stem packing :
PTFE,EPDM,WCB,SS,Graphite,Hard treatment(Stellite,Cr),Low leakage,Lip seal,etc.
Size :
DN50-DN1600
Operator :
Manual,Pneumatic,Hydraulic,Electric
Fungtive Emission Testing :
ISO 15848
Pressure :
150LB-2500LB
NDT :
UT,RT,PT,MT
Description

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

Product Features

150 LB high-performance lug-type soft-seal 316 stainless steel double-offset butterfly valve, rated at 150 LB. The core configuration consists of a 316 stainless steel valve body, disc, and soft-seal seat, fully leveraging the combined advantages of its connection method, sealing performance, material, and double-offset structure.


Product Advantages

● The valve seat is equipped with high-performance soft-seal material, ensuring a tight seal that meets zero-leakage requirements. It demonstrates exceptional sealing reliability and control performance under medium-to-low pressure, ambient temperature, and mildly corrosive conditions.
● The lug-type connection is particularly suitable for end-of-line or discharge points, and also enables quick online disassembly, assembly, and maintenance of the valve.
● The valve body and disc are made of 316 stainless steel, which contains molybdenum and offers strong resistance to pitting and crevice corrosion. It is suitable for a wide range of fluids, including chloride-containing media (such as seawater and brine), weakly acidic media, steam, and oils.


Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

ISO 15848

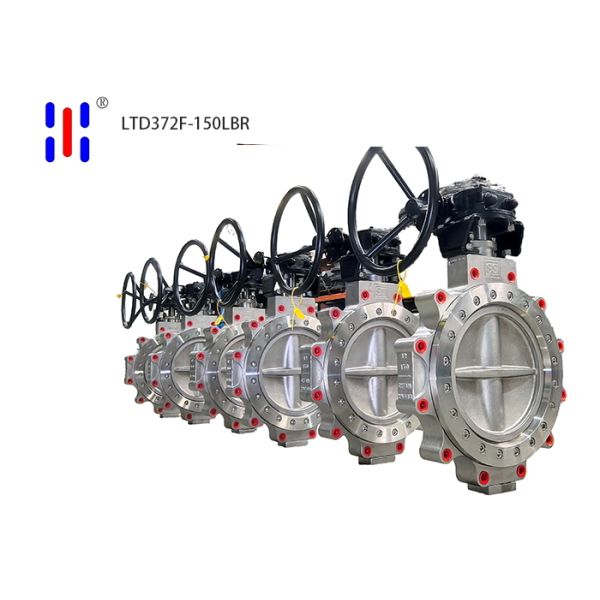

Product detail

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS


Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

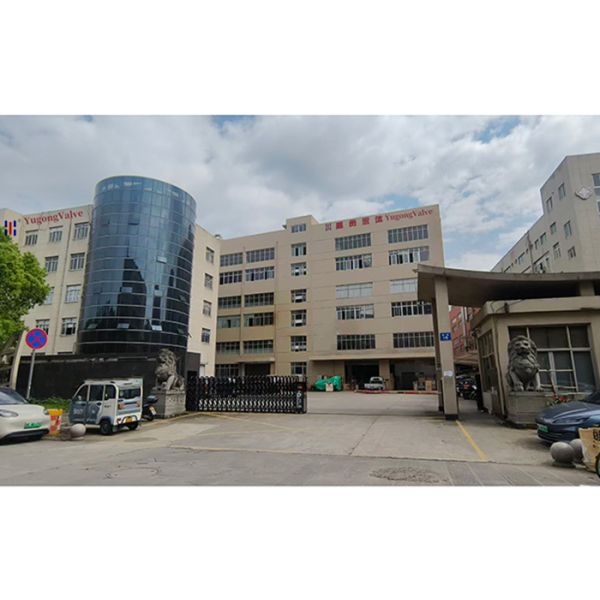

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

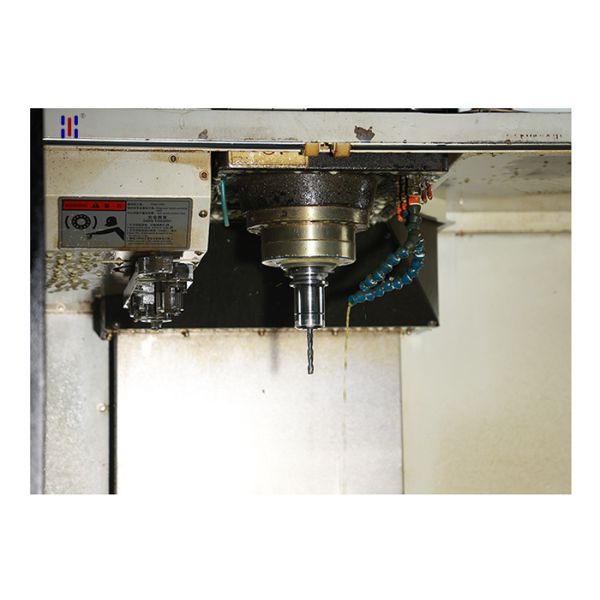

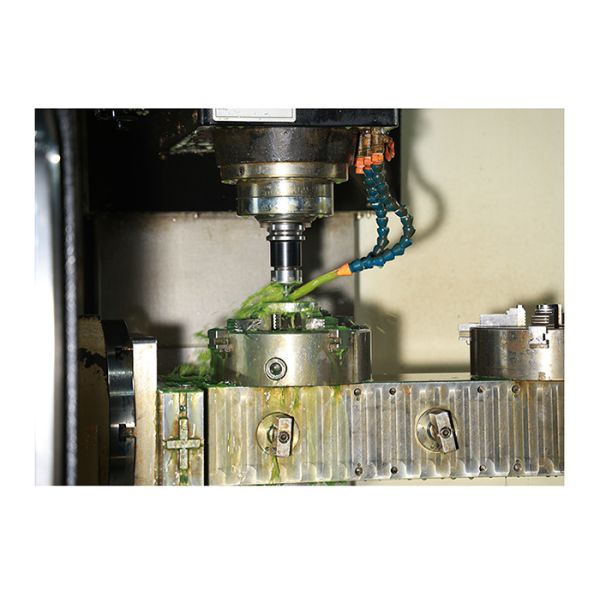

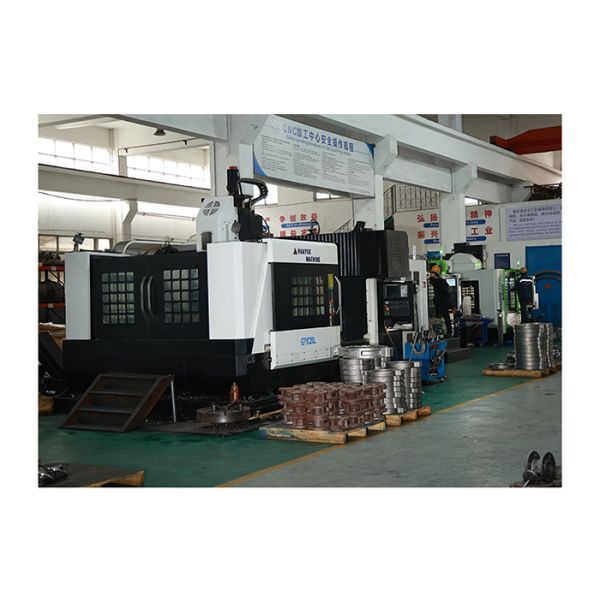

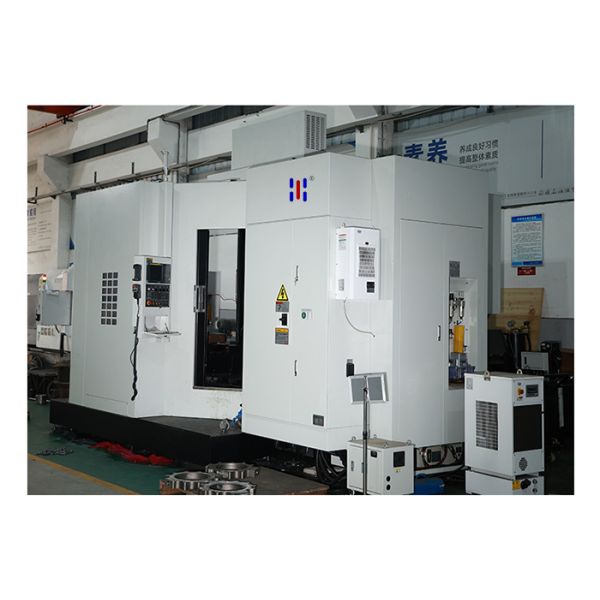

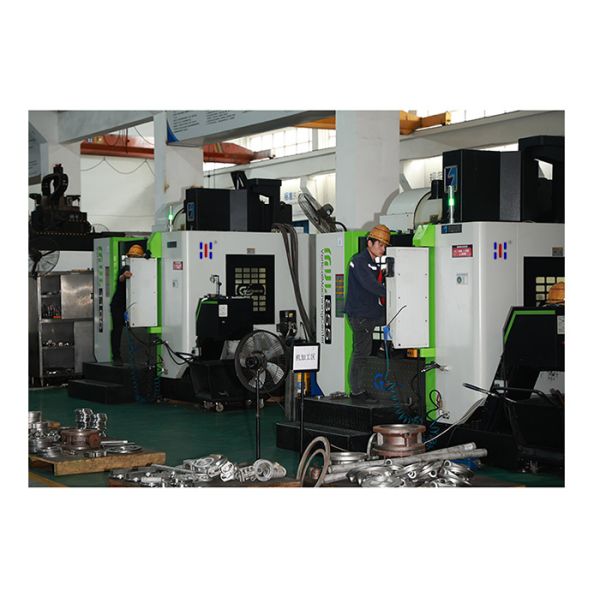

Our Workshop

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS

Triple Offset Butterfly Valve High Performance Lug Type 150LB 316 SS


F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. one-year warranty toproducts.
