NEMA23 57BLF3A70-243 24VDC 3000RPM 0.4N.M 125W Brushless DC Motor
NEMA23 57BLF3A70-243 24VDC 3000RPM 0.4N.M 125W Brushless DC Motor
Specifications
Place of Origin :
Changzhou
Brand Name :
Changyi
Certification :
GSG is9000
Model Number :
57BLF3A70-243
Voltage :
24v
Rated speed :
3000rpm
Rated torque :
0.4N.m
Power :
125w
Current :
4.6A
Weight :
0.9kg
Length :
82mm
Description

Brushless DC Motor NEMA23

57BLF3A70-243

Sp

MODEL

57BLF3A70-243

Voltage (VDC)

24

Rated speed(rpm)

3000

Rated torque(N.m)

0.4

Rated current(A)

4.6

Power(W)

125

Peak torque(N.m)

1.2

Torque constant(N.m/A)

0.056

Length(mm)

82

Weight(kg)

0.9

ecifications:

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

Figure:

NEMA23 57BLF3A70-243 24VDC 3000RPM 0.4N.M 125W Brushless DC Motor

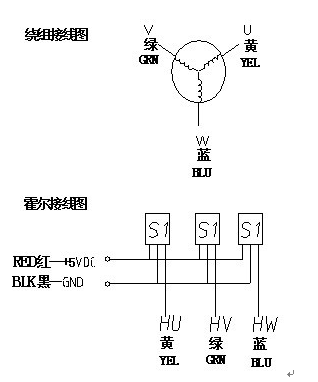

Widing Diagram:

NEMA23 57BLF3A70-243 24VDC 3000RPM 0.4N.M 125W Brushless DC Motor
