57BLY3A47-243 24V 3000RPM 34W 0.11N.M Brushless DC Motor
57BLY3A47-243 24V 3000RPM 34W 0.11N.M Brushless DC Motor
Specifications
Place of Origin :
Changzhou
Brand Name :
Changyi
Certification :
GSG is9000
Model Number :
57BLY3A47-243
Voltage :
24v
Rated speed :
3000rpm
Rated torque :
0.11N.m
Power :
34w
Length :
47mm
Weight :
0.5kg
Description

Brushless DC Motor

57BLY3A47-243

Specifications:

MODEL

57BLY3A47-243

Voltage (VDC)

24

Rated speed(rpm)

3000

Rated torque(N.m)

0.11

Rated current(A)

2.3

Power(W)

34

Peak torque(N.m)

0.38

Torque constant(N.m/A)

0.059

Length(mm)

47

Weight(kg)

0.5

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

Figure:

57BLY3A47-243 24V 3000RPM 34W 0.11N.M Brushless DC Motor

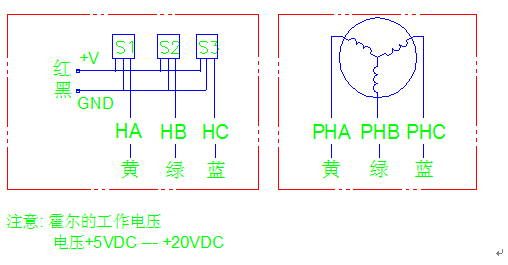

Widing Diagram:

57BLY3A47-243 24V 3000RPM 34W 0.11N.M Brushless DC Motor
