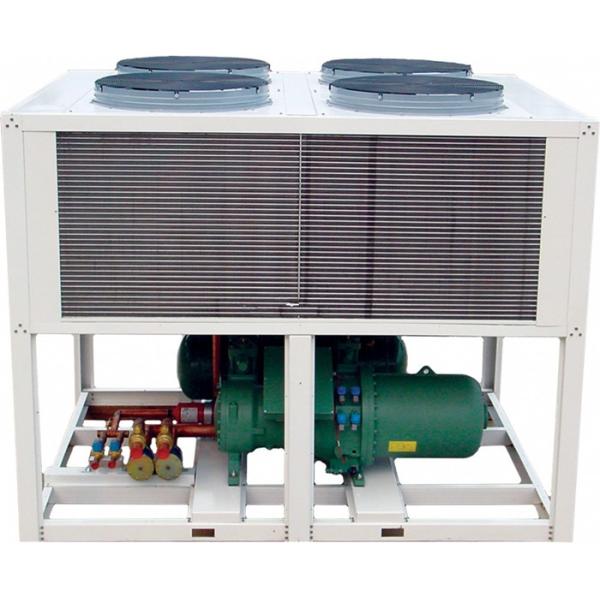

Model

Unit

MG-80AS

Nominal cooling capacity

kcal/h

171672

KW

198

Input power

KW

72

Set temp. range

3ºC~35ºC

Power supply

3PH-380V-50HZ

Refrigerant

Type

R22/R134a/407c

Type of control

Thermostatic expansion valve

Compressor

Type

Semi Hermetic screw

Power(kw)

90

Condenser

Type

Finned copper tube+low noise outer rotor fan

Cooling air flow(m3/h)

80000

Evaporator

Type

Tank with coil/shell and tube

Chilled fluid flow(m3/h)

38

Inlet and outlet pipe diameter

DN800

Dimension

Length(mm)

2500

Wide(mm)

2100

High(mm)

2400

Weight

kg

2310

Safety protection

Compressor over temperature, over current, high and low pressure, Phase sequence, phase-missing

No

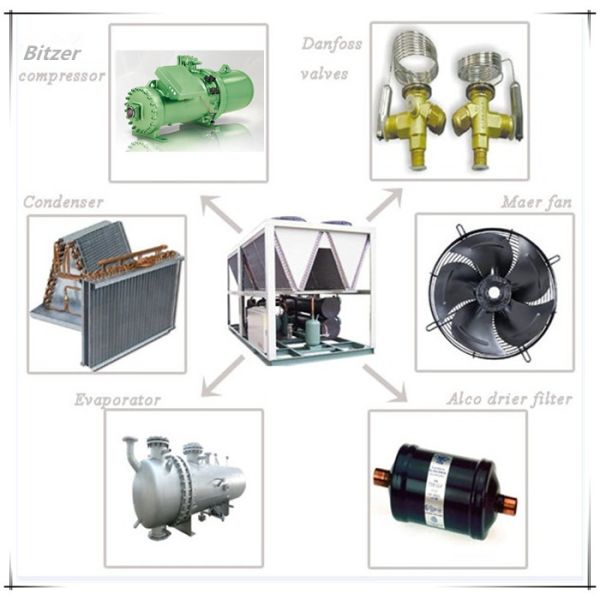

Parts

Number

Brand

Qty

Warranty (Year)

1

Semi-hermetic screw compressor

-----

Hanbell(Taiwan)

1

1

2

Expansion valve

T series/POS

Danfoss(Denmark)

1

1

3

Filter

A Series

ALCO(USA)

1

1

4

Pressure gage

DN63 Series

Fuco(Italy)

2

1

5

Shell and tube condenser(Copper Kobe, Japan)

MG-120W

MGREENBELT

1

1

6

Shell and tube Evaporator(Copper Kobe, Japan)

MG-120D

MGREENBELT

1

1

7

Pressure controller

606XMM

Saginomiya

1

1

8

Controller

Microcomputer control

Punp(USA)

1

1

9

A.C.contactor

220V

LG

1

1

10

Electrical accessory

— —

Schneider or Omron

1

1

11

Reservoir

— —

— —

1

1

12

Refrigerant

R407C

Dupont

1

3
