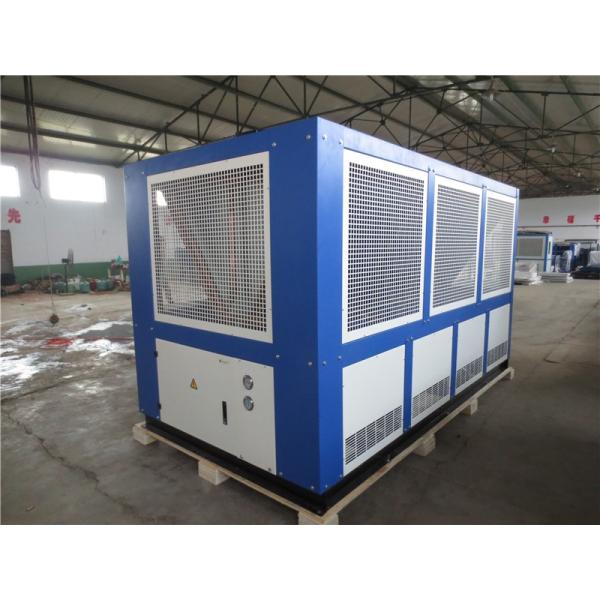

China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia
China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Certification :
CE
Model Number :
MG-80CS
Cooling capacity :
205Kw
Description

China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia

Professional water chiller solution provider since 2003!

China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia

Product Description

---Feature Of air cooled chiller in malaysia---

1.air cooled chiller in malaysia Details
  • Cooling capacity:205kw( 50ton)
  • R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know
  • Our air cooled chillers can be made for single system, or twin system 1tr to 145tr cooling capacity for different customers' requirements, the air cooled chiller with the air fans for cooling, they are easy to install and operate, there is no need for a cooling tower.
  • We are industrial chillers manufacturer, but we also welcome OEM.
China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia

---Technical Details Of air cooled chiller in malaysia---

Model MG-60C MG-80C
Cooling capacity USRT 43.2 58.3
Kcal/h 130720 176300
KW 152 205
Power supply 3Ph-380V-50HZ
Refrigerant Type R134a/r407c/R410a/R22
Controler Thermostatic expansion valve
Compressor Type Semi-hermetic screw
Power(kw) 52 68
Start Y
Capacity control 25%-50%-75%-100%
Evaporator Type Shell and tube
Water flow(m³/h) 26 35
Dia.of inlet/outlet(inch) DN80 DN80
Condenser Type Inner screw copper tube aluminum plate fins
Air cooling flow(m³/h) 60000 80000
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension L 3300 3300
W 2300 2300
H 2400 2400
Weight(kg) 2480 3200

---Technical Specification Of air cooled chiller in malaysia---

2.Technical Details
  • This series machines are widely used in electroplating, plastic, metal, chemical, electronics, food preservation, laser engraving, vacuum coating, ultrasonic cleaning, high frequency and other industries.
  • Adopt high-quality, new design scroll compressor, high performance, mute, power and durability.
  • Equipped with sophisticated electronic circuitry, its temperature precision controlled within ±1℃, just start inching power switch to the desired temperature can operate automatically when the system into acid, cooling water drying up, blower protection, pump protection, phase sequence protection, compressor protection, when protection, frost.
  • All of the air cooled chiller price components adopt the imported brand, all of the pasrt from original supplier directly, such as BITZER, COPELAND, DANFOSS, SCHNEIDER and etc.
China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia

---air cooled chiller in malaysia Detailed Picture---

  • Chiller Compressor
China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia
  • Chiller fan
China Professional Production Air Cooled Water Chiller Manufacturer In Malaysia
  • More details of air cooled chiller in malaysia
