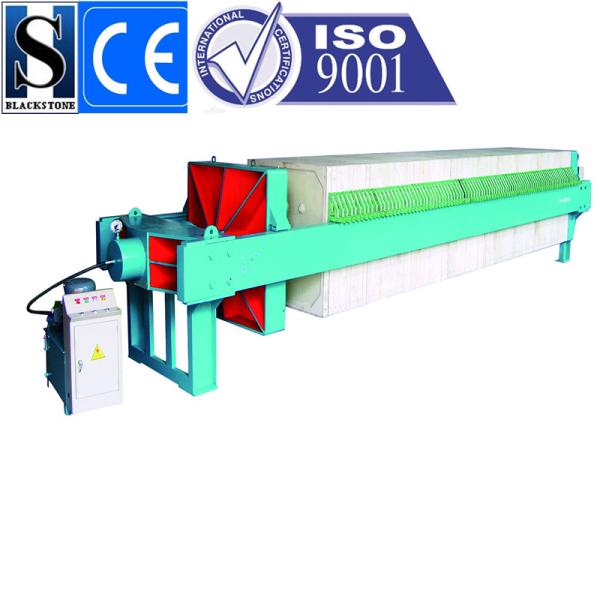

hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
hydraulic sludge filter press machine
Specifications
Place of Origin :
henan
Brand Name :
blackstone
Model Number :
XY
Certification :
CE&ISO
Description

Specifications

XY industrial filtering equipment
1.work continurous
2.ISO9001:2000
3.Antisepsis and good seal performance

XY hydraulic filter machine

Technical characteristics:

1, There are two kinds of hydraulic pressure device

One is called "hydraulic pressure locknut locking type". After hydraulic pressure, lock the piston rod with lock nut. It is composed by reciprocating hydraulic cylinder, lock nut and returned piston. In order to avoid the leakage from seal ring of piston and valve, the lock nut locks the piston rod to prevent the pressure plate moving.

The other is automatic pressurize type. Automatic pressurize type or automatic pulling plate type filter press, after press the plate frame, it is no need to lock the piston rod with lock nut. It depends on the electric control and check valve to control pressurize automatically. This could prevent the leakage from plate frame in the filtering process.

2, Hydraulic pressure type filter press is easy to operation. It saves time and labour. The pressure and the stress can appear on the pressure gauge. Operate the machine according to the operation technical requirements. The maintenance rate is low

3, Plate frame material: polypropylene, casting iron, rubber, stainless steel etc

Technology parameters

formfilter press modelfilter area(m2)size (mm)cake thickness (mm)qty of platechamber volume(L)filter pressure(Mpa)sizeweight (kg)
length (mm)width (mm)height (mm)
chamberX100/1250-30U1001250*1250303615190.54500175015504960
X120/1250-30U12043180749105420
X140/1250-30U14050209453205890
X160/1250-30U16058242358006410
X180/1250-30U18065271062106870
X200/1250-30U20072299867207330
X250/1250-30U25090373777508480

Tips:

1.RegularOverhaulis needed.

2. Pay attention to the lubrication system.

3.Some parts need regular replacement
