Monocular stereo microscope
Monocular stereo microscope
Monocular stereo microscope
Monocular stereo microscope
Monocular stereo microscope
Monocular stereo microscope
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MZ11
Certification :
ISO
Description

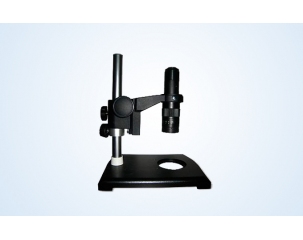

Monocular stereo microscope MZ11

Monocular stereo microscope MZ11 has the characteristics of long working distance, clear and stable image, easy to operate, etc. This stereo microscope is widely used to inspect the electronic industry production line and PCBs.

Features of MZ11 Stereo Microscope

  • Standard C-mount design, can be connected to digital camera directly
  • Can optional choose CCD camera, digital and video device and photography eyepiece.
  • MZ11-1 series equipped with outer rotating microscope body
  • MZ11-2 series equipped with inner rotating microscope body, can add round LED light.

Parameters :

(1)MZ11-1 series

Monocular stereo microscope

Monocular stereo microscope

MZ11-1A

MZ11-1B

MZ11-1C

Vertical effective movement

10mm ≤ h < 215mm

10mm ≤ h < 265mm

10mm ≤h < 240mm

Base size

260*290*55mm

300*240*25mm

240*180*25(mm) with movable stage, movement range:42*42(mm)

Illumination model

Reflected light source:12V10W halogen lamp with reflector cup (brightness adjustable)
Transmitted light source:12V10W halogen lamp (adjustable brightness)

No light source

CCD adapter

1X

Objective

Zoom range 0.7X~4.5X

Working distance

88mm

(2)MZ11-2 series

Monocular stereo microscope

Monocular stereo microscope

MZ11-2A

MZ11-2B

MZ11-2C

Vertical effective movement

10mm ≤h < 215mm

10mm ≤ h < 265mm

10mm≤ h < 240mm

Base size

260*290*55mm

300*240*25mm

240*180*25(mm) with movable stage, movement range:42*42(mm)

Illumination model

Reflected light source:12V10W halogen lamp with reflector cup ( adjustable brightness)
Transmitted light source:12V10W halogen lamp (adjustable brightness)

No light source

CCD adapter

1X

Objective

Zoom range 0.7X~4.5X

Working distance

88mm

MZ11 Stereo Microscope Optional accessories

Eyepiece

Graduated wide field eyepiece 10X(Φ18mm) 0.1mm/Div

Graduated wide field eyepiece 10X(Φ20mm) 0.1mm/Div

Eyepiece adapter

For divisional wide field eyepiece10X(Φ20mm)

Additional objective

0.3X W.D.: 249mm

0.5X W.D.: 152mm

0.75X W.D.: 113mm

1.5X W.D.: 55.5mm

2X W.D.: 40.7mm

Illumination

8W/90~265V , round LED illumination W.D.:35~200mm

Optical adapter

0.35X

0.5X

Camera

MD30/50/90/50-T CMOS camera

MC15/20/50/20-N CCD camera
