Zoom stereo microscope 7X~45X
Zoom stereo microscope 7X~45X
Zoom stereo microscope 7X~45X
Zoom stereo microscope 7X~45X
Zoom stereo microscope 7X~45X
Zoom stereo microscope 7X~45X
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MZ61
Certification :
ISO
Description

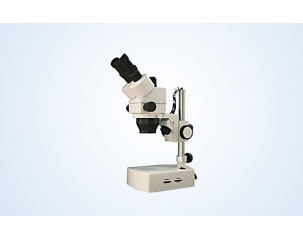

Zoom Stereo Microscope MZ61

Zoom Stereo Microscope MZ61 use horizontal hand wheel zoom and has the advantages of long working distance, clear image, wide field of view and easy to operate, etc. MZ61 stereo microscope is widely used in the fields of educational research, agriculture, forestry, geology, electronics, precision machinery industries and other sectors.


Features of MZ61 Stereo Microscope
  • Eyepiece field of view is clear and wide.
  • Continuous zoom objectives, zoom range 0.7X ~ 4.5X
  • 45°inclined tube, 360°rotatable, interpupillary distance and left lens tube diopter adjustable, interpupillary distance adjustment range: 55mm～75mm.

Parameters :

(1)MZ61-1 Series

Zoom stereo microscope 7X~45X

Zoom stereo microscope 7X~45X

Zoom stereo microscope 7X~45X

MZ61-1A

MZ61-1B

MZ61-1C

Eyepieces

WF10X (Φ 20mm)

Objective

Zoom range 0.7X~4.5X

Total magnification

7X~45X

Field of view

Φ 28.5~Φ 4.5

Working distance

88mm

Base size

240*180*25mm

300*240*25mm

240*180*25(mm) with movable stage, movement range: 42*42(mm)

Vertical effective movement

25mm ≤ h < 265mm

25mm ≤ h < 240mm

Note: Please append a letter " T" in the backside of correspond model when you select the trinocular body.

(2) MZ61-2 Series
Zoom stereo microscope 7X~45XZoom stereo microscope 7X~45X
MZ61-2MZ61-2A
EyepiecesWF10X(Φ20mm)
Vertical effective movement25mm ≤h < 265mm25mm ≤h < 130mm
ObjectiveZoom range 0.7X~4.5X
Total magnification7X~45X
Field of viewΦ28.5~Φ4.5
Working distance88mm
Base size215X160X60mm
Illumination modelReflected light source:12V10W halogen lamp with reflector cup (brightness adjustable)
Note: Please append a letter " T" in the backside of correspond model when you select the trinocular body.

(3) MZ61-3 Series
Zoom stereo microscope 7X~45XZoom stereo microscope 7X~45X
MZ61-3MZ61-3A
EyepiecesWF10X(Φ20mm)
Total magnification7X~45X
ObjectiveZoom range 0.7X~4.5X
Field of viewΦ28.5~Φ4.5
Working distance88mm
Base size215*160*60mm
Illumination modelReflected light source:12V10W halogen lamp with reflector cup (brightness adjustable) Transmitted light source:12V10W halogen lamp (adjustable brightness)
Vertical effective movement25mm≤ h < 265mm25mm≤ h < 130mm
Note: Please append a letter "T" in the backside of correspond model when you select the trinocular body.

(4) MZ61-101, 102Series
Zoom stereo microscope 7X~45XZoom stereo microscope 7X~45X
MZ61-101MZ61-102
EyepiecesWF10X(Φ20mm)
ObjectivesZoom range 0.7X~4.5X
Total magnification7X~45X
Field of viewΦ28.5~|Φ4.5
Working distance88mm
Vertical effective movement35mm≤ h < 215mm35mm≤h < 265mm ( 265mm Div)
Base size260*290*55mm300*240*25mm
Illumination modelReflected light source:12V10W halogen lamp with reflector cup (brightness adjustable) Transmitted light source:12V10W halogen lamp and adjustable brightnessReflected light source:12V10W halogen lamp with reflector cup (adjustable brightness)
Note: Please append a letter "T" in the backside of correspond model when you select the trinocular body.

MZ61 Zoom Stereo Microscope Optional Accessories
EyepieceWide field WF10X(Φ22mm)
Wide field WF15X(Φ15mm)
Wide field WF20X(Φ12mm)
Wide field WF25X(Φ9mm)
Graduated wide field SWF 10X(Φ20mm), 0.1mm/Div
Graduated wide field SWF10X(Φ22mm), 0.1mm/Div
Observation TubeTrinocular head
Additional eyepieces0.5X W.D: 137mm
0.75X W.D: 103mm
1X W.D: 88mm
1.5X W.D: 48mm
2X W.D: 29mm
Illuminator8W/90～265V, Ring LED Illuminator W.D: 35~200mm
5W,110V /220V Ring Fluorescent Illuminator
CCD adapter0.5X
1X
Digital cameraMD50 CMOS camera(5 megapixels, USB2.0 output)
MD30 CMOS camera (3 megapixels, USB2.0 output)
Camera adapterAdapter of Canon, Nikon, Olympus camera
