Insulating Oil Tester Calibration System
Insulating Oil Tester Calibration System
Specifications
Place of Origin :
Wuhan,Hubei,China
Brand Name :
Huaying
Certification :
ISO CE Alibaba
Model Number :
Huaying
Description

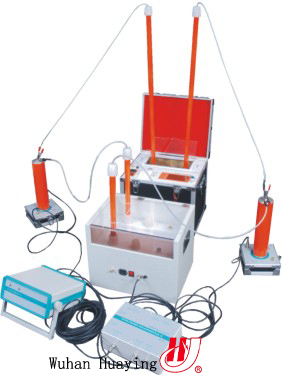

Insulating Oil Tester Calibration System

Insulating oil tester calibrator system JY-100

Insulating Oil Tester Calibration System

1. Breakdown voltage error calibration for insulating oil tester

2. High voltage measurement error calibration for insulating oil tester

3. Voltage rise rate error calibration for insulating oil tester

4. High voltage cut off time measurement for insulating oil tester

5. High voltage distortion rate measurement

Insulating Oil Tester Calibration System

1 High voltage measurement: 0-80kv/0-100kv
2 High voltage measurement error: 0.2%RDG+0.02kv
3 High voltage rise rate measurement error < 0.5%RDG+0.005kv/s
4 High voltage distortion rate measurement error <2%
5 Cut off time measurement error <0.08ms
6 Measurement high voltage divider capacity <20pf
7 Power supply: AC220V±10% 50Hz/60Hz Weight < 10kg
8 Environment temperature: 0~50°C Humidity: ≤80%RH

Insulating Oil Tester Calibration System

Insulating Oil Tester Calibration System

Insulating Oil Tester Calibration System
