Insulating Oil Tester
Insulating Oil Tester
Specifications
Description

1. Product Name: 100KV Transformer oil tester HYYJ-502A

2. Main Functions:

1 IEC60156/IS6792/BS5874/VDE0370-5
2 User-defined
3 5 minute test
4 ASTMD877
5 ASTMD1816
6 JIS C 2101-99(S)
7 Proof "A"
8 Proof "B"
3.Technical Parameters:
1 Voltage OEM for clients
2 AC220V±10% power supply input
3 Output voltage:AC 0V~100KV
4 Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
5 Max test times: 9
6 Init wait times:0~999s
7 Stir time: 0~999s
8 Wait time: 0~999s
9 Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV
10 Temperature measurement:
11 Measurement range : 0°C to 70°C, or better
12 Temperature resolution : 1°C, or better
13 Operating temperature : up to 45°C
14 Storage:100 groups
15 7 inch colorful LCD with touch pad
16 Oil test vessel temperature measurement unit
17 All the selection can be done by touch panel with color LCD.

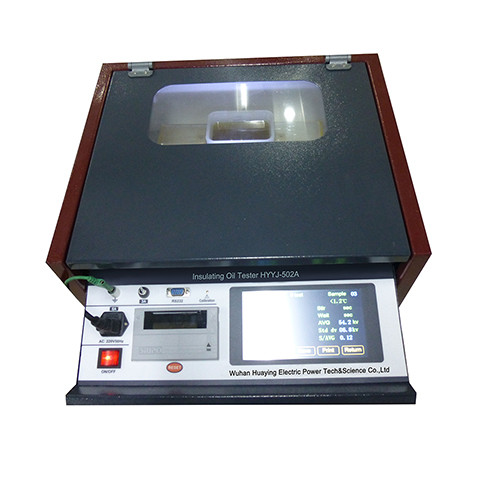

4. Product Picture:

Insulating Oil Tester
