Contact Resistance Tester 400A/600A
Contact Resistance Tester 400A/600A
Specifications
Place of Origin :
Wuhan, Hubei, China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYHL-400A/600A
Description

Contact resistance tester output DC 100A/400A/600A current to test the sample resistance. It is designed according to IEC62271. The main application of the tester is measurement of circuit breaker contact resistance. All the test results of the tester could be print by the micro-printer which is integrated in the tester. Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

2 Functions

1 Rapid test

2 Result print

3 Upload data to PC

3 Technique index

1. Measuring range: 0-1999.9 μΩ Resolution:0.1 μΩ

2. Measuring current: DC 100A/200A/400A for different selection

3. Measuring precision:0.5 %RGD+0.05%FS

4. Display mode: LCD

5. Save no more than 100 groups of data

6. RS232 computer interface

7. Rated power supply:AC220V

8. Size: 340 × 280 × 210mm3

9. Environment temperature:-10 ℃~+40 ℃ Relative humidity<80%

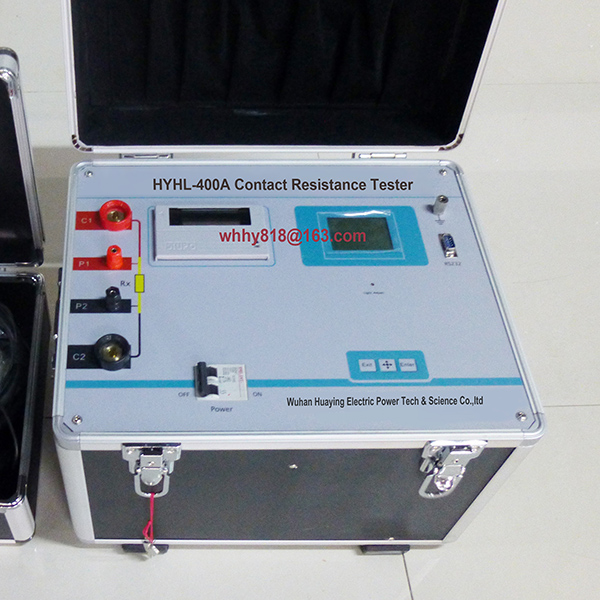

Contact resistance tester 400A and 600A panel is the same.

Contact Resistance Tester 400A/600A

Contact Resistance Tester 400A/600A

Contact Resistance Tester 400A/600A

Please download the contact resistance tester datasheet attached below.
