Contact Resistance Tester 100A/200A
Contact Resistance Tester 100A/200A
Specifications
Place of Origin :
Wuhan, Hubei, China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYHL-100A/200A
Description
Product brief introduction:
Contact resistance tester output DC 200A/100A current to test the contact resistance
It is designed according to IEC62271.
The main application of the tester is measurement of circuit breaker contact resistance.
All the test results of the tester could be print by the micro-printer which is integrated in the tester.
Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

Product technique index:

1. Measurement range: 0-1999.9 μΩ

2. Resolution:0.1 μΩ

3. Test current: DC 200A/100A for different selection

4. Maximum error< 0.5 %RDG+0.05%FS

5. Display mode: LCD

6. Save no more than 100 groups of data

7. RS232 computer interface

8. Rated power supply:AC220V

9. Size: 340 × 280 × 210mm3

10. Environment temperature:-10 ℃~+40 ℃ Relative humidity<80%

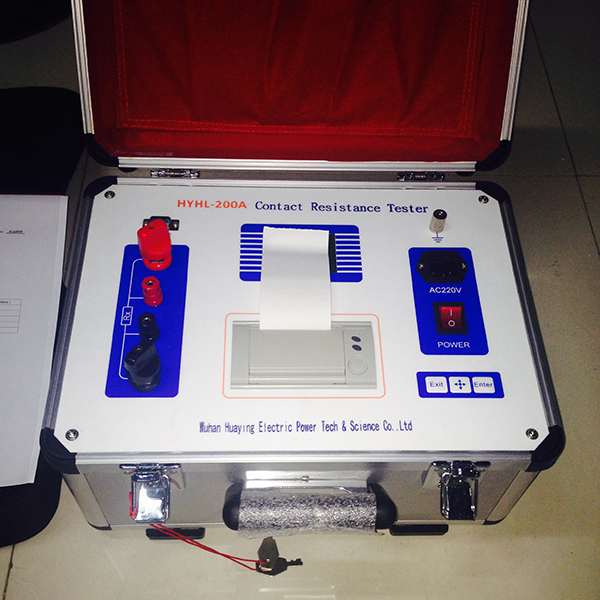

Product picture:100A 200A same panel design

Contact Resistance Tester 100A/200A

Contact Resistance Tester 100A/200A

Please download the contact resistance tester 200A manual below.
