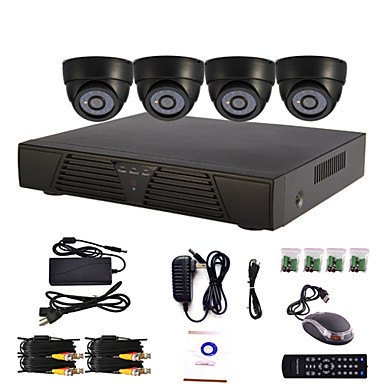

4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
4 Channel Home and Office DIY CCTV DVR System(P2P Online,4 Indoor Dome Camera)
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
589688
Description

Key Features

4Channel DVR 4 Indoor Dome IR Camera
DVR Main Processor with Hisilicon Hi3515chip
P2P DVR ,One touch online
Surveillance quality: PALD1(704576);NTSC,D1(704480)
Code ability: 100/120fps 4D1@25fps
Playback: Four channel
USB Interface: 2*USB *PTZ Control: YES
Hard Disk: 1 SATA ports (Not Including harddisk)

Specifications

Specification
Specification show
Video/Audio Input
Video Compression H.264
Video Standard PAL(625 line,50 f/s);NTSC(525 line,60 f/s)
Video Input 4 Channel
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G711A
Audio Input 1 Channel
Audio Input Interface RCA
Video/Audio Output
Live View Resolution PALD1(704×576);NTSC,D1(704×480)
Recording Resolution D1
Video Output (Channel) 1
Frame Rate (FPS) 100/120fps 4D1@25fps
Synchronous Playback (Channel) 4
Hard Disk Driver
Interface Type SATA
Single Capacity 2
Max Capacity (T) 2(Not Including Harddisk)
External Interface
Network Interface Wi-Fi
USB2.0 Interface 2
Serial Interface RS485
DVR - Additional Features
Support System Android, Windows7, iPhone iOS, Microsoft Windows XP
Language English, German, Greek, Thai, Traditional Chinese, Dutch, Russian, Français, España, Italian, Deutsch
Remote Control Yes
Mouse Control Yes
Recording Mode Alarm Recording, Schedule Recording, Motion Detection Recording, Manual Recording
Video saving Hard Disk
Backup U disk, Hard Drive
General
DVR - Power Supply 12
DVR - Power Consumption (W) 3
DVR - Operate Temperature (°C) 0-50
DVR - Humidity (%) RH 10-90%

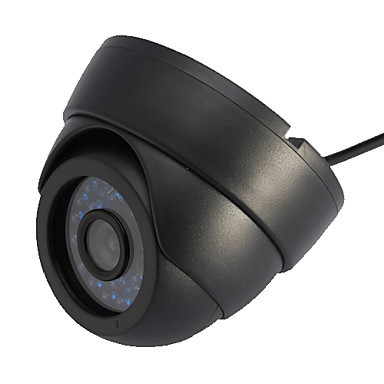

Image Sensor
Sensor Type CMOS
Sensor Size 1/4 Inch
Signal System NTSC, PAL
Horizontal Resolution 480TVLine
Lens (mm) 3.6
Viewing Angle (Degree) 70
Minimum Illumination (Lux) 0
Physical/Environment
Camera - Power Supply 12
Camera - Power Consumption (W) 1
Camera - Operate Temperature (℃) -10℃~50℃
Camera - Operating Humidity (%) RH 95%
Camera - Additional Features
Camera Type Waterproof Camera
Waterproof Yes
Water Resistant IP65
IR Distance (m) 10
S/N Ratio (dB) 48
Video Output BNC 1.0Vp-p 75Ω
White Balance Automatic
Backlight Compensation Automatic
Automatic Gain Control On/Off
Power Supply Parameters
AC Input(V) 100-230
DC Output(V) 12

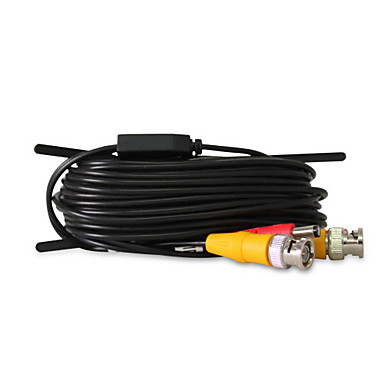

Cables Parameters
Length 60ft
Connector DC, BNC
What's in the box

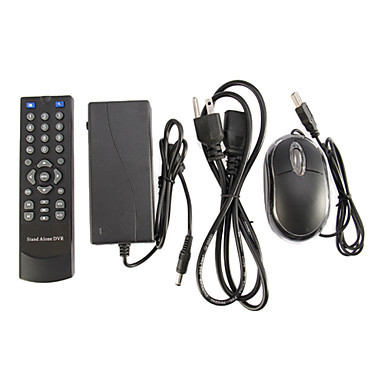

What's in the box 4 Indoor Camera, Software CD, DVR, User Manual - English, Remote Control, Mouse
