4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
4 Channel Home and Office CCTV DVR System(P2P Online,4 Outdoor Camera)
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
589684
Description

Key Features

4Channel DVR with 4 Outdoor waterproof IR Camera
DVR Main Processor with Hisilicon Hi3515chip
P2P DVR ,One touch online
Surveillance quality: PALD1(704576);NTSC,D1(704480)
Code ability: 100/120fps 4D1@25fps
Playback: Four channel
USB Interface: 2*USB *PTZ Control: YES
Hard Disk: 1 SATA ports (Not Including harddisk)

Specifications

Specification
Specification show
Video/Audio Input
Video Compression H.264
Video Standard PAL(625 line,50 f/s);NTSC(525 line,60 f/s)
Video Input 4 Channel
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G711A
Audio Input 1 Channel
Audio Input Interface RCA
Video/Audio Output
Live View Resolution PALD1(704×576);NTSC,D1(704×480)
Recording Resolution D1
Video Output (Channel) 1
Frame Rate (FPS) 100/120fps 4D1@25fps
Synchronous Playback (Channel) 4
Hard Disk Driver
Interface Type SATA
Single Capacity 2
Max Capacity (T) 2(Not Including Harddisk)

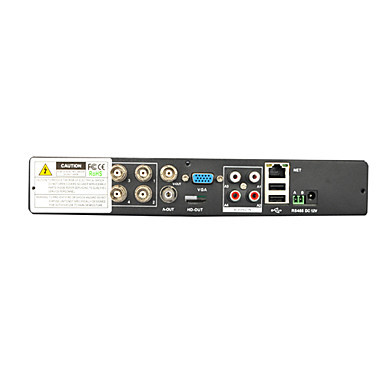

External Interface
Network Interface RJ45 10M/100M/1000M Adaptive Ethernet Interface
USB2.0 Interface 2
Serial Interface RS485
DVR - Additional Features
Support System Android, iPhone iOS, Microsoft Windows XP, Windows7
Language Italian, Deutsch, German, Thai, Traditional Chinese, Russian, España, English, Greek, Dutch, Français
Remote Control Yes
Mouse Control Yes
Recording Mode Alarm Recording, Motion Detection Recording, Schedule Recording, Manual Recording
Video saving Hard Disk
Backup U disk, Hard Drive
General
DVR - Power Supply 12
DVR - Power Consumption (W) 3
DVR - Operate Temperature (°C) 0-50
DVR - Humidity (%) RH 10-90%
Image Sensor
Sensor Type CMOS
Sensor Size 1/4 Inch
Signal System NTSC, PAL
Horizontal Resolution 480TVLine
Lens (mm) 3.6
Viewing Angle (Degree) 70
Minimum Illumination (Lux) 0
Physical/Environment
Camera - Power Supply 12
Camera - Power Consumption (W) 1
Camera - Operate Temperature (℃) -10℃~50℃
Camera - Operating Humidity (%) RH 95%
Camera - Additional Features

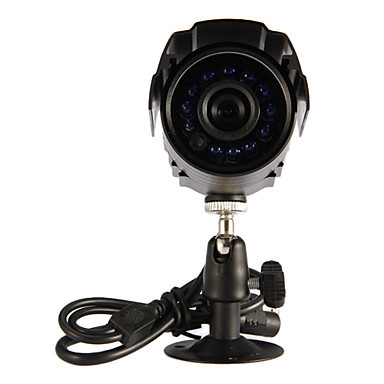

Camera Type Waterproof Camera
Waterproof Yes
Water Resistant IP65
IR Distance (m) 10
S/N Ratio (dB) 48
Video Output BNC 1.0Vp-p 75Ω
White Balance Automatic
Backlight Compensation Automatic
Automatic Gain Control On/Off
Power Supply Parameters
AC Input(V) 100-230
DC Output(V) 12
Cables Parameters
Length 60ft
Connector BNC, DC
What's in the box

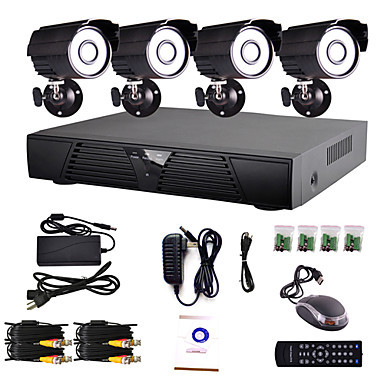

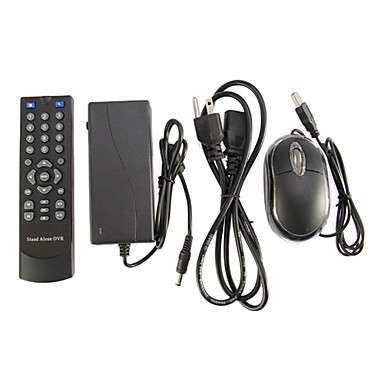

What's in the box 4 Outdoor Camera, Software CD, Remote Control, DVR, User Manual - English, Mouse
