40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
Specifications
Brand Name :
DOWELL
Model Number :
DW-1037
Place of Origin :
China
MOQ :
10000 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000 PCS Per 7 Days
Delivery Time :
7-15 Days
Tensile Strength :
≥18Mpa
Ultimate Elongation :
700%
Density :
0.94 g/cm2
Dielectric Strength :
20KV/mm
Dielectric Constant :
2.5max
Longitudinal Change :
±5%
Description

40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube

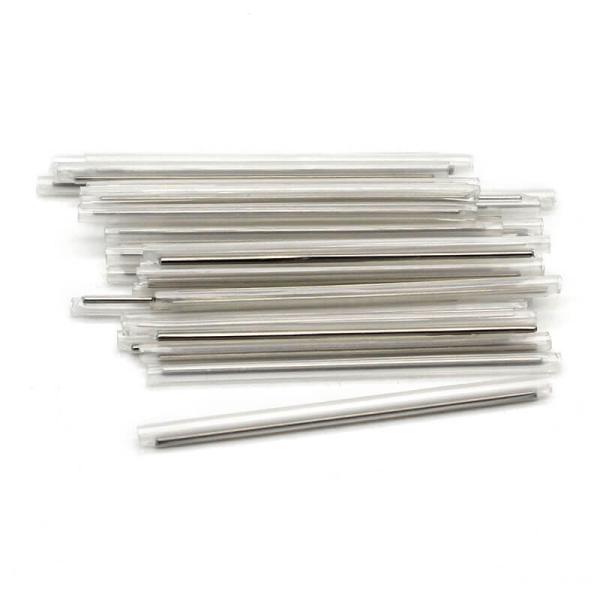

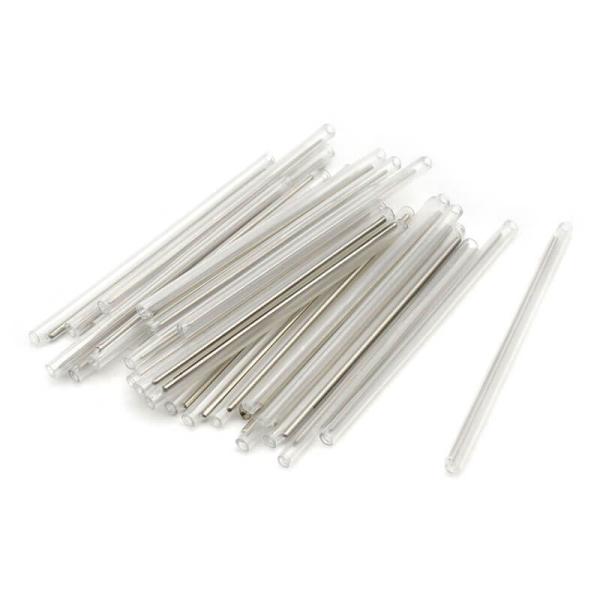

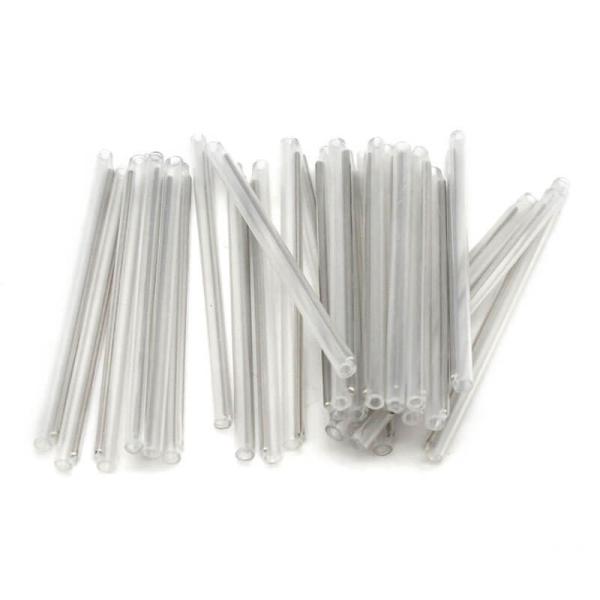

Consist of cross-linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.

Specification:

Standard color Clear
Tensile Strength ≥18Mpa
Ultimate Elongation 700%
Density 0.94 g/cm2
Dielectric Strength 20KV/mm
Dielectric Constant 2.5max
Longitudinal Change ±5%

Features:

1.1 Working Temperature: -45~ 110℃

1.2 Shrinking temperature range: 120 ℃

1.3 Standard color: Clear

1.4 Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple

40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube

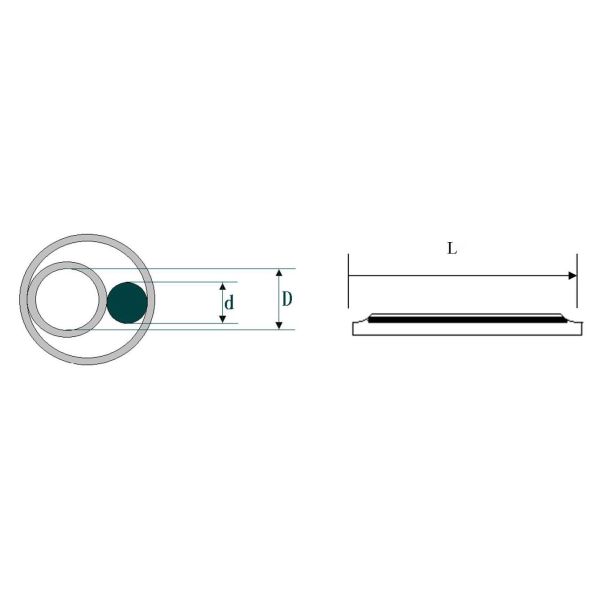

Single Fiber(mm):

Model

 Splice Protection Sleeves (After Shrinking) Fusion Tubing Steel Rod

Outer Diameter

(±0.2)

Length

(±1)

Inner Diameter

(±0.1)

Length

(±1)

Outer

Diameter

(±0.1)

Length

(±1)
DWFP-H-61x1.5x3.0 3.0 61 1.5 61 1.5 55
DWFP-H-45x1.5x3.0 3.0 45 1.5 45 1.5 40
DWFP-H-40x1.5x3.0 3.0 40 1.5 40 1.5 35
DWFP-H-25x1.5x3.0 3.0 25 1.5 25 1.5 20
DWFP-H-61x1.2x2.6 2.6 61 1.5 61 1.2 55
DWFP-H-45x1.2x2.6 2.6 45 1.5 45 1.2 40
DWFP-H-40x1.2x2.6 2.6 40 1.5 40 1.2 35
DWFP-H-25x1.2x2.6 2.6 25 1.5 25 1.2 20
DWFP-H-61x1.0x2.4 2.4 61 1.5 61 1.0 55
DWFP-H-45x1.0x2.4 2.4 45 1.5 45 1.0 40
DWFP-H-40x1.0x2.4 2.4 40 1.5 40 1.0 35
DWFP-H-25x1.0x2.4 2.4 25 1.5 25 1.0 20
DWFP-H-40x0.8x2.2 2.2 40 1.5 40 0.8 40
DWFP-H-25x0.8x2.2 2.2 25 1.5 25 0.8 25
DWFP-H-18x0.8x2.2 2.2 18 1.5 18 0.8 18
DWFP-H-40x0.5x1.3 1.3 40 0.35 40 0.5 40
DWFP-H-25x0.5x1.3 1.3 25 0.35 25 0.5 25
DWFP-H-18x0.5x1.3 1.3 18 0.35 18 0.5 18
DWFP-E-61x1.5x3.0 3.0 61 1.5 61 1.5 55
DWFP-E-45x1.5x3.0 3.0 45 1.5 45 1.5 40
DWFP-E-40x1.5x3.0 3.0 40 1.5 40 1.5 35
DWFP-E-25x1.5x3.0 3.0 25 1.5 25 1.5 20
DWFP-E-61x1.2x2.6 2.6 61 1.5 61 1.2 55
DWFP-E-45x1.2x2.6 2.6 45 1.5 45 1.2 40
DWFP-E-40x1.2x2.6 2.6 40 1.5 40 1.2 35
DWFP-E-25x1.2x2.6 2.6 25 1.5 25 1.2 20
DWFP-E-61x1.0x2.4 2.4 61 1.5 61 1.0 55
DWFP-E-45x1.0x2.4 2.4 45 1.5 45 1.0 40
DWFP-E-40x1.0x2.4 2.4 40 1.5 40 1.0 35
DWFP-E-25x1.0x2.4 2.4 25 1.5 23 1.0 20
DWFP-E-40x0.8x2.2 2.2 40 1.5 40 0.8 40
DWFP-E-25x0.8x2.2 2.2 25 1.5 25 0.8 25
DWFP-E-18x0.8x2.2 2.2 18 1.5 18 0.8 18

Notes: DWFP-H: High quality level (same as Tyco SMOUV)

DWFP-E: Economical Quality Level
