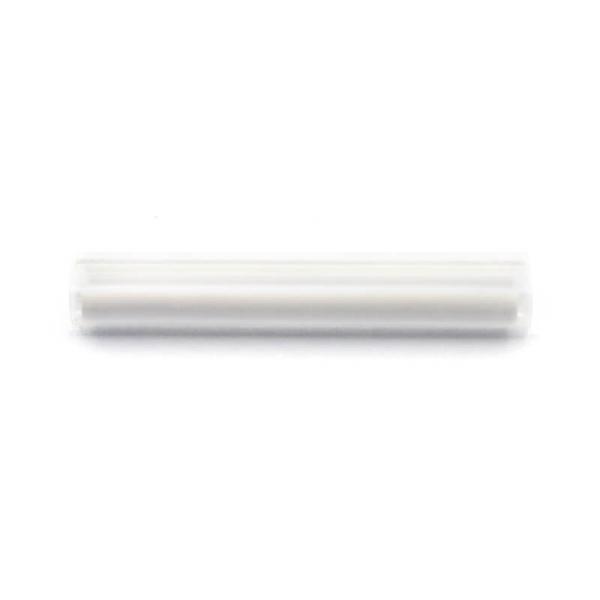

Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Specifications
Brand Name :
DOWELL
Model Number :
DW-FPS-2C
Place of Origin :
China
MOQ :
10000
Payment Terms :
Western Union,T/T
Supply Ability :
100000 Per 7 Days
Delivery Time :
7-15 Days
Working Temperature :
-45 ~ 110 ℃
Shrinking temperature range :
120 ℃
Standard color :
Clear
Tensile Strength :
≥18 Mpa
Ultimate Elongation :
700%
Density :
0.94 g/cm2
Description

Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons

Fusion splice protection sleeves are designed to meet or exceed Telcordia Standard TANWT 001380. Designed for durability and reliability, the sleeves are constructed with an inner EVA meltable adhesive tube, and a polyolefin heat shrink outer tube. The strength member within the sleeve is made of tempered stainless steel with rounded and polished edges. The tubes are clear to allow viewing the color of the fiber after splicing. The entire assembly is heat bonded to ensure that all members maintain perfect alignment during shipping, handling, and the shrinking process for the best in optical fiber protection.
Specification:
Properties Test Method Typical Data
Tensile Strength(MPa) ASTM D 2671 ≥18 Mpa
Ultimate Elongation (%) ASTM D 2671 700%
Density (g/cm2) ISO R1183D 0.94 g/cm2
Dielectric Strength (KV/mm) IEC 243 20KV/mm
Dielectric Constant IEC 243 2.5max
Longitudinal Change (%) ASTM D 2671 ±5%

Fearture:

1.1 Working Temperature : -45 ~ 110 ℃
1.2 Shrinking temperature range: 120 ℃
1.3 Standard color: Clear
1.4 Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple.
Package:
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
