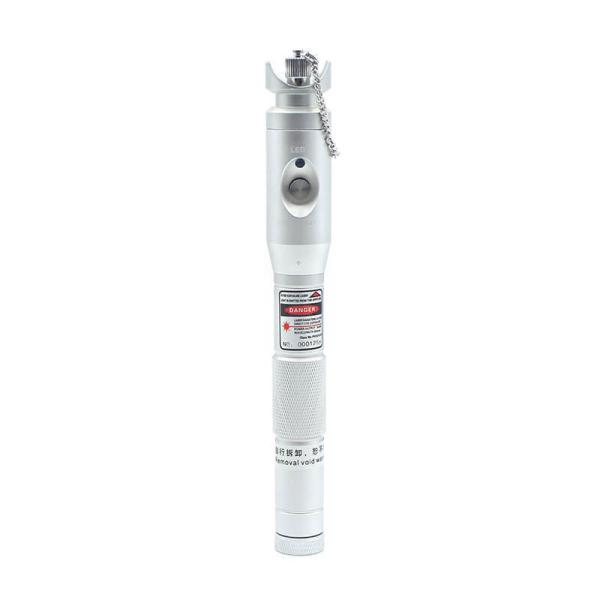

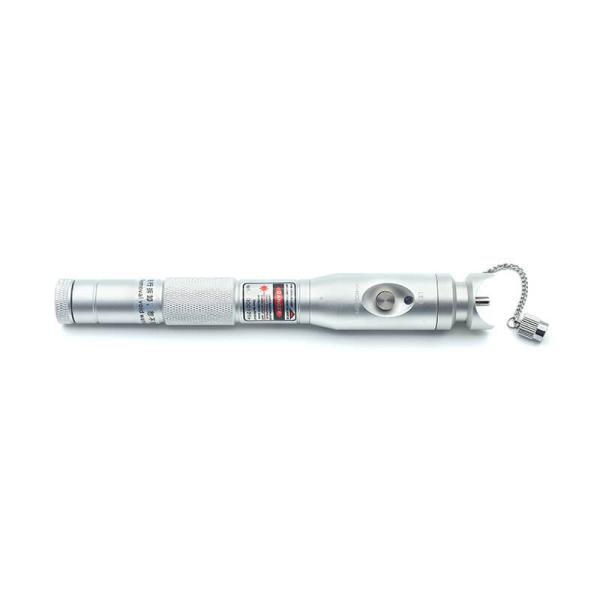

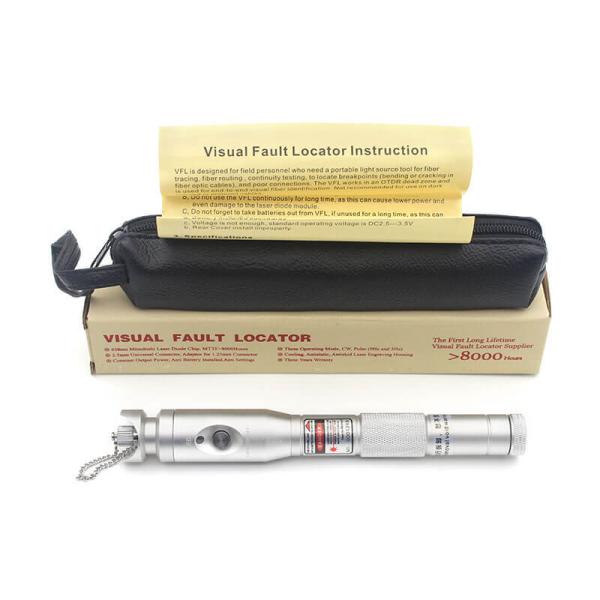

5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
5mW 10mW 20mW Visual Fault Locator with Metal Body
Specifications
Model Number :
DW-VFL-3
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
MOQ :
100 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 PCS Per 7 Days
Delivery Time :
7-15 Days
Wavelength :
650nm ± 10nm
Output optical power :
10mW 20mW
Material :
Aluminum alloy
Size :
190*25MM
Network :
FTTH
Item No. :
DW-VFL-3
Description

5mW 10mW 20mW Visual Fault Locator with Metal Body

The pen-type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. And it is the essential test tool for the FTTH project. This visual fault locator is with so many advantages, such as long working life, rugged, portable, beautiful appearance and so on. It is the best choice for the field personnel.

Specification:

Features:

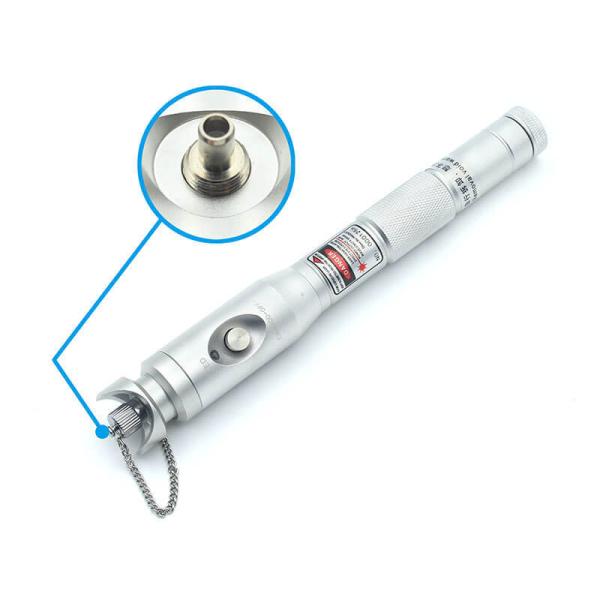

1.1 2.5mm universal connector; but for 1.25mm connectors, we can provide FC (male)-LC (Female) adaptor

1.2 Power: 5mw(>5km), 10mw (>10km), 20mw (>20km), 30mw(>30km), 40mw (>40km)
1.3 Operates either in CW or Pulsed mode with constant output power
1.4 Low battery warning
1.5 Long battery life (up to 60 hours)
1.6 Drop-resistant and dust-proof design of laser head
1.7 Laser case ground design prevents ESD damage
1.8 Portable and rugged
1.9 360° rotation protecting ring
Dimension:
5mW 10mW 20mW Visual Fault Locator with Metal Body

Application:

2.1 Find breakpoints, poor connections, bending or cracking in fiber optic cables

2.2 Find faults in an OTDR dead zone
2.3 Is used for end-to-end visual fiber identification.
2.4 Maintenance in telecom, CATV
2.5 Test Lab of optical fibers
2.6 Fiber routing and continuity checking in optical networks
2.7 Other fiber optic measurements
5mW 10mW 20mW Visual Fault Locator with Metal Body
