High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
Model Number :
DW-8023
Supply Ability :
500pcs per week
MOQ :
100 pieces
Delivery Time :
7-15 days
Material :
High Carbon Steel
Measurement system :
Imperial (Inch)
Handle Material :
PVC
Customized support :
OEM, ODM
Application :
Crimping
Color :
Bule
Description

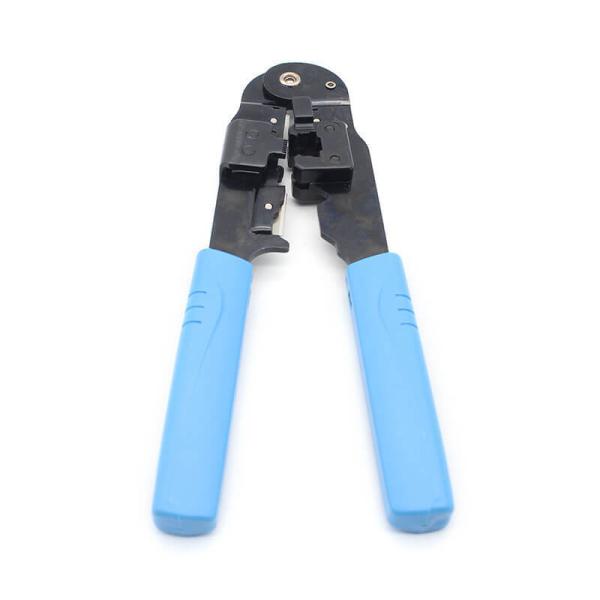

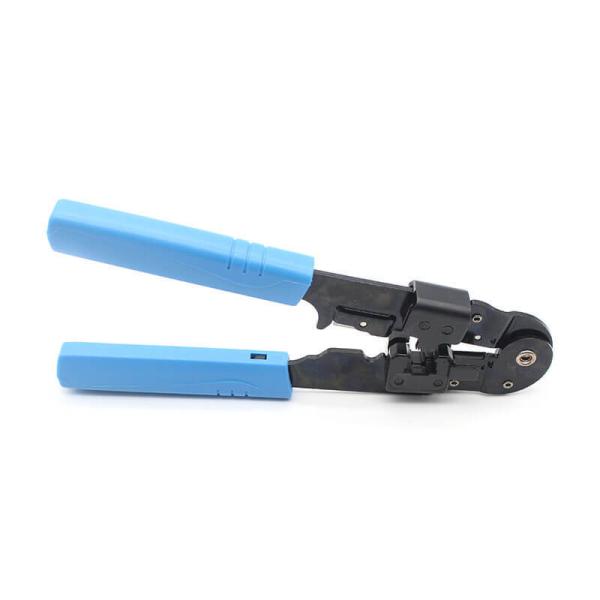

Network LAN Cable Crimping Tool For RJ11, RJ12 and RJ45 Modular Plugs
Crimping Tool enables the user to crimp RJ45 plugs to solid and stranded CAT5/5e/6/6a (CATx)
cables. The built-in wire trimmer and cable stripper allows for faster cable preparation with just one tool. Plastic
covered handles reduce fatigue and increase comfort.




High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
Technical Specifications

Applicable Cable Types:
CAT5/5e/6/6a UTP and STP
Connector Types:
6P2C (RJ11)
6P6C (RJ12)
8P8C (RJ45)
Dimensions W x D x H (in.)
2.375x1.00x7.875
Materials
All Steel Construction
Operation:
1. Cut the CATx cable to the desired length.
2. Insert an end of the CATx cable through the cable stripper until it reaches the stop. As you squeeze the tool, rotate the tool approx. 90 degrees (1/4 rotation) around the cable to cut through the cable insulation.
3. Pull back on the tool (holding cable perpendicular to the tool) to remove the insulation and expose the 4 twisted pairs.
4. Untwist the wires and fan them out individually. Arrange the wires into the correct color scheme. Note that each of the wires is either a solid color, or a white wire with a colored stripe. (either 568A, or 568B).
5. Flatten the wires in their correct order, and use the built-in wire trimmer to trim them evenly across the top. It is best to trim the wires to about 1/2” in length.
6. While holding the wires flat between your thumb and forefinger, insert the wires into the RJ45 connector, so each wire is in its own slot. Push the wire into the RJ45, so all 8 conductors touch the end of the connector. The insulation jacket should extend beyond the crimp point of the RJ45
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
7. Insert the RJ45 into the crimp tool aligned to the slotted jaw and squeeze the tool firmly.
High Carbon Steel RJ11 RJ12 RJ45 Crimping Tool 7.875 Inch
8. The RJ45 should be firmly crimped to the CATx insulation. It is necessary that the wiring scheme be repeated identically on each end of the wire.
9. Testing each termination with a CAT5 wire tester (NTI PN TESTER-CABLE-CAT5 for example-sold separately) will insure that your wire terminations were completed successfully for flawless use of the new cable.
