Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
Specifications
Model Number :
DW-OFI4
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
Price :
$88.00/pieces 1-99 pieces
MOQ :
5 pieces
Description

Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function

Fiber optic identification instrument is a new comprehensive test instrument newly developed by our company, which not only has the function of conventional fiber optic identification instrument to carry out nondestructive fiber optic identification detection work in any position of single-mode and multimode fiber, but also has the optical power module and red light visual fault location function necessary for fiber optic link construction and maintenance detection, which is a high-performance tester in current fiber optic network maintenance detection.

Specification:

Identifier module
Wavelength range(nm) 800～1700
Probe type InGaAs

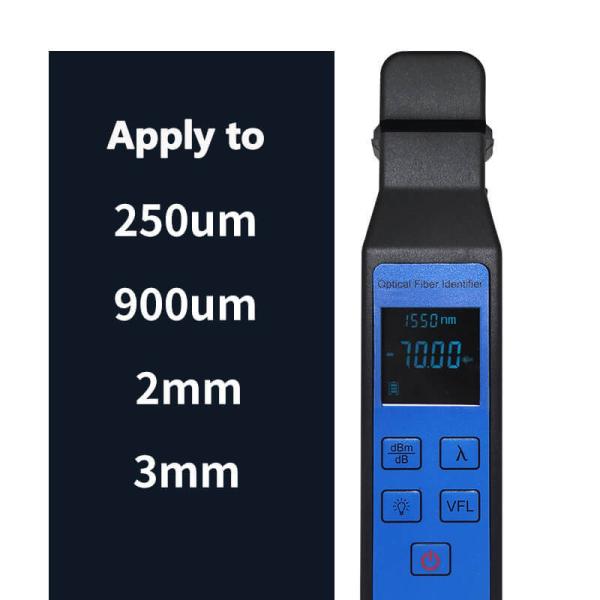

Adapter type(mm) 250um,900um,2mm,3mm
Modulation frequency(Hz) CW,270,1K,2K

Optical fiber signal display detection range(dBm)

 +13～-50
Signal direction detection range(dBm)Typical Value +13～-35
Signal frequency indication(Hz) 270,1K,2K
Signal frequency detection range(dBm)Typical Value +13～-30
Standard OPM module
Test wavelength(nm) 850,1300,1310,1490,1550,1625
Power test range(dBm) +26～-50
Unit dBm,dB,xW
Resolution ratio(dB) 0.01
Uncertainty(dB) ≤0.5
Test interface Φ2.5mm universal interface
VFL module
Wavelength (nm) 650±10
Output power (mW) ≥10
Test interface Φ2.5mm universal interface
Others
Display screen Color-LCD
Power supply 2*1.5V AA battery
Operating temperature (℃) -20～+60
Storage temperature (℃) -30～+70
Dimension(mm)without switch pull button 220*38*28
Weight (g) without batteries 145

Features:

1.1 Color screen display

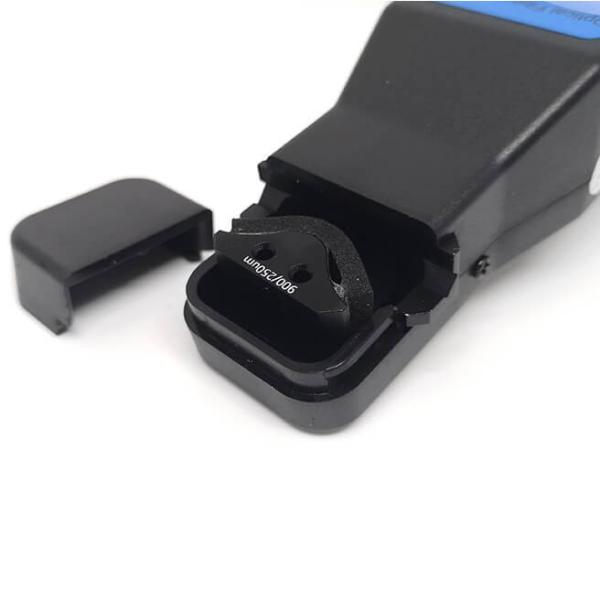

1.2 Metal structure 4-in-1 test fixture (can detect 250/900um and 2 to 3mm of various optical fibers)

1.3 With online test to identify power direction, frequency detection function

1.4 Low insertion loss, test dynamic range

1.5 With ordinary power meter function (including frequency detection)

1.6 With VFL function

1.7 Low battery prompt

Package:

Color Screen Display 4-in-1 Optical Fiber Identifier With VFL function
