Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
Specifications
Brand Name :
SANROCK
Model Number :
SRC180
Certification :
CE ISO 9001:2015
Place of Origin :
Zhejiang, China
MOQ :
1Set/Sets per Month
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000Set/Sets per Month
Delivery Time :
18work days
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product name :
hydraulic core drilling rig
Name :
Core Drilling Machine
Application :
coring machine,Gelogical Prospecting,
Power type :
Diesel
Drilling Depth :
180m
Drilling diameter :
75-220mm
Matching power: :
13.2kw
Dimension(l*w*h) :
2400*800*1400mm
Weight :
750KG
Lifting Force :
60K.N
Max.Torque :
980n.M
Thrust (K.N) :
40K.N
Lifting speed head :
0.35-2.23m/min
Rated Load :
180ton
Type :
Core Drilling Rig
Usage :
Water Well,Coal,water well.core sample
Feature :
Light Weight,High Drilling Efficiency,portable,geological coring machine
Description

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling MachineDiamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

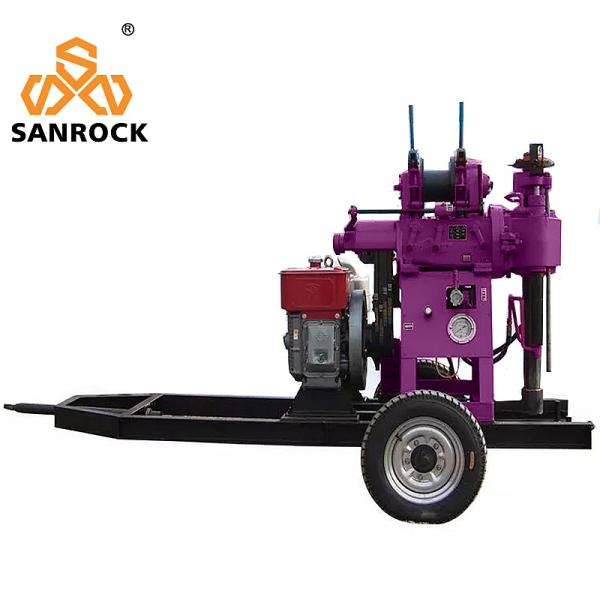

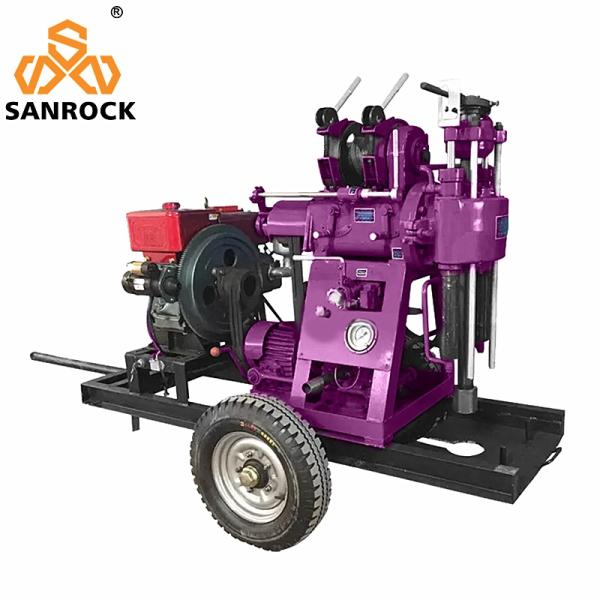

Portable Exploration Core Drilling Rig
Designed for efficient geological sampling and mineral exploration, this lightweight core drilling rig integrates portability with high performance. Featuring a compact, ergonomic design, it is ideal for field operations in remote or confined environments. Equipped with a high-torque, low-noise motor and durable diamond core bits, it ensures precise and fast penetration through rock, soil, or concrete layers. The modular structure allows quick assembly and disassembly.
Suitable for shallow-to-moderate depth sampling (up to 180meters), Built with corrosion-resistant alloys and foldable components, this rig prioritizes user convenience.

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Products Description

Product Name: Core Drilling Rig
Model:SRC180
Drilling depth: 180m
Open hole dia:220mm
End hole dia:75mm
Drill rod dia:42-60mm
Drill angle:90-75°
Matching power:13.2kw
Weight without power :620/750kg
Dimensions :2400*800*1400mm
Speed :130/300/480/730/830/1045 r/min
Stroke :450mm
Max.torque :980N.m
Thrust :40k.N
Lifting force :60K.N
Single rope lift force :2100kg
Lifting speed head :0.35-2.23m/min
Rope dia:D9.3mm
Roll capacity :27m
Rated load :18ton
Height:6.5m
Displacement :95L/min
Max.pressure :1.2MPa
Times :93per min
Inlet hose dia:51mm
Outlet hose dia:32mm

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling MachineDiamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling MachineDiamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Company Profile

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
