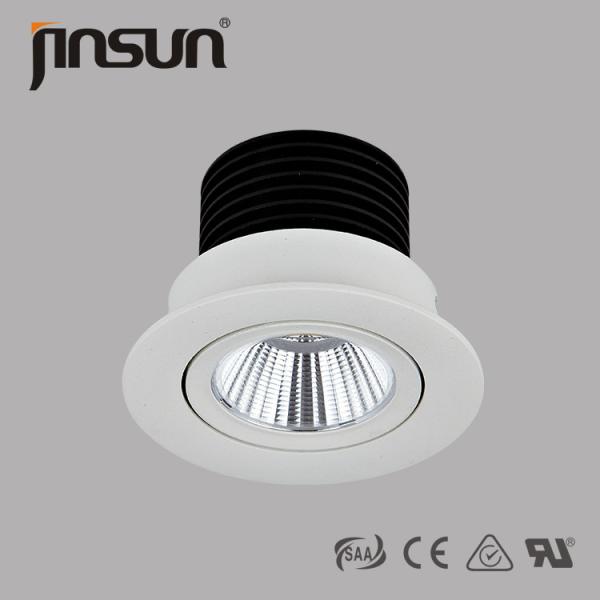

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95
2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95
Specifications
Place of Origin :
China
Brand Name :
Jinsun
Certification :
CE RoHS SAA TUV UL
Model Number :
D1019A
Warranty(Years): :
3
Color Temperature(CCT): :
3000K/4000K/5000K
Cutout Size: :
70mm
Lamp Luminous Efficiency(lm/w): :
80
Working Temperature(℃): :
-20℃-40℃
Beam Angle: :
15º/25º/38º/60º
LED Light Source: :
CITIZEN COB
IP Rating: :
40
Dimension: :
80*H60mm
MOQ :
1Pcs
Packaging Details :
Standard Packaging
Delivery Time :
10-20days
Payment Terms :
T/T(30% deposit).Western Union
Supply Ability :
40,0000 pcs each month
Input Voltage(V) :
AC100-240V
Lamp Luminous Flux(lm) :
500LM
Lamp Luminous Efficiency(lm/w) :
75LM/W
CRI (Ra>) :
82Ra
Working Lifetime(Hour) :
50000hours
Install Style :
Downlights
Switch Type :
Remote Control
Description

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Our Product Feature.

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan50000

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Item No.:

D1019A

Power:

7W

Beam angle

15º/25º/38º/60º

Led light source:

Citizen cob/Bridgelux cob

Luminous Flux:

500LM

Housing:

6063 Aluminum

CCT:

3000K/4000K/5000K

CRI:

≥82

PF:

≥0.90

IP Rating:

IP40

Lifespan:

50000Hours

Warranty:

3years

Non-dimmable and Dimmable for option,0/1~10V,DALI

Global patent Heatsink No.:ZL201310030769.3

Wattage

Cutout Size/mm

Height/mm

Surface Size/mm

Beam Angle

3W

￠65

50

￠75

15°/25°/38°/60°

3W

￠70

50

￠80

15°/25°/38°/60°

3W

￠75

50

￠85

15°/25°/38°/60°

5W

￠65

60

￠75

15°/25°/38°/60°

5W

￠70

60

￠80

15°/25°/38°/60°

5W

￠75

60

￠85

15°/25°/38°/60°

7W

￠65

60

￠75

15°/25°/38°/60°

7W

￠70

60

￠80

15°/25°/38°/60°

7W

￠75

60

￠85

15°/25°/38°/60°

10W

￠65

75

￠75

15°/25°/38°/60°

10W

￠70

75

￠80

15°/25°/38°/60°

10W

￠75

75

￠85

15°/25°/38°/60°

20W

￠125

90

￠138

15°/24°/40°/60°

20W

￠125

70

￠138

15°/24°/40°

20W

￠150

80

￠160

15°/24°/40°

30W

￠125

110

￠138

15°/24°/40°/60°

30W

￠125

80

￠138

15°/24°/40°

30W

￠150

95

￠160

15°/24°/40°

40W

￠125

100

￠138

15°/24°/40°

40W

￠150

110

￠160

15°/24°/40°

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

The Heatsink we instented on honeycomb radiator structure

structure

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

*Jingsen led adopt Citizen. Bridgelux&Cree .and other world first class Led

manufacturer for strategic cooperation,become a very cost-effective and

competitive commercial lighting brand.

*Providing professional OEM and ODM services.

* About driver we adopt Xiezhen,Meanwell,Tridonic manufacturer as

cooperation.

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

The Test Report:Including Color Temperature ntegreting sphere,spectruem

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Application View.

Our product Led cob down light suitable for High-end stores.chain stores,

luxury malls,shopping mall and other commercial establishment lighting.

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Certificate

High lumen high quality Led cob down light . track light with CE,RoHS,

SAA certificate

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Our Company View.

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Our Company History

With many years experience in LED light , we believe we will not let you down.

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Our Customer

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

2700K-6500K Color Temperature(CCT) With SMD COB Led Downlight RF>0.95

Trade Terms.
